CRL Brushed Bronze Square 180° Glass-to-Glass Clamp for Shower

• Joins two glass panels at 180 degrees for inline, all-glass installations
• Solid brass construction for strength and corrosion resistance
• Designed for monolithic tempered glass (3/8"–1/2" / 10–12 mm)
• Low-profile square clamps create an “all-glass” aesthetic compared to U-channel
• Glass fabrication required to accommodate clamps (see specifications)

CRL Square 180 Degree Glass-to-Glass Clamp — SKU: SGC180BBRZ

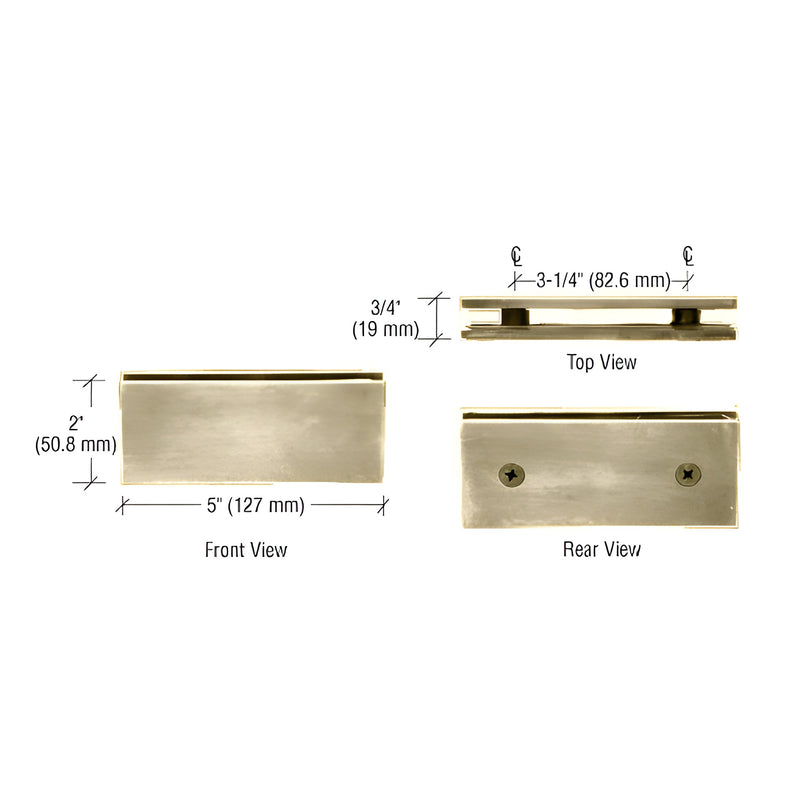

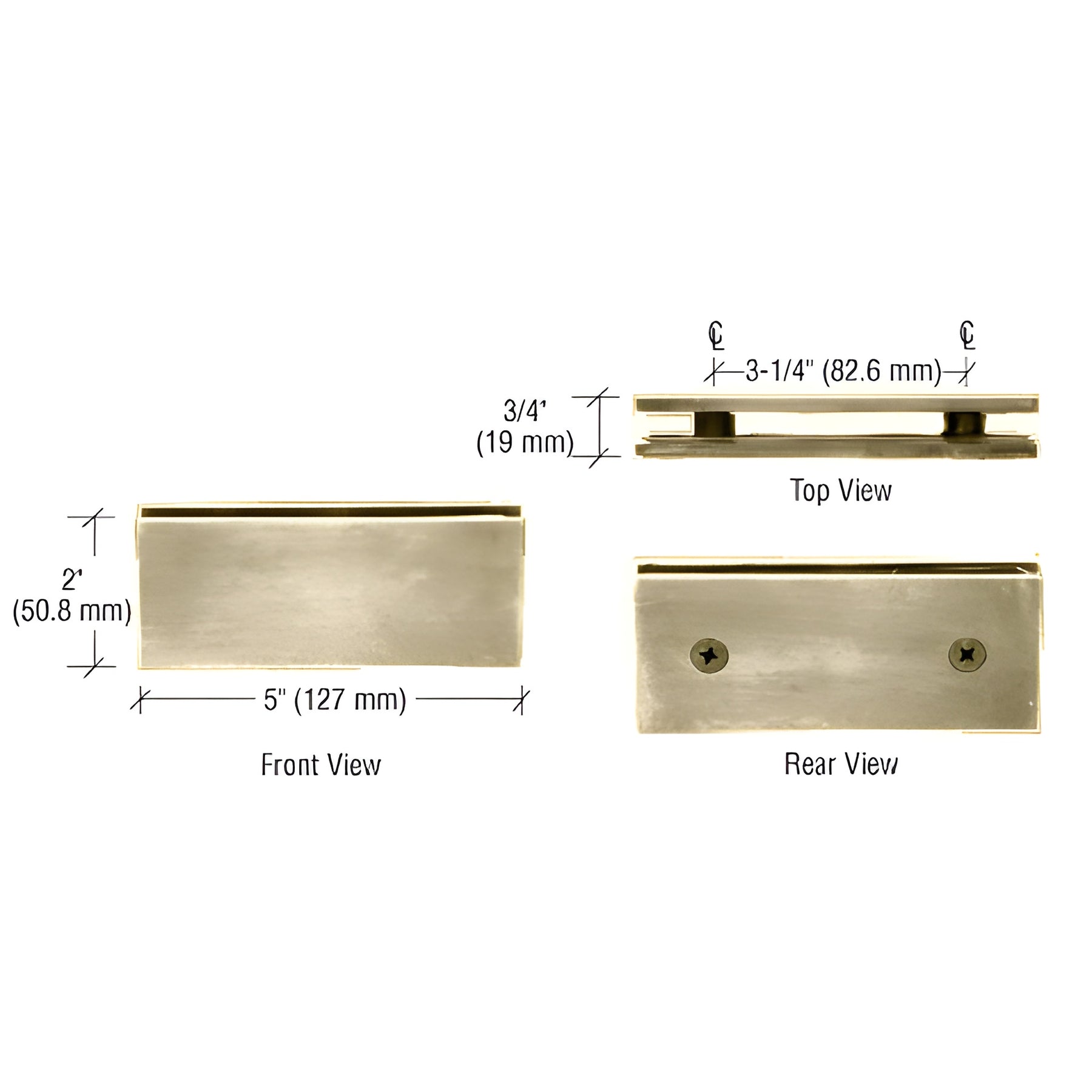

Square 180° glass-to-glass clamp with sharp, squared-off corners for a clean, modern look. Constructed from solid brass and available in multiple finishes to match CRL door hinges and hardware. Ideal for custom glass partitions, transoms, showcases, trophy cases, and frameless glass enclosures where a high-end, all-glass appearance is desired. Technical drawings and templates available.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Order the SGC180BBRZ solid brass 180-degree glass clamp to upgrade your frameless glass project—contact us for drawings, finishes, and lead times.
