CRL Brushed Chrome 90Β° Beveled Glass-to-Glass Clamp for Shower

CRL Brushed Chrome 90Β° Beveled Glass-to-Glass Clamp for Shower

$64.99 CAD
$64.99 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# BGC90BCH
Shipping Weight: 15.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Chrome
Glass To Glass Angle
90
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • For 3/8" to 1/2" (10 to 12 mm) glass
  • Use monolithic tempered glass
  • Secures fixed panels of glass for frameless shower enclosures
  • Solid brass construction
  • Creates an "all-glass" appearance as an alternative to U-channel
  • Glass fabrication required to accommodate clamps (see specifications below)

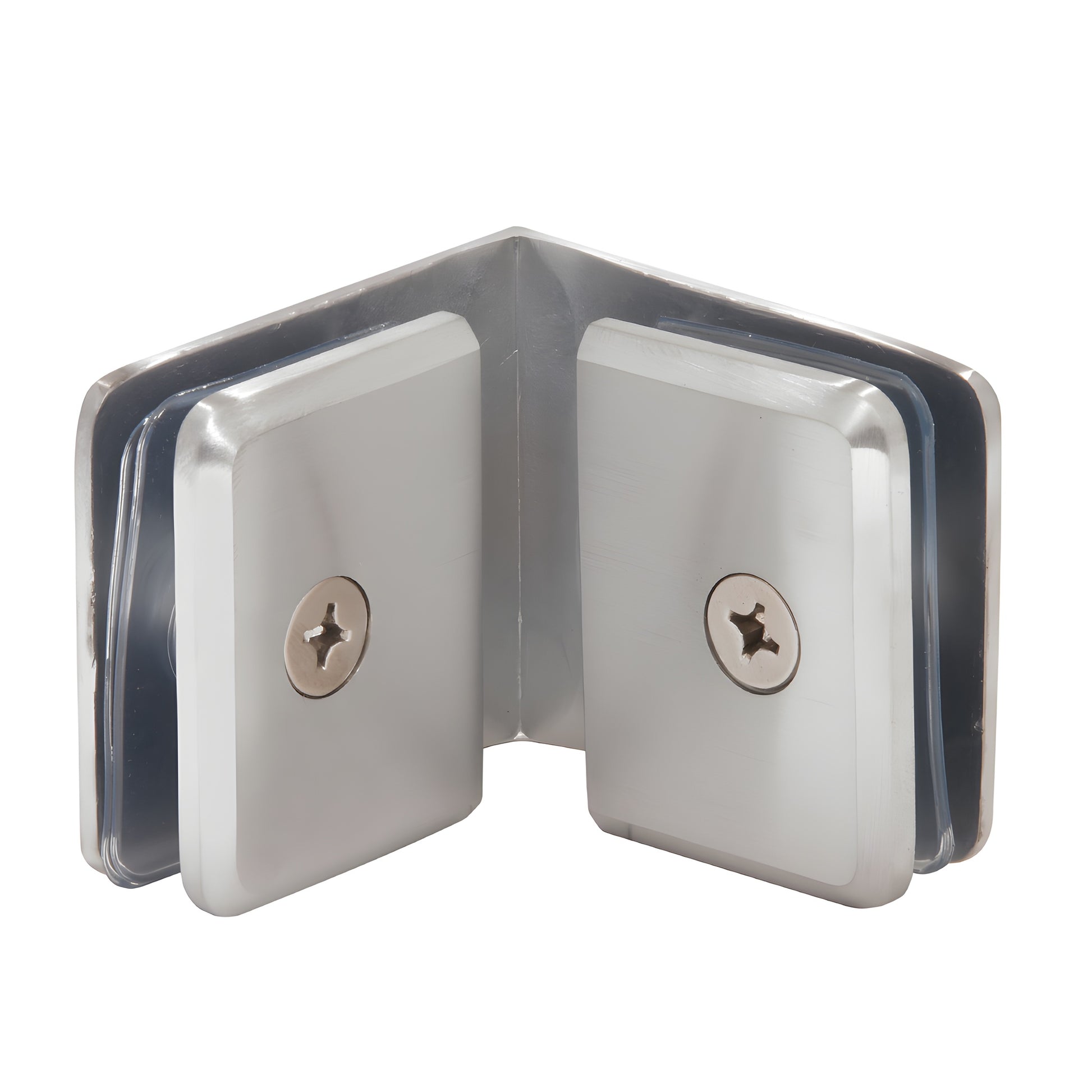

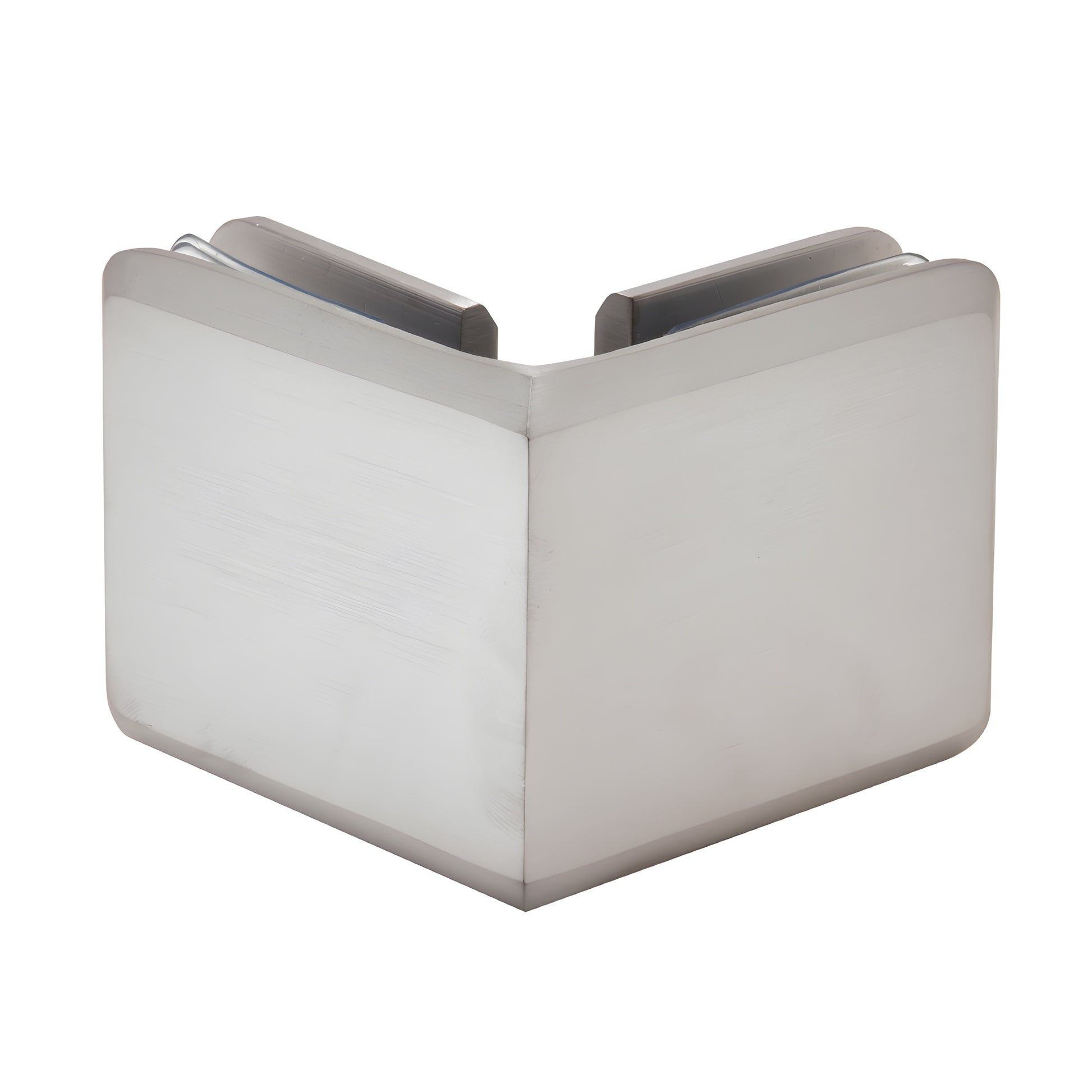

CRL Beveled Style 90ΒΊ Glass-to-Glass Clamp (SKU: BGC90BCH) features attractive beveled edges that coordinate with similarly styled hinges. Designed to join two fixed glass panels at a 90ΒΊ angle, this solid brass clamp is ideal for frameless shower enclosures and other all-glass applications where a premium finish and minimal framing are desired.



SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 require 3/4" (19 mm) holes; BGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on monitor settings.


Order the BGC90BCH beve

Specifications

Templates

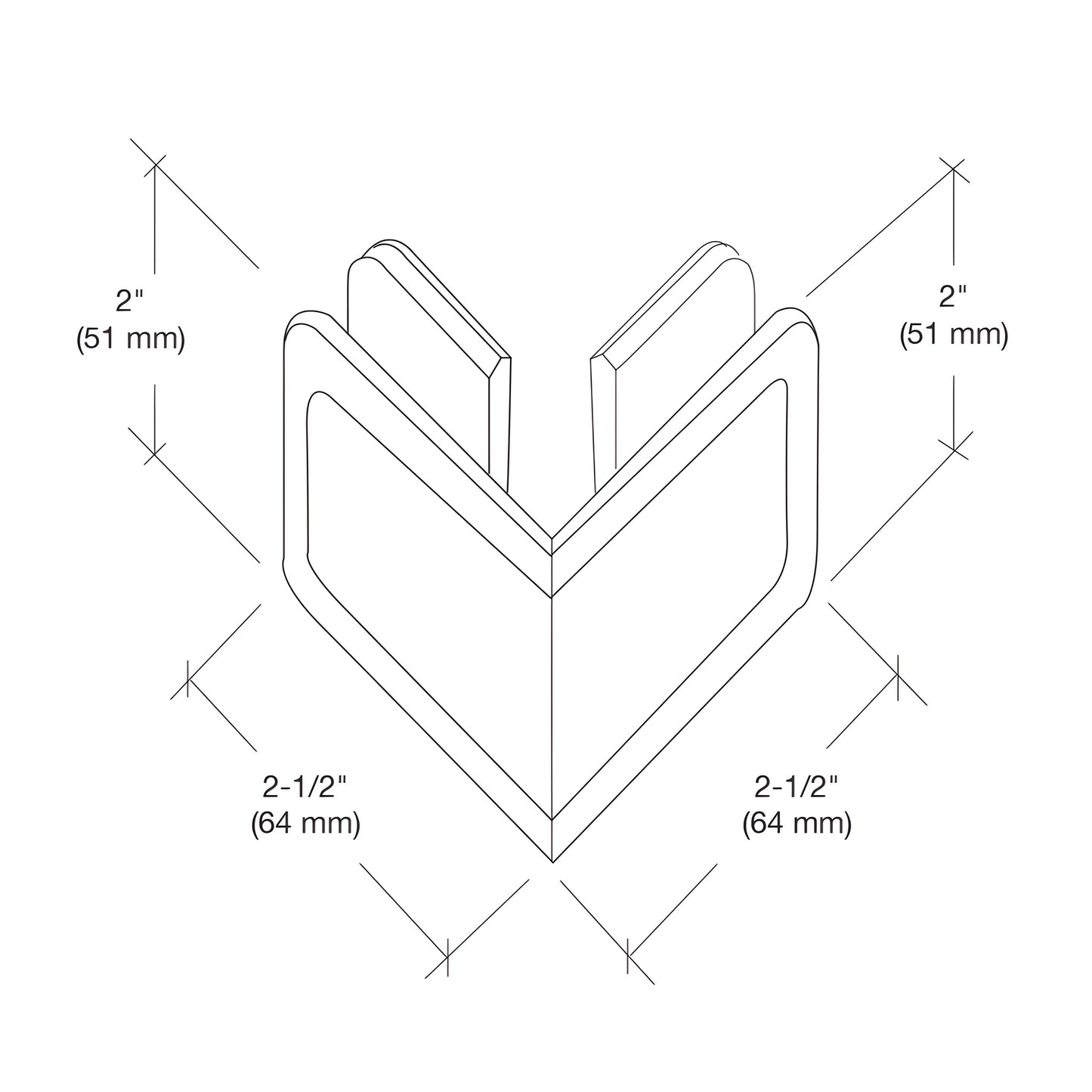

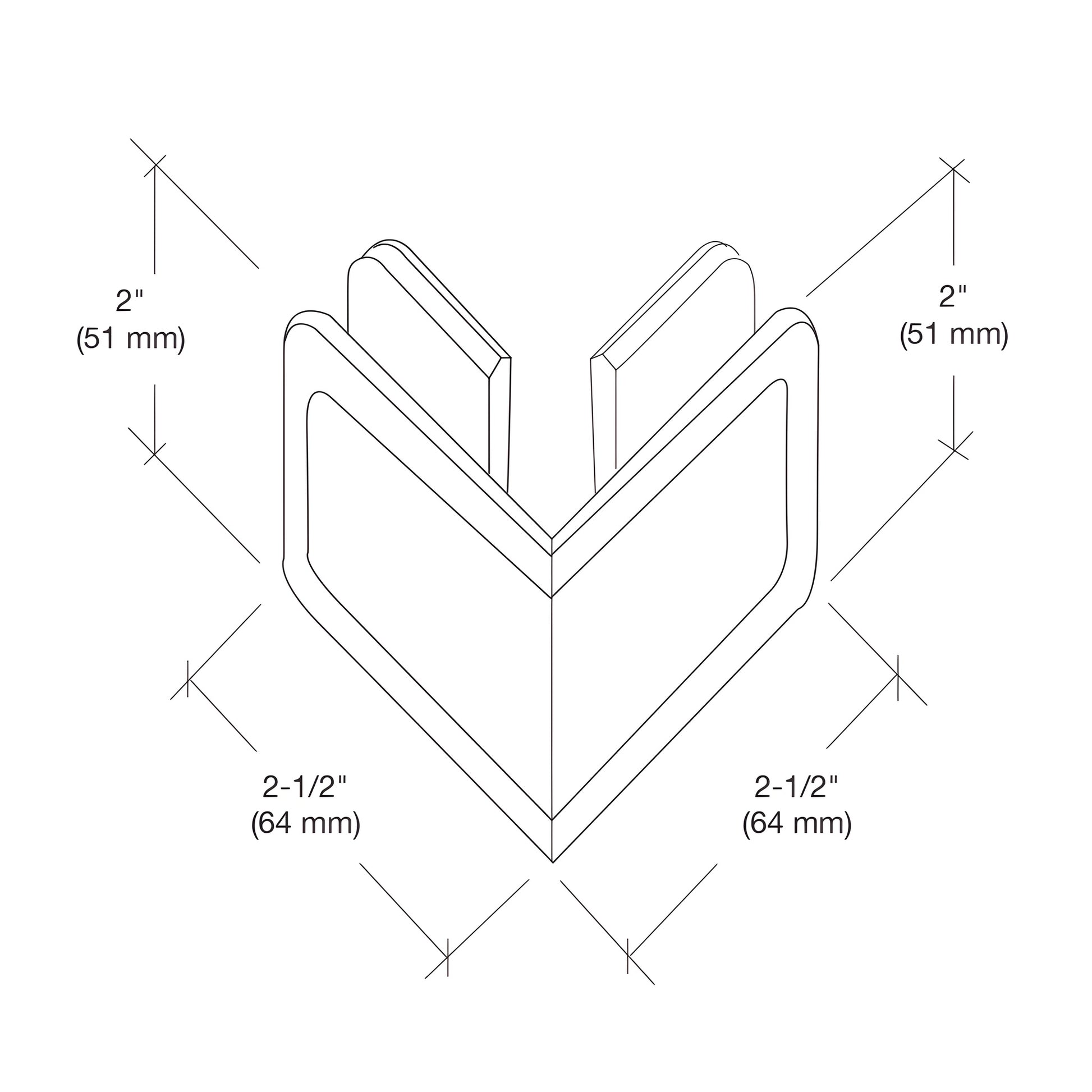

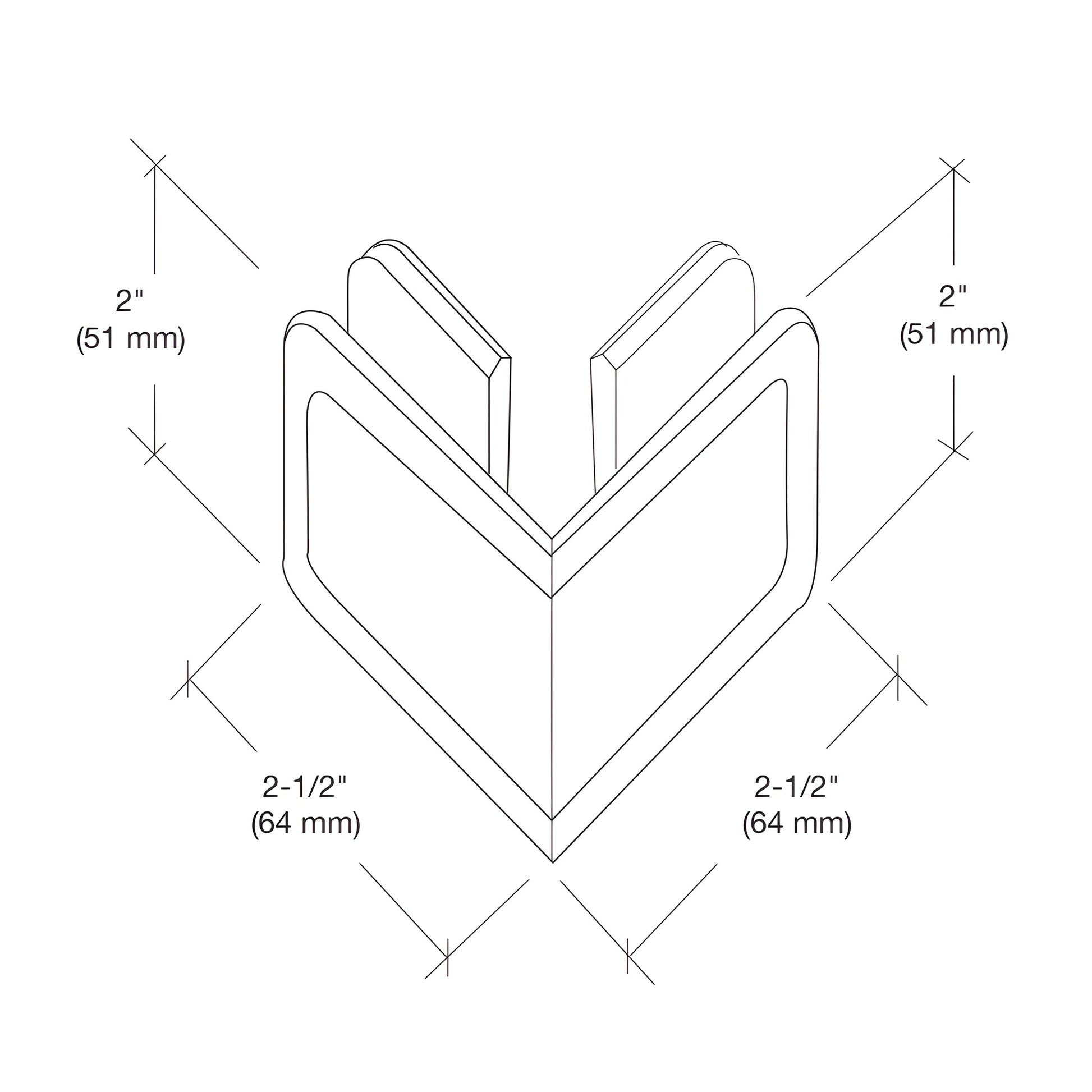

BGC90 SGC90 Template
