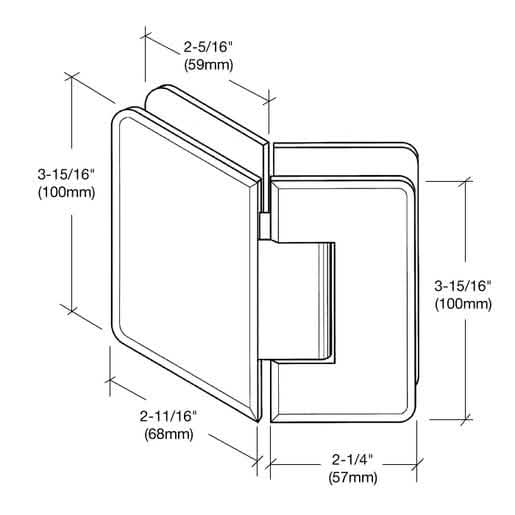

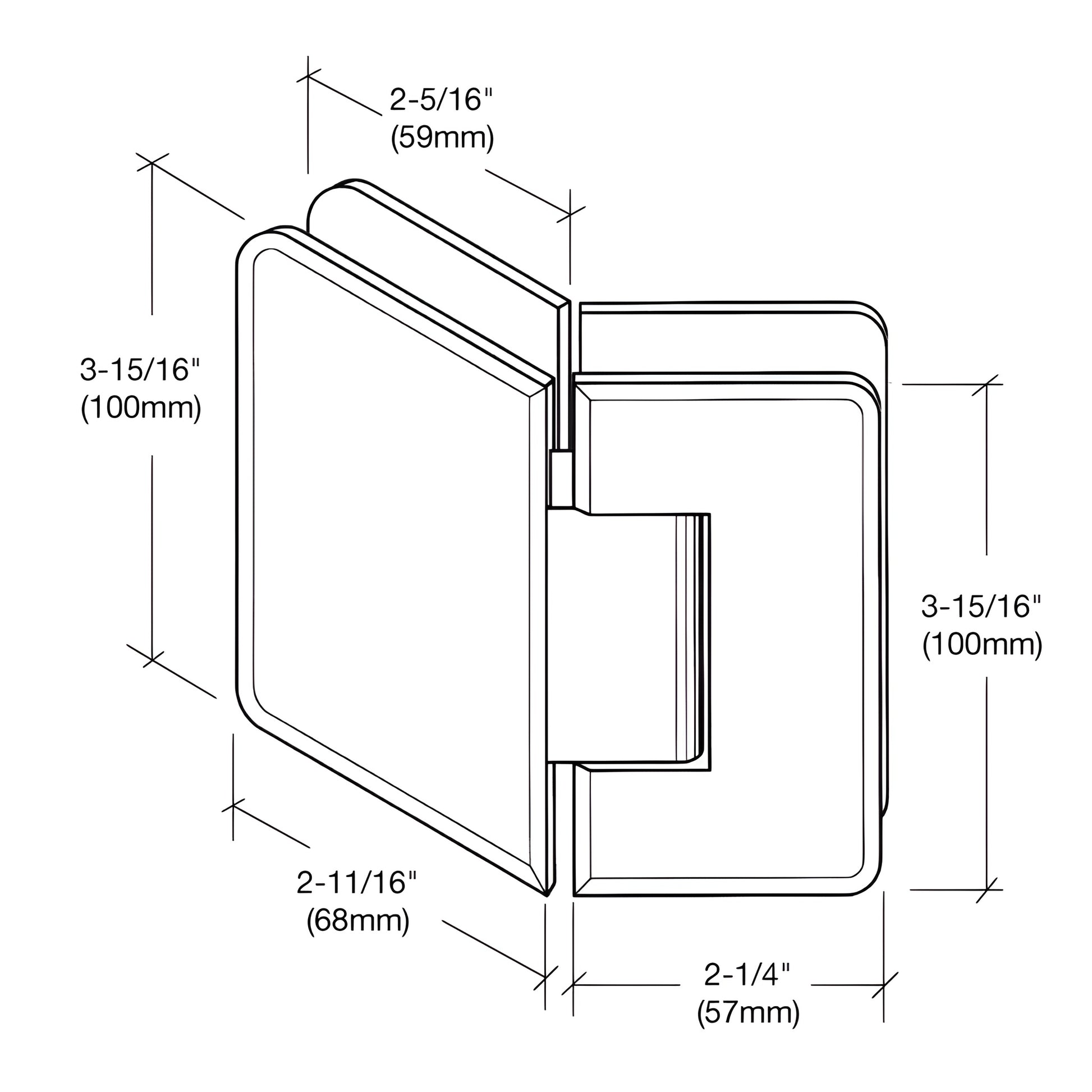

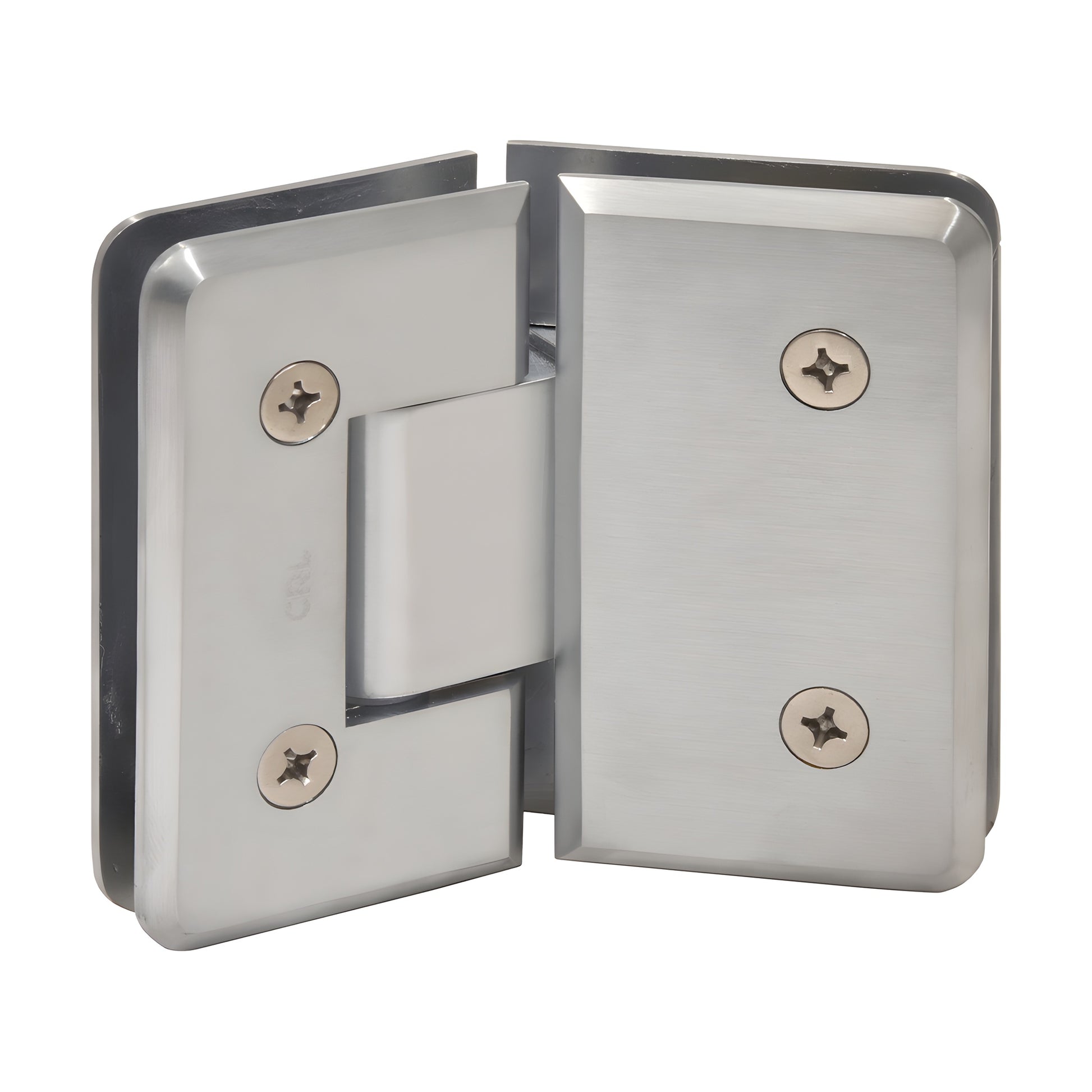

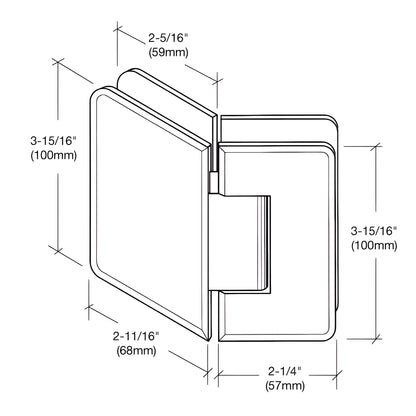

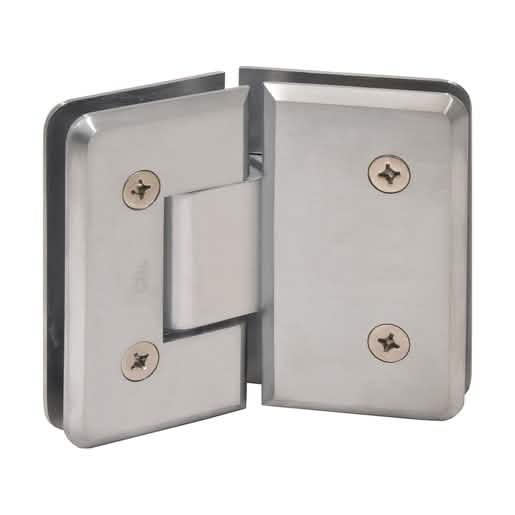

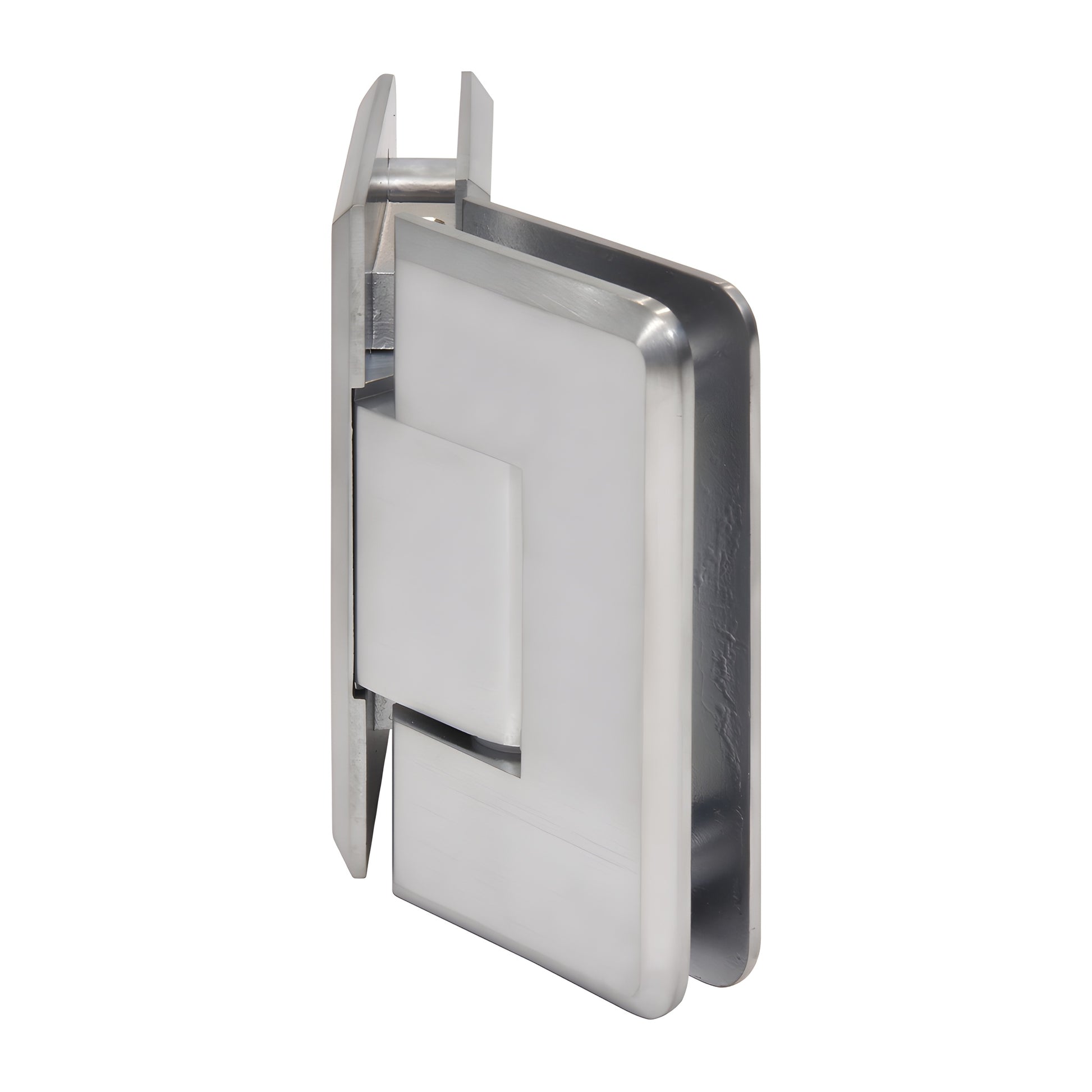

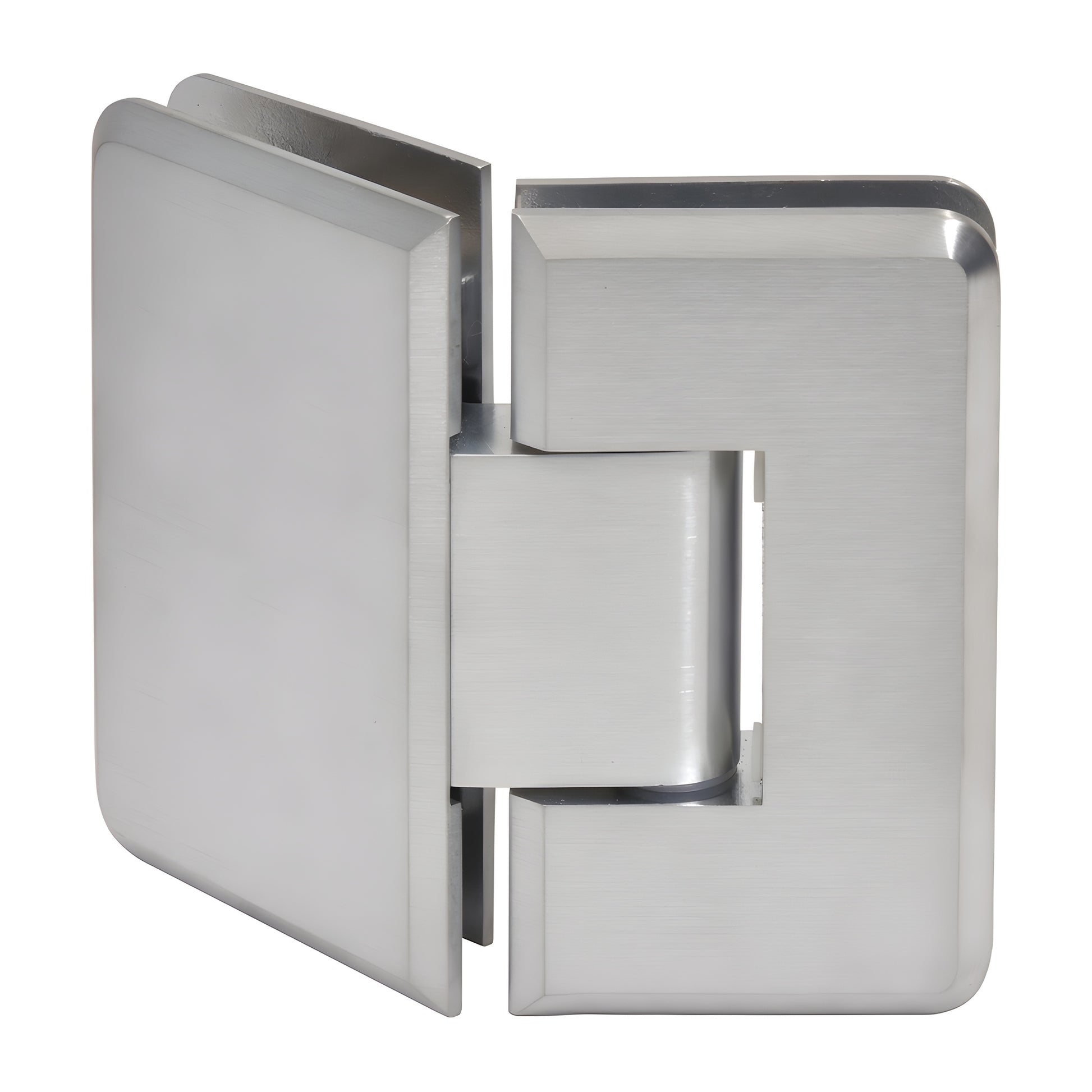

CRL Brushed Chrome 135° Cologne 045 Frameless Glass-to-Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Available in several durable finishes (custom finishes available on request)
• 135º glass-to-glass hinge for framed or frameless configurations
• Use with monolithic tempered glass

CRL Cologne Hinges (SKU: C0L045BCH) — a heavy-duty shower door hinge engineered for wider, heavier doors. Similar to Vienna Hinges but with radius corners and beveled edges for a sleek appearance, Cologne Hinges use two internal steel pins that can be left in place for "mouse-ears" cut-outs or removed for increased adjustability and compatibility with rectangular, square-corner cut-outs (including some competitive templates). Ideal long-tail keywords: Cologne shower door hinge, solid brass shower hinge, heavy-duty shower hinge, 135-degree glass-to-glass hinge.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin with 90º and 85º markings. Standard models ship with the 90º side active; Pre-Set models ship pre-set at 85º (5º tighter closure into shower interior). The pin can be rotated (not flipped) to change the active side.

Custom pivot pin: Custom pivot pins up to 45º are available for off-angle installations when the standard 5º adjustment does not close the door as required.

Load capacity: Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lb (50 kg), max door width 36" (914 mm). Using three hinges with 3/8"–1/2" glass: holds up to 140 lb (63 kg), max width 36" (914 mm).

Specifications:

• Glass thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
• Construction: Solid brass
• Hinge swings: 90º in and 90º out
• Closing type: Self-centering when within 15º of closed position
• Cut-out required: Except C0L092, which requires cut-out for door and two holes for fixed panel
• Includes: Gaskets, screws, and glass fabrication dimensions
• Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)

For custom finishes or special applications, contact the CRL Technical Sales Department. CRL shower door hinges are designed for residential
