CRL Brushed Chrome Grade 2 Storeroom Lever Lockset Schlage 6-Pin
CRL Brushed Chrome Grade 2 Storeroom Lever Lockset Schlage 6-Pin
Regular price
$128.42 CAD
Regular price
Sale price
$128.42 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D85STR
Shipping Weight: 2.04 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.04 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

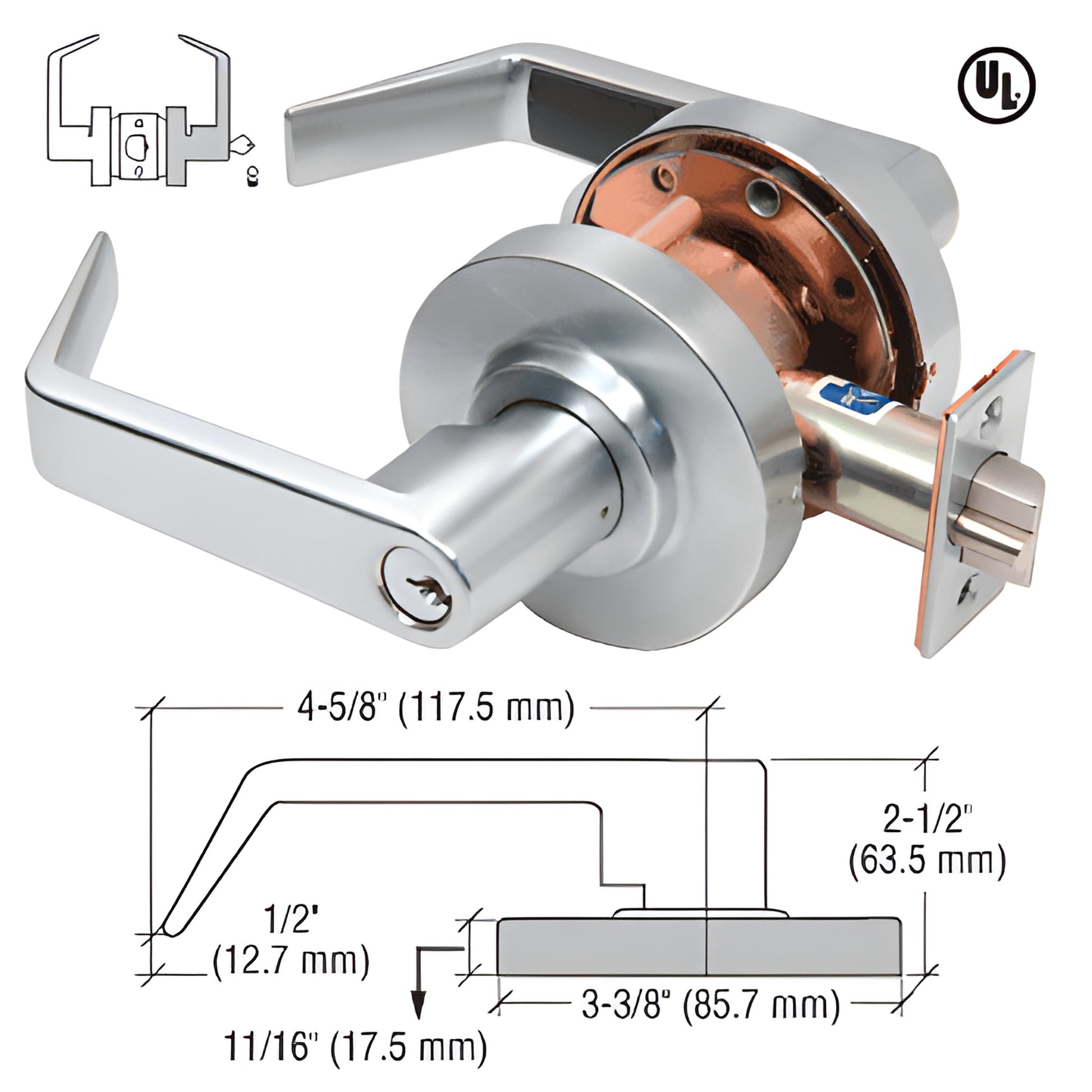

Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 2
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Chrome
Fire Rating Hour
3
Function
Storeroom
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
6-Pin
Operation Type
F86 Storeroom Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Standard Duty Lever Lockset
UL Listed
Yes
Overview
- Schlage® C 6-Pin Keyway
- ANSI A156.2 Grade 2
- 3 Year Warranty
- UL Listed
These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed and reversible for left or right doors. UL listed with a 3-hour fire rating, they fit door thicknesses from 1-3/8" to 1-3/4" (35 to 45 mm) and use a 2-3/4" (70 mm) backset. Available with a Schlage® C 6-pin keyway (SKU D85STR) or a 7-pin Small Format Interchangeable Core (SFIC), and supplied with an ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike—ideal for commercial buildings, offices, and institutional openings that require a fire-rated, heavy-duty lever lockset.
Storeroom function description: Outside lever always locked; key unlatches only. Inside lever always allows free egress—meets code for secure storeroom applications and emergency egress requirements.
Order SKU D85STR now for a UL-listed, fire-rated commercial lever lockset built for heavy use.
Specifications
Templates
