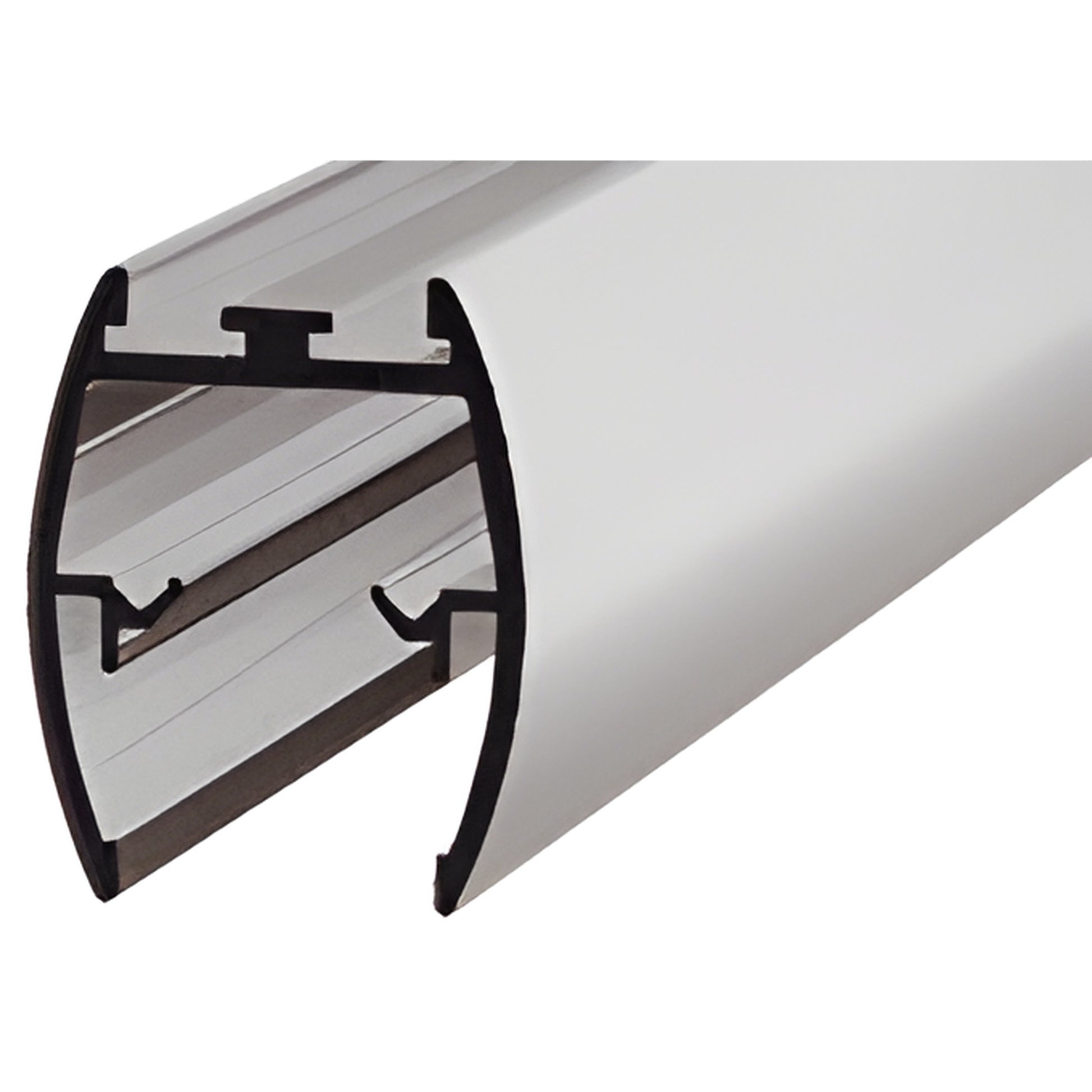

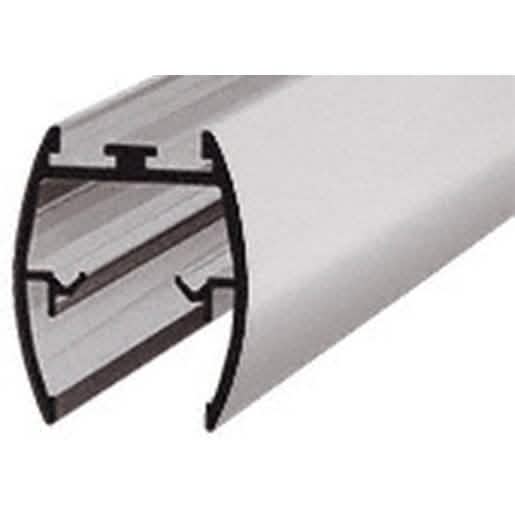

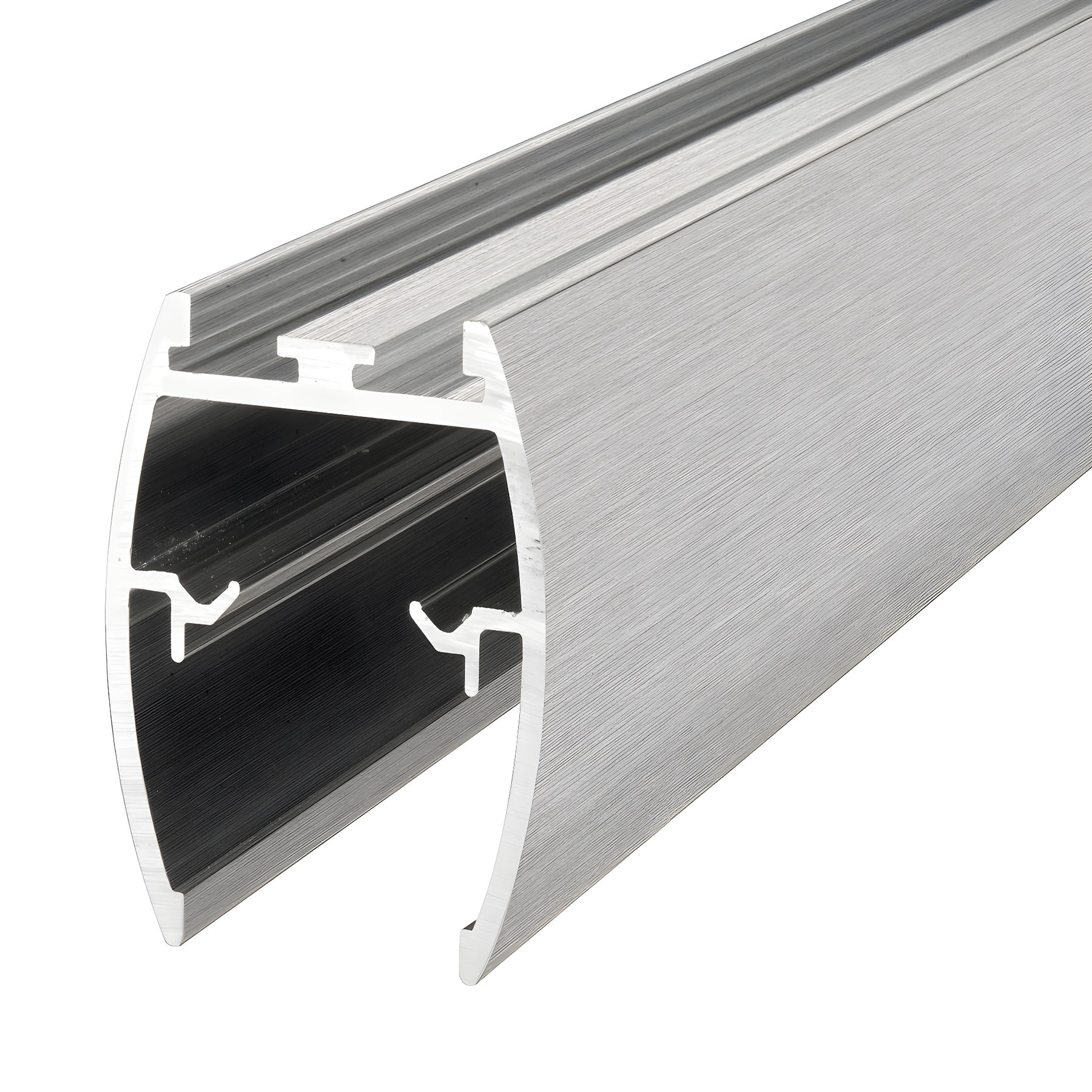

CRL 144in Brushed Nickel Sliding Door Header for CK/DK Cottage Series

• Individual supplementary extrusions and hardware components to convert our frameless shower door kits into angled enclosures or wider inline units
• Available finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze to match our kits
• Do-it-yourself components, or send us a drawing to customize a frameless sliding shower enclosure
• Designed for use with monolithic tempered glass

DK Cottage Series components (SKU: DK61144BN) were designed by CRL to add versatility to our frameless sliding shower door kits. Use these extrusions and accessories to add panels, build a custom sliding unit, or create an angled shower enclosure. Stock lengths include headers, header fillers, side jambs, bottom sills, sidelite sills, and clear polycarbonate vertical jambs, plus top hangers and accessory items. We can assemble a customized kit for you—email or fax a drawing with dimensions of the shower opening and we'll include everything you need except the glass and silicone. Installation instructions are included in each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – One 1/2" (12 mm) diameter hole; Top Hangers – Four 1/2" (12 mm) diameter holes (two per glass panel)

Build a custom frameless shower enclosure with
