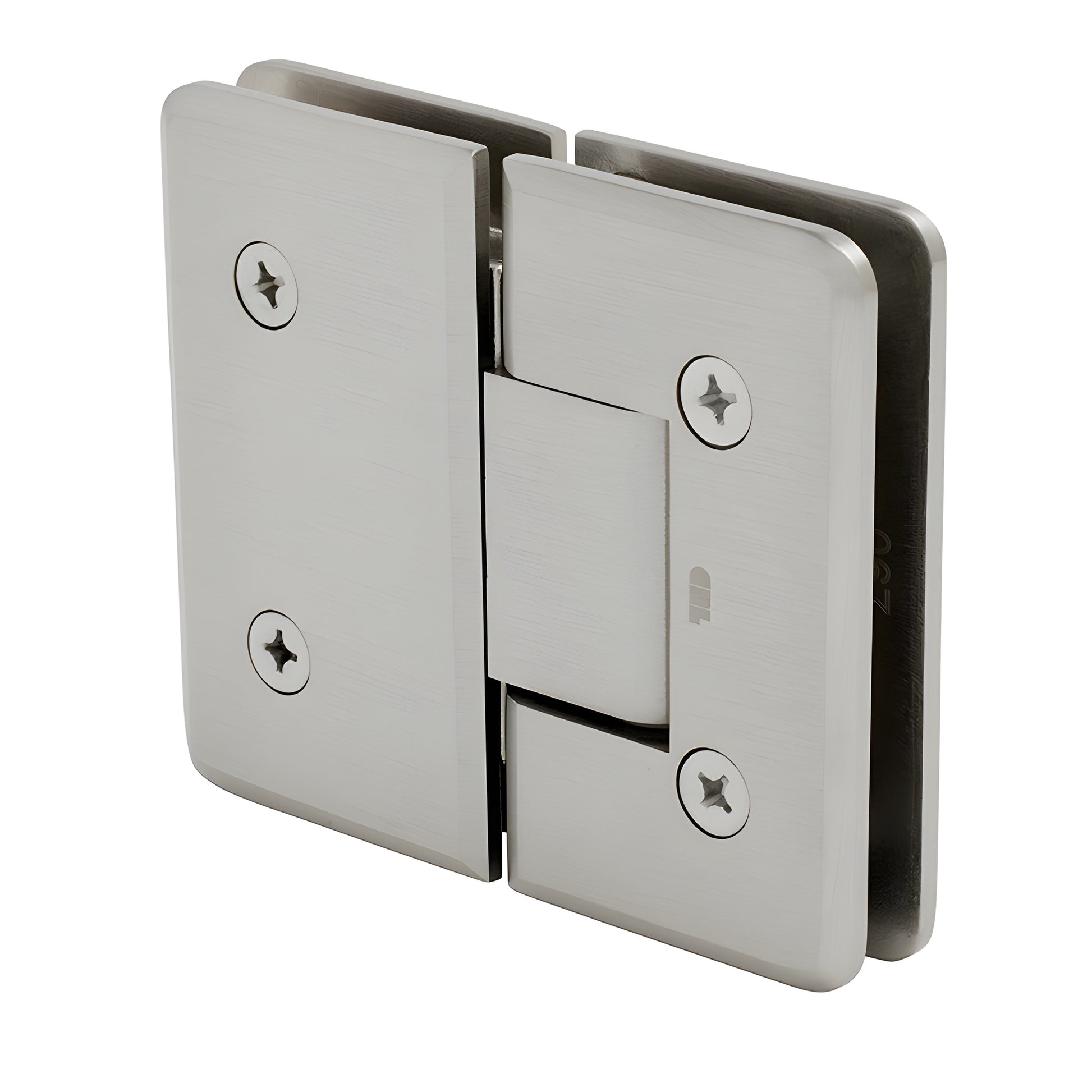

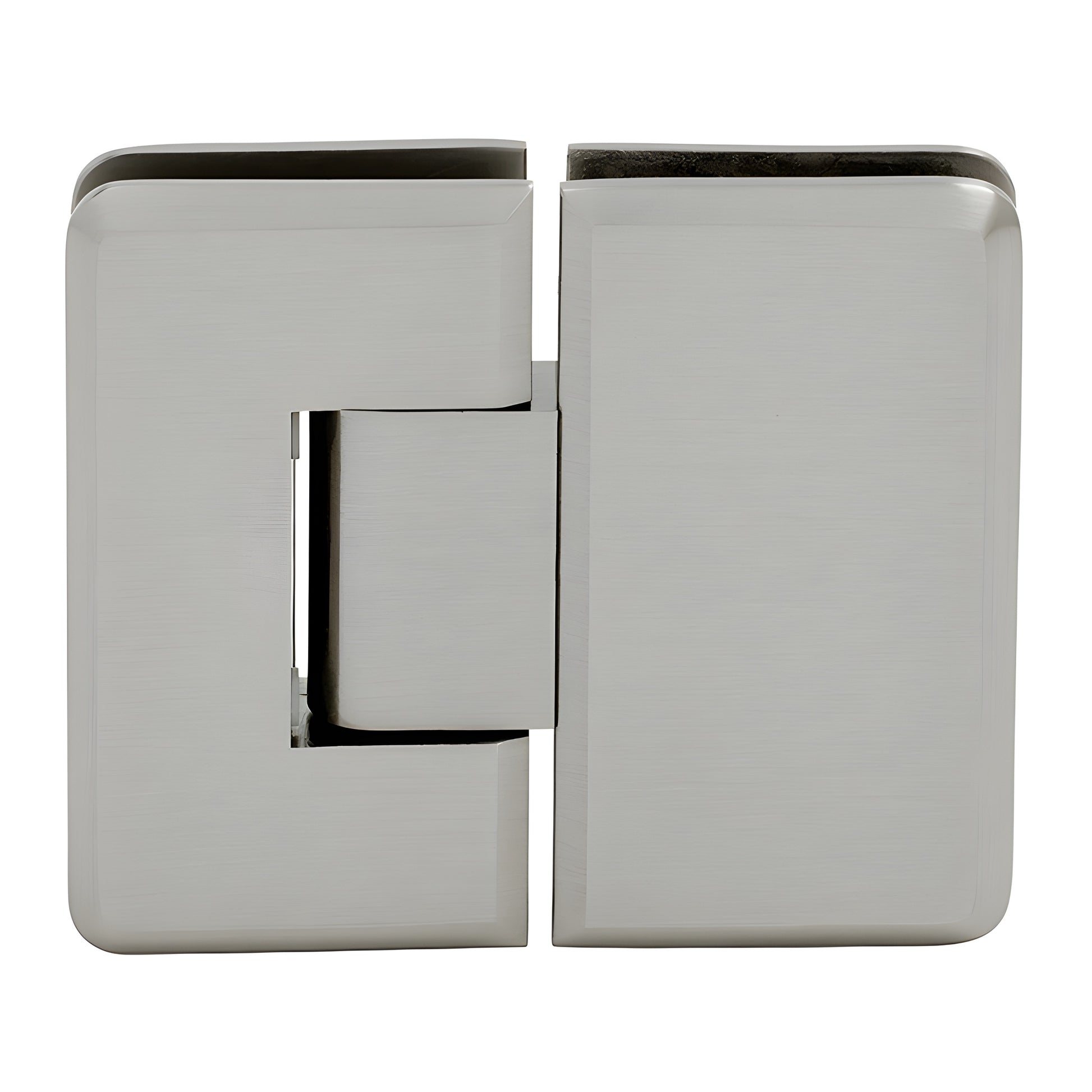

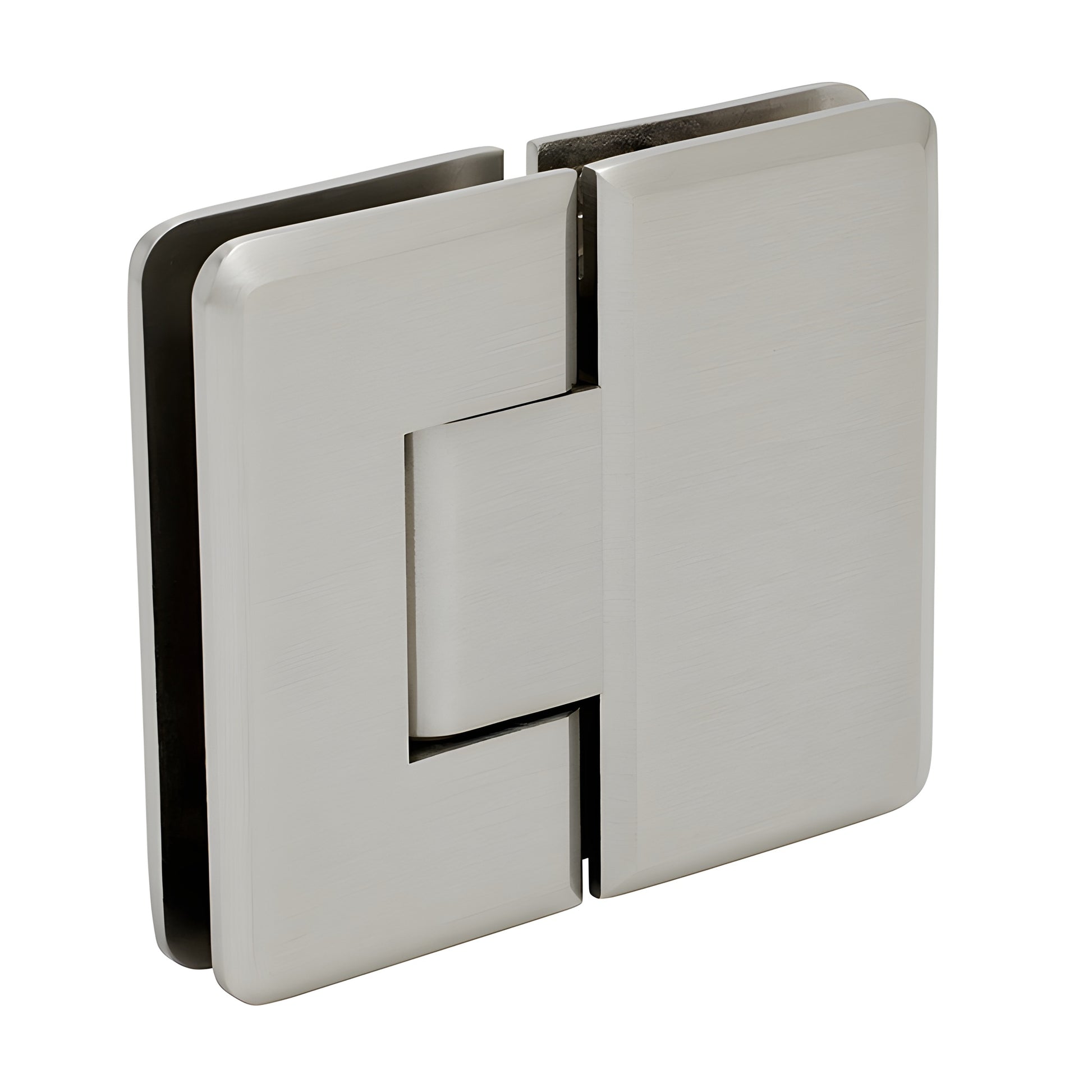

CRL Brushed Nickel 180° Glass-to-Glass Positive-Close Shower Hinge

• Special grooved internal pivot pin for a positive, precise closing action
• Available as wall-mount and 180º glass-to-glass hinge configurations
• Stocked in four popular finishes; other finishes available by special order

The Positive Close Cologne Hinge (SKU: C0L780BN) features an internal grooved pivot pin that provides a precise, positive closing action to zero degrees—distinct from typical self-centering Cologne hinges. Ideal for glass shower doors and frameless shower enclosures, this solid brass hinge is stocked in four popular finishes and can be custom-finished on request.

Load capacity & glass compatibility
Using two hinges with 3/8" to 1/2" glass (10–12 mm tempered safety glass): holds up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10–12 mm tempered safety glass): holds up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° inwards and outwards
Closing Type: Positive closing to zero degrees
Cut-Out Required

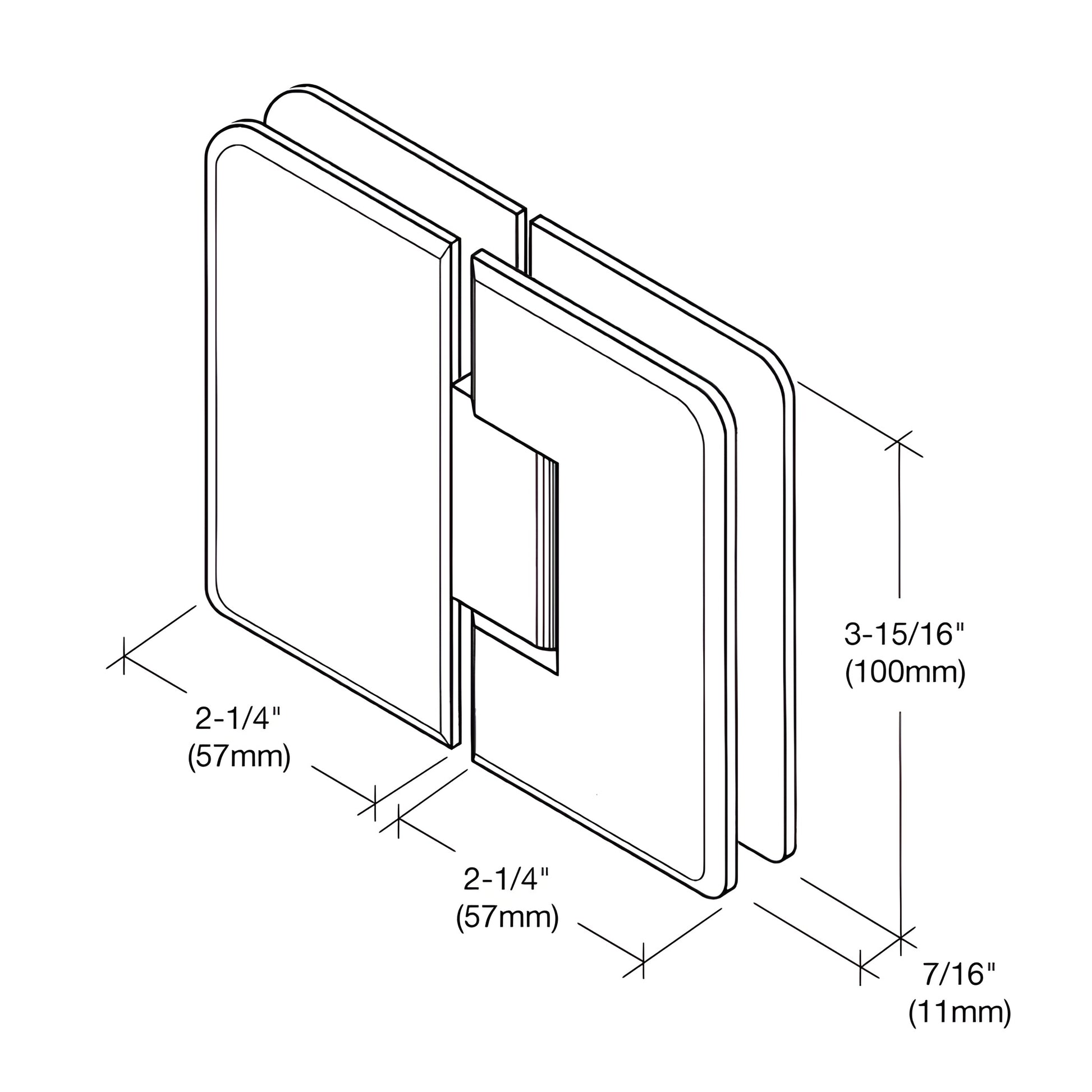

Includes: Gaskets, Phillips screws, Allen screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request. Contact CRL Technical Sales Shower Door Department for lead times and finish options.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For applications outside their intended purpose, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Choose the Positive Close Cologne Hinge (C0L780BN) for reliable, precise closing on frameless glass shower doors—contact CRL to order or request custom finishes.
