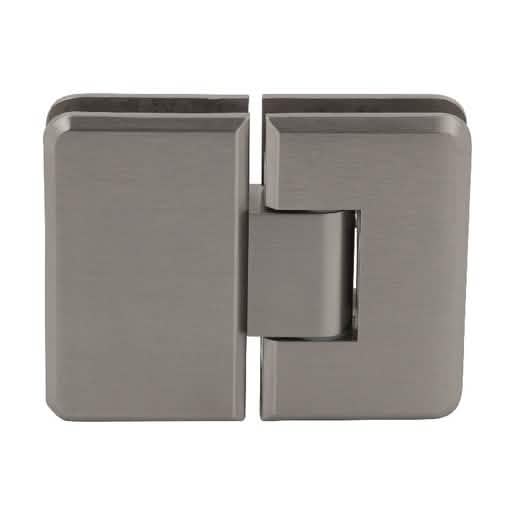

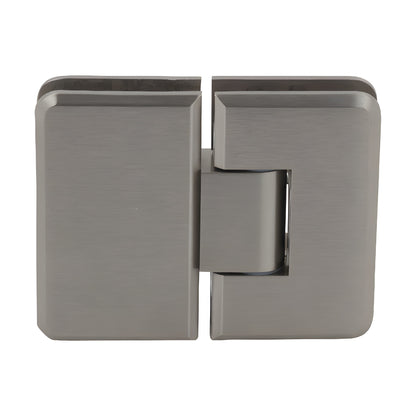

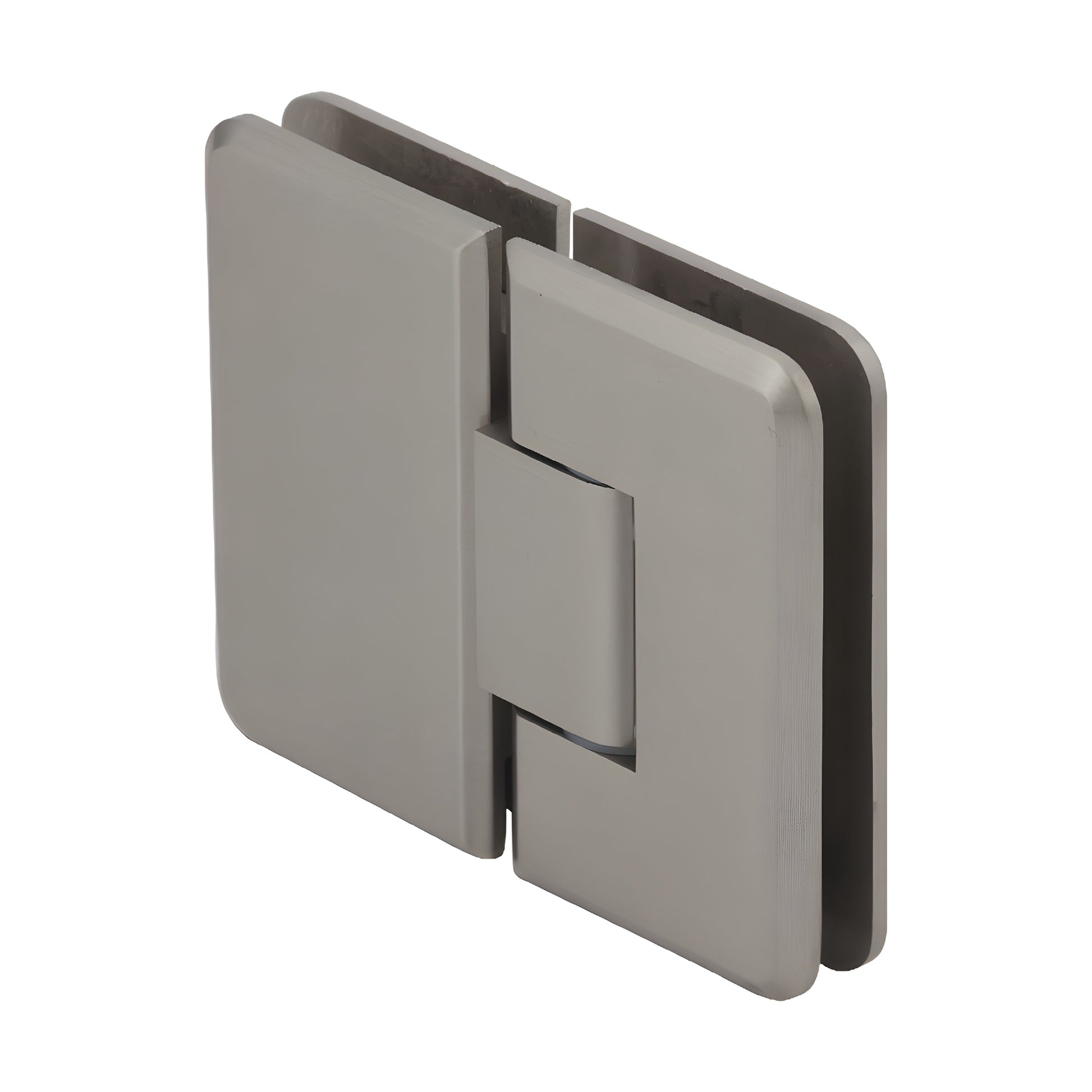

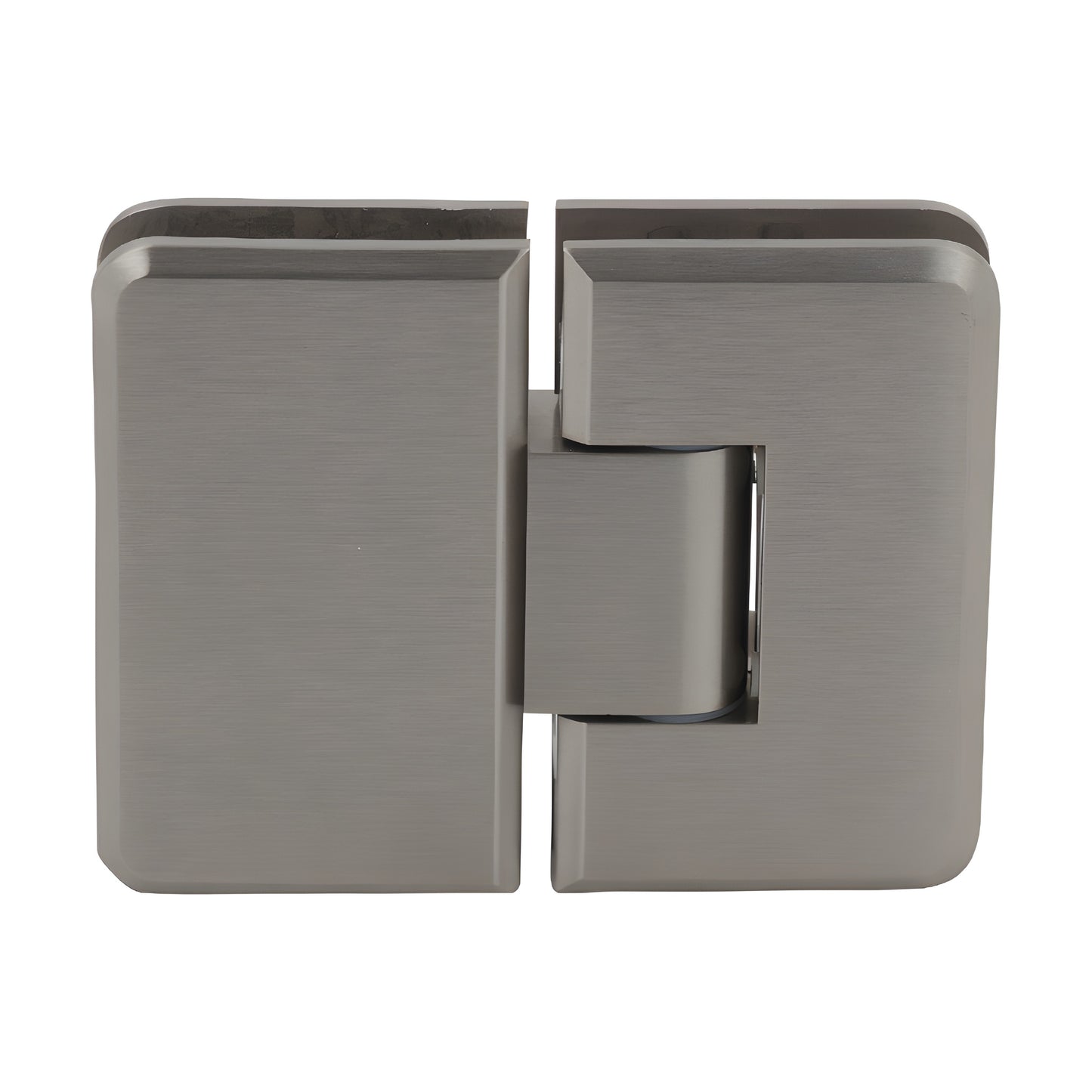

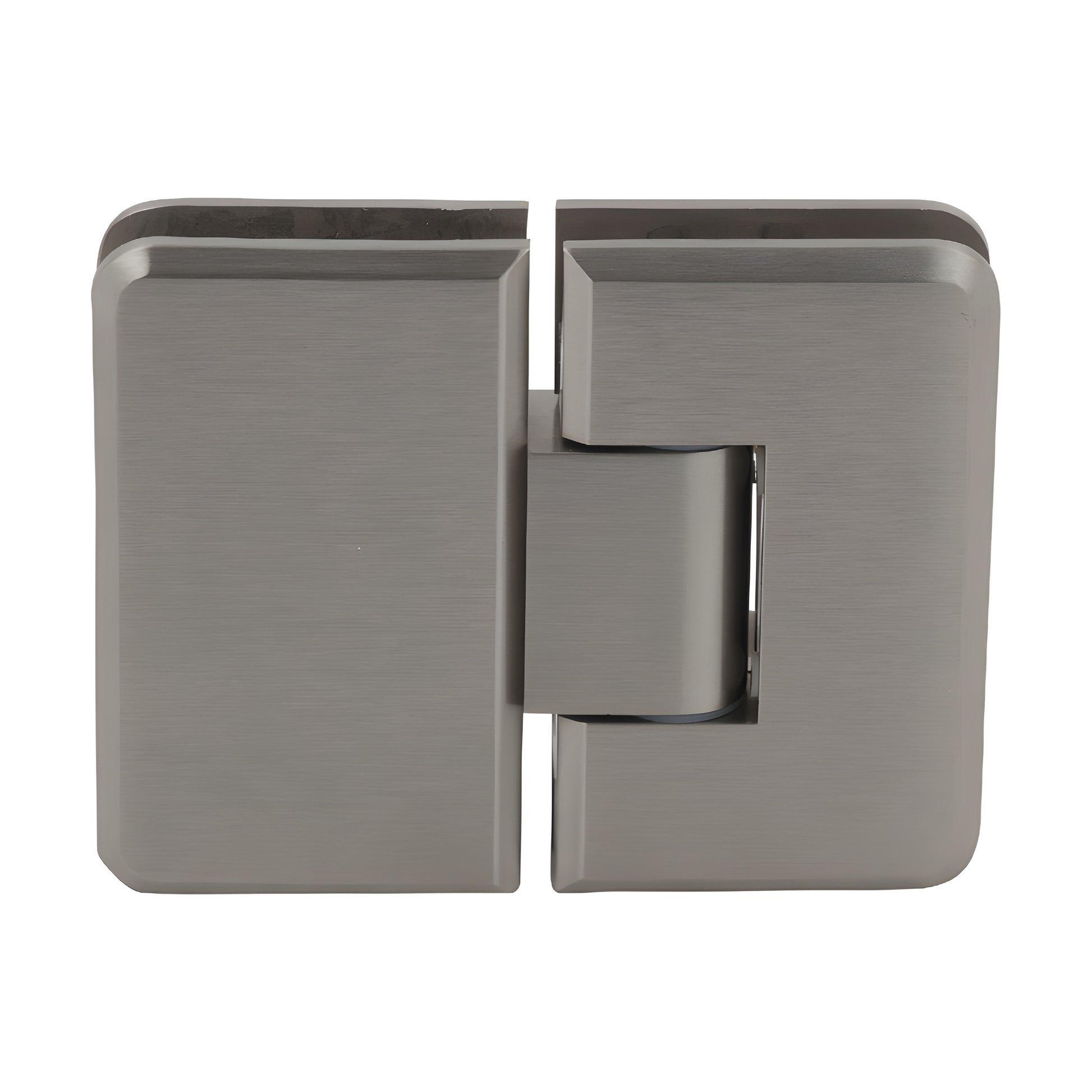

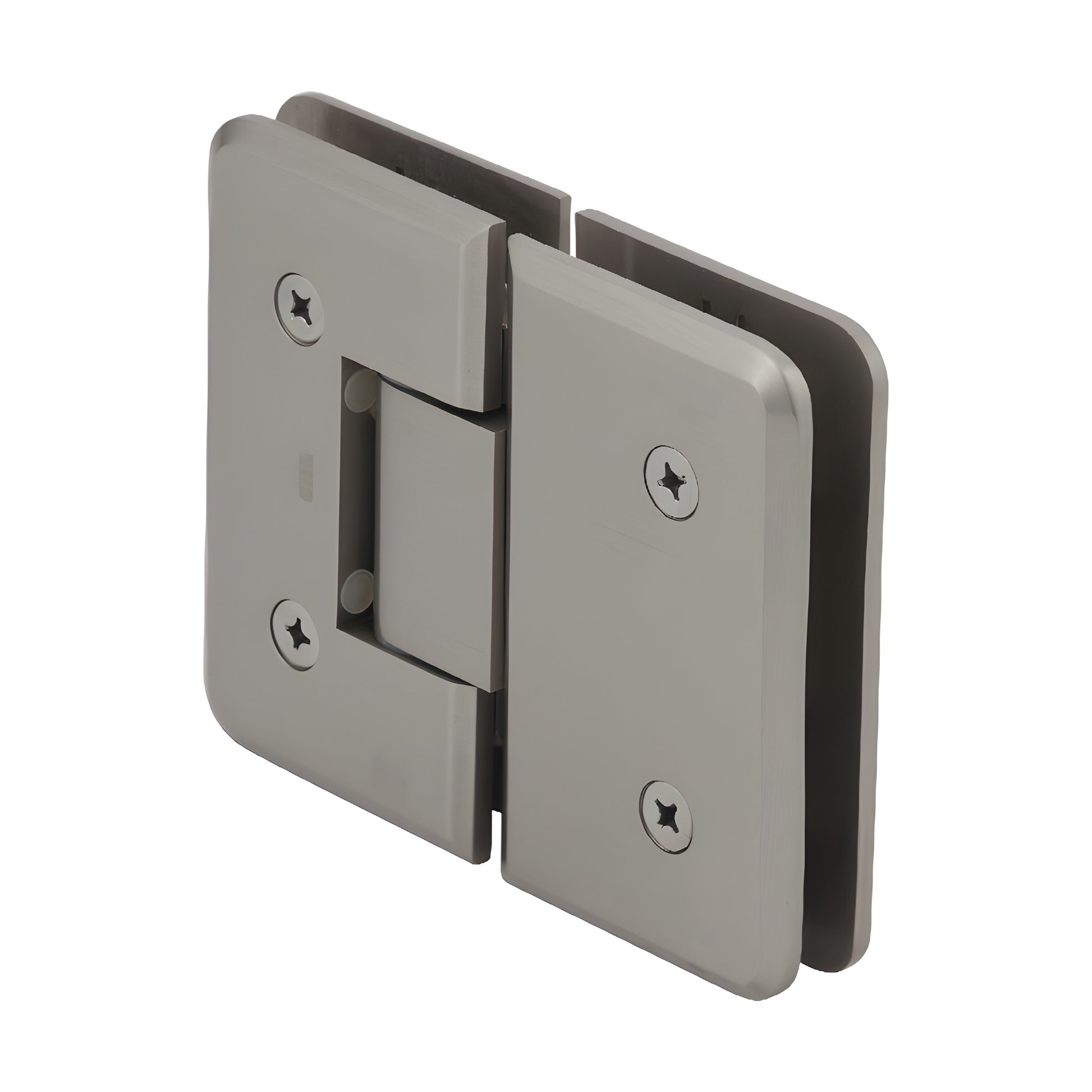

CRL Plymouth Brushed Nickel 180° Glass-to-Glass Shower Door Hinge

• An excellent choice for heavier, wider shower doors
• Integrated safety interlock enhances glass panel control
• Wall-mount and 180° glass-to-glass models available
• For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Plymouth Series Hinges (SKU: PLY180BN) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges. These heavy-duty, solid-brass shower door hinges are designed to deliver a clean, minimal hardware look for frameless glass enclosures while providing exceptional holding power.

These hinges use an integrated stiffening beam to minimize clamping plate flex and improve durability. Heat-treated stainless steel springs increase longevity and provide strong self-centering force near the closed position, making them an ideal choice for residential and hotel frameless shower door installations.

IMPORTANT: Use only two hinges per door. Do not use three hinges.

Using two hinges: With 3/8" to 1/2" (10–12 mm) tempered glass at up to 39" (1 m) width, the pair will support up to 140 lbs (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Do not exceed the maximum door weight or width capacities. Maximum two hinges per door. Glass fabrication is required.

Product Warning:

CRL shower door hinges are intended for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may differ from other brands.
