- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
- Solid Brass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- Glass Fabrication Required to Accommodate Clamps
- Use Monolithic Tempered Glass

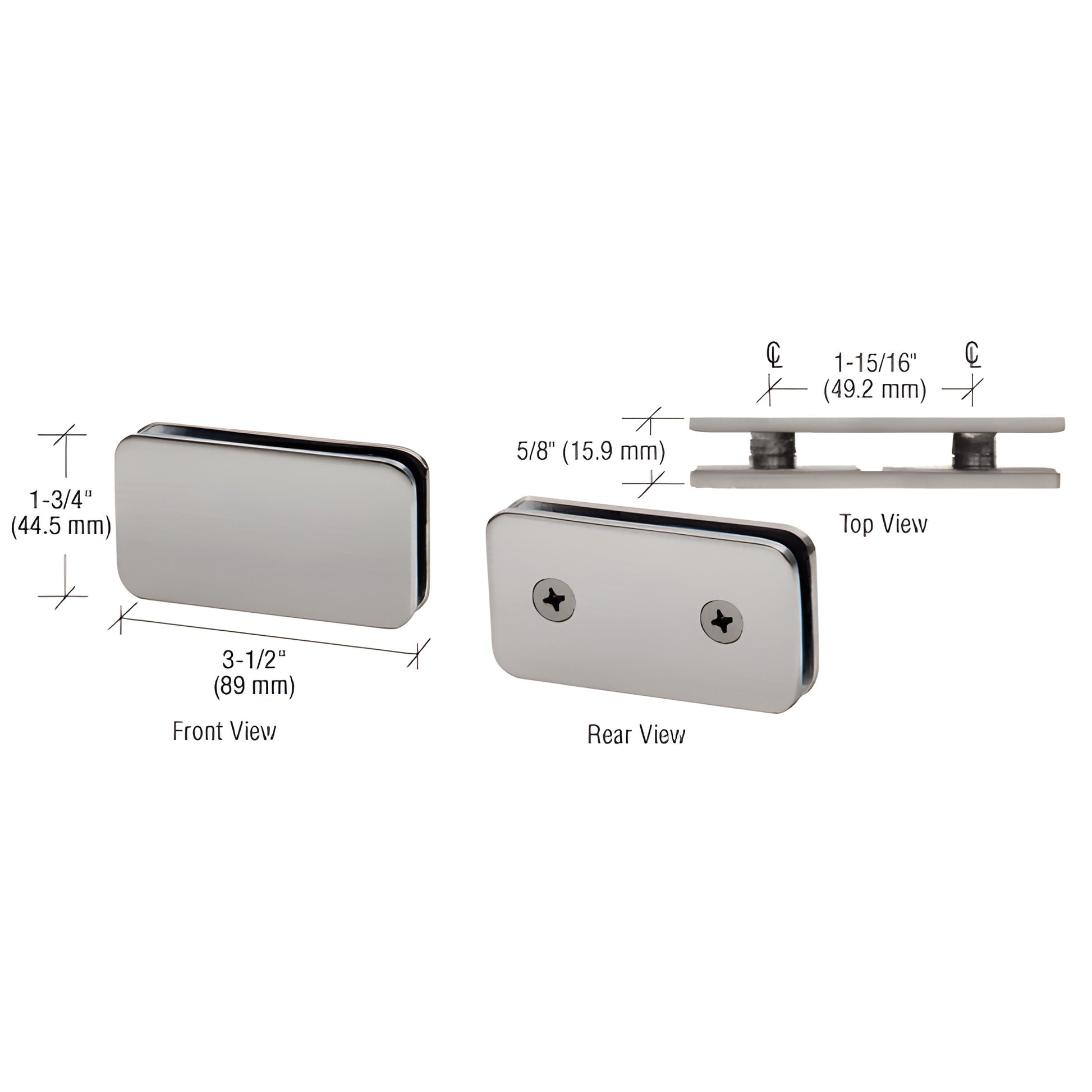

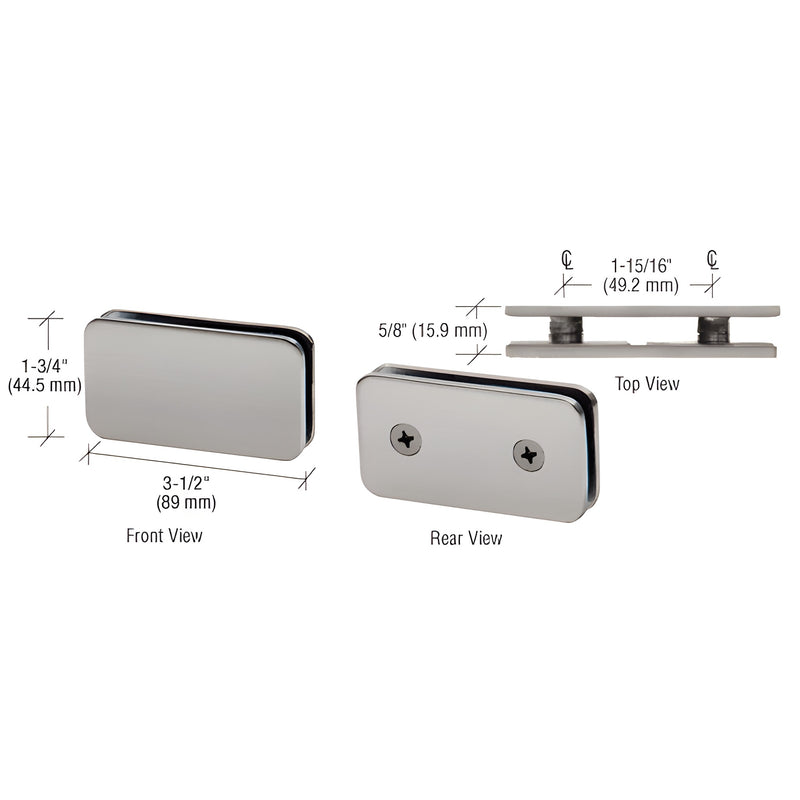

180 Degree Double Stud Glass Clamps
allow two inline glass panels to be connected together. A hole through each piece of glass provides extra stability and security.
Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.
SPECIFICATIONS
Materials
Solid Brass
Glass Thickness Range
5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required
5/8" or 3/4" (16 or 19 mm) each panel.
Includes
Gaskets
NOTE
An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
