Product Details
- 3/4" (19 mm) Diameter Heavy Brass Tubing (1.5 mil Thick)
- Designed for Use on Frameless Fixed Glass Doors or Panels
- Numerous Finish Choices in Popular Sizes
- Custom Finishes Available
- Use Monolithic Tempered Glass

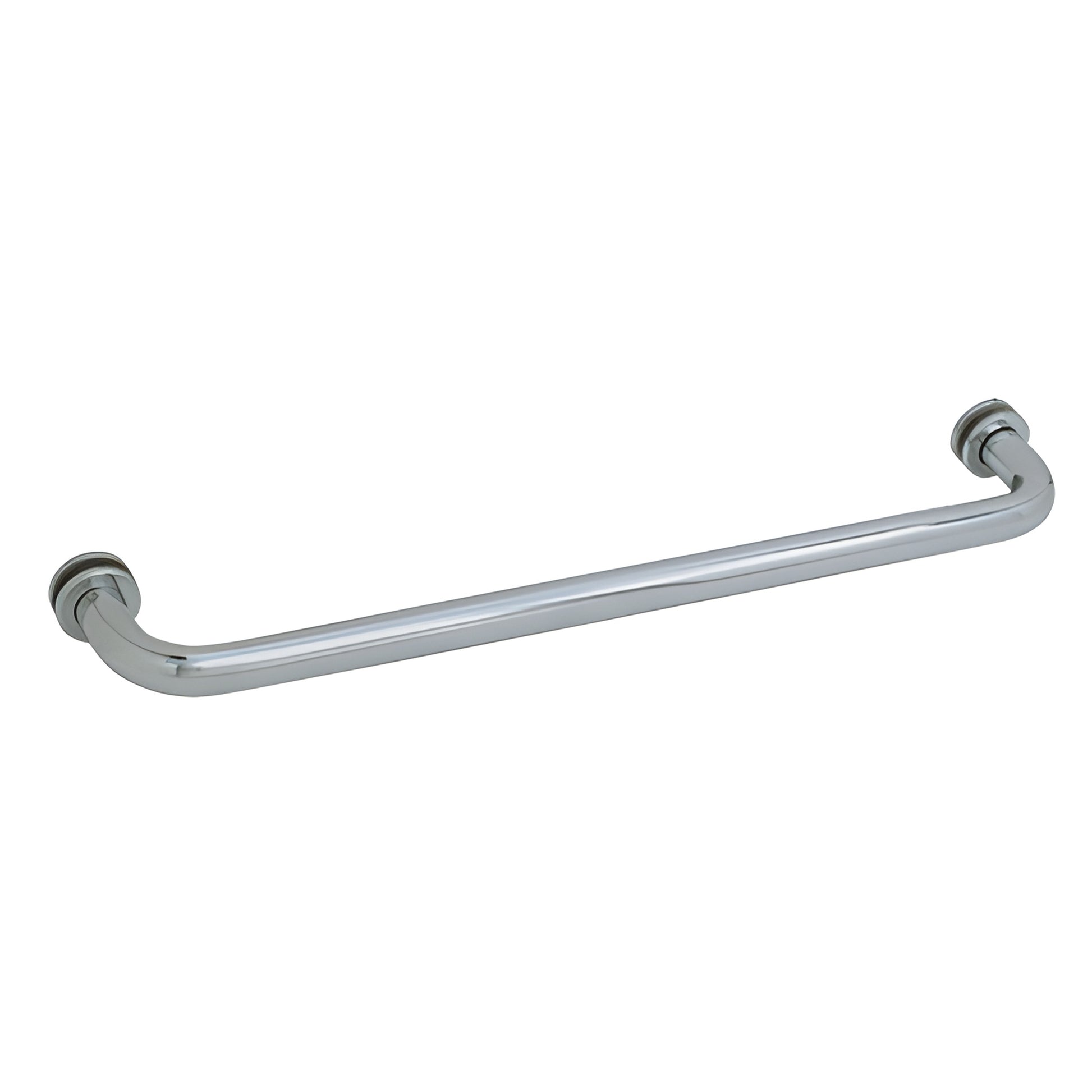

These CRL Single-Sided Towel Bars are designed for use on frameless glass doors or fixed panels. Bars are made from 3/4" (19 mm) diameter brass tubing, and come with matching finish metal washers. The narrow inside knob protrudes only 1/4" (6 mm) from the glass surface.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick); 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
24" Towel Bar = 24" (610 mm)
AVAILABLE SIZES:
Cat. No. SDTBS12 12" Towel Bar
Cat. No. SDTBS18 18" Towel Bar
Cat. No. SDTBS24 24" Towel Bar
