CRL Brushed Nickel 3/8" 52° Slant Glass End Clamp Type A

• Chrome, Brass, and Brushed Nickel finishes
• Custom finishes available on request
• For tempered glass thickness 3/8" (10 mm)

Use the CRL 52 Degree Slant Open Center Clamp "B" (SKU: RH3338BN) on the top or bottom midpoint of slanted glass rails. Reversible center clamp set at a 52° angle provides a secure fit for slanted glass railing applications.

P612** replacement screws

Our glass and railing clamps are predrilled and ready for commercial and residential use in metal and glass railings, glass partitions, room dividers, and other architectural glass installations. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass. Three stocked finishes provide fast availability, with custom finishes available on request. Install by loosening the screw on one end, inserting the glass edge, and tightening. For added protection, use CRL Tuff-Pak Tape to cushion the glass in clamps. For wood mounting use Screw Cat. No. 8X212DW; for metal mounting use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available on request.

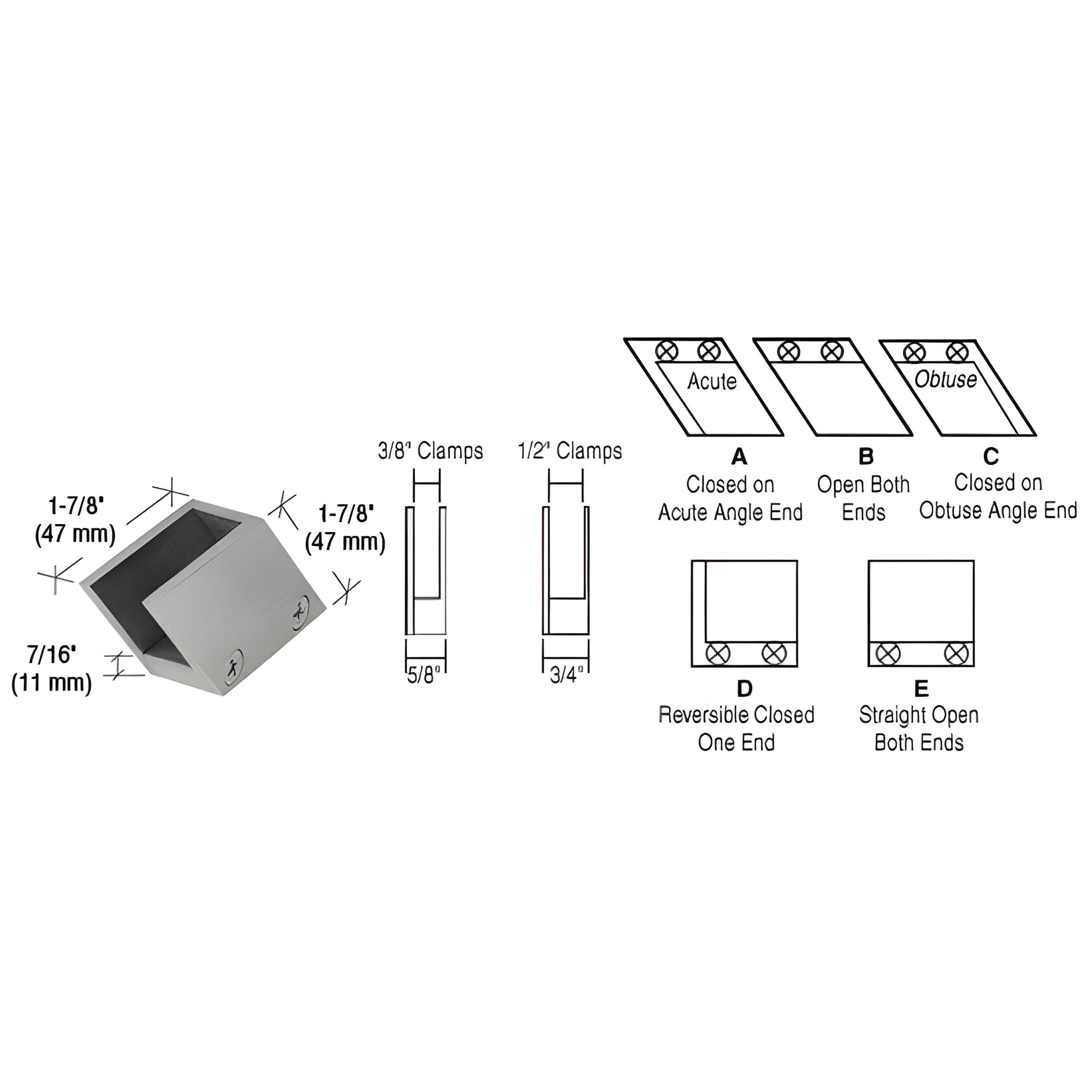

A: Acute End Clamp for slanted railings
B: Open Center Clamp for slanted railings (52°) — ideal for slanted glass rail systems
C: Obtuse End Clamp for slanted railings
D: Straight End Clamp for level railings
E: Straight Open Center Clamp for level railings
