CRL Brushed Nickel 5/16" Single Aluminum U-Channel

Finish / Colour (5)

Overview

SKU	SDCD516BN
Sold as	1 Each
Finish/Color:	Brushed Nickel

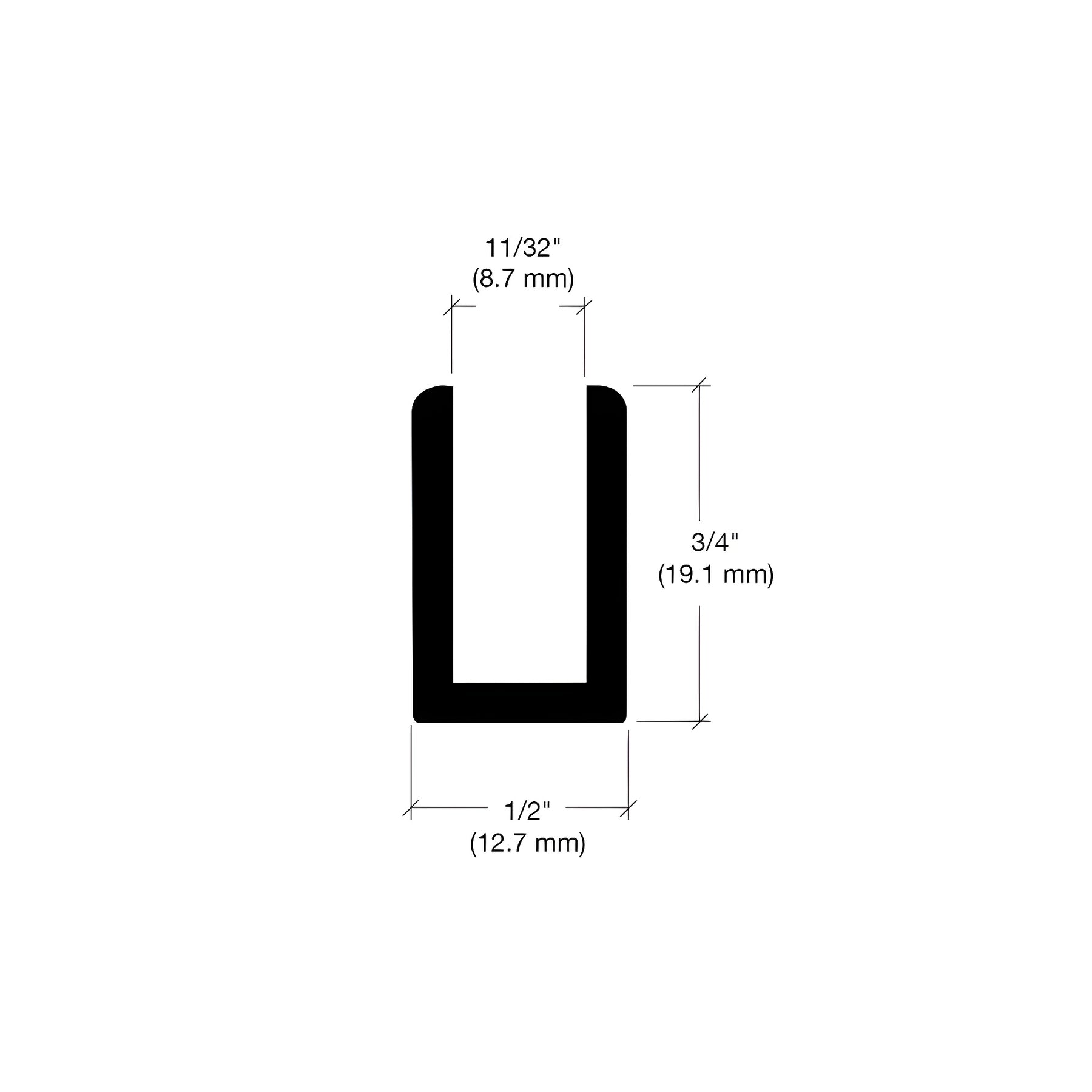

Glazing Pocket Width	11/32
Glazing Thickness	5/16 in. (8 mm)
Height	3/4 in. (19 mm)
Length	95 in. (2413 mm)
Material	Aluminum
Profile	Deep
Width	1/2 in. (12 mm)

Description

Product Details

For 5/16" (8 mm) Glass
Extremely Versatile Extrusions in Up to Eight Popular Finishes
Wet Glaze with Clear Silicone
Use Monolithic Tempered Glass

CRL Aluminum U-Channels for 1/4" (6 mm) and 5/16" (8 mm) glass are used to secure fixed glass panels in showers, or glass partition panels. Glass should be secured with CRL 33SMRC Mildew Resistant Clear Silicone Sealant.
