- Designed for use only with 1/4" (6 mm) thick glass
- Use monolithic tempered glass
- Low-profile 2-9/16" (65 mm) reversible header — choose curved or flat face
- Clamp-on hanger bracket eliminates glass drilling for a no-drill installation
- Offered only in inline units with metal side jambs (no clear jamb system)
- Available finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, Oil Rubbed Bronze
- Two stock sizes plus custom inline sizes up to 60" W x 72" H

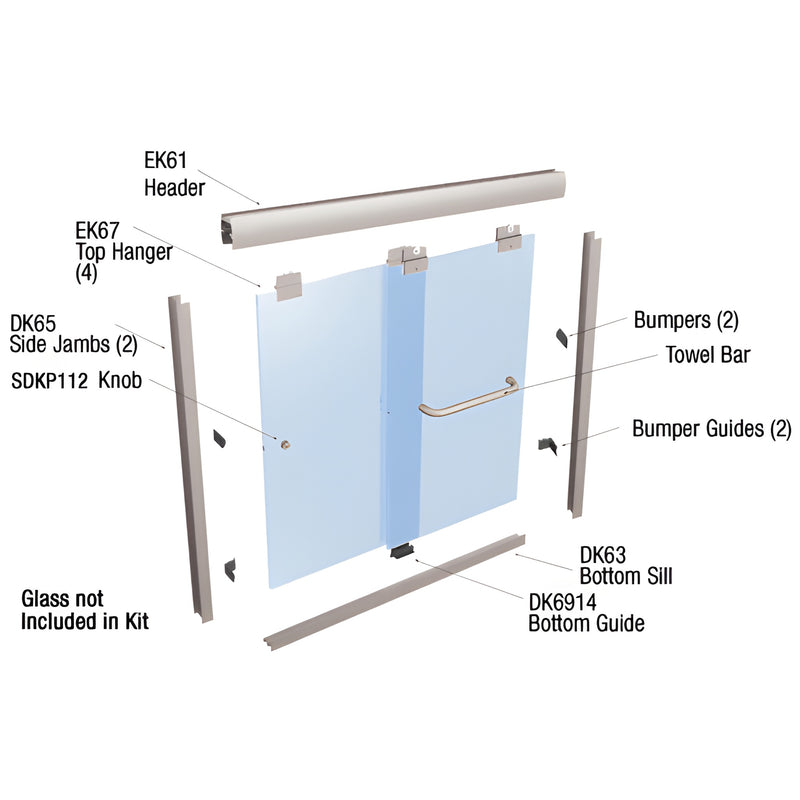

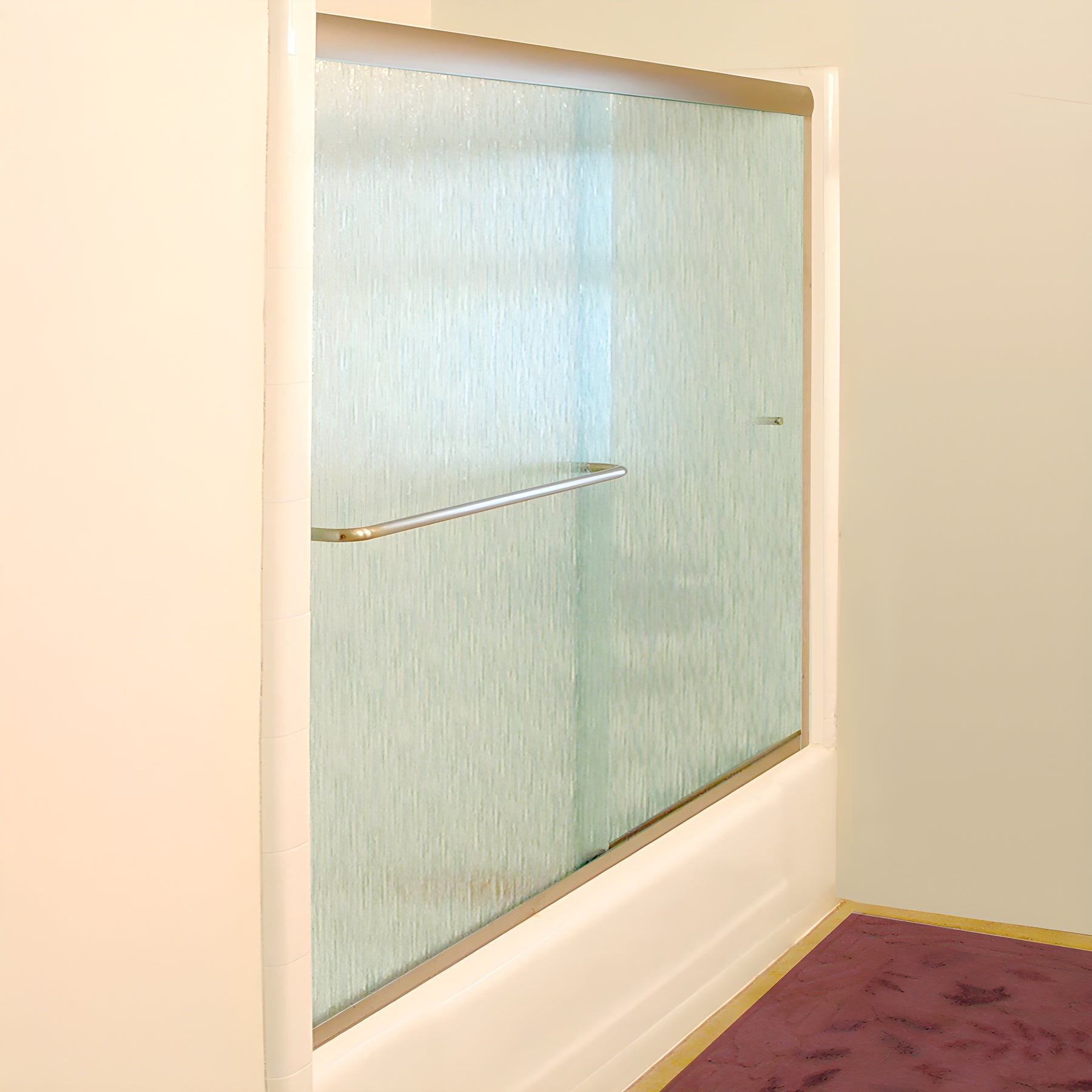

The EK Suite Series frameless sliding shower door kit (SKU: EK146060BN) is a low-profile, cost-effective solution for 1/4" (6 mm) tempered glass panels. Its clamp-on hanger bracket provides a no-drill installation that clamps directly to the glass (set screws only), offering smooth, quiet operation and reduced installation time compared with drilled-hanger systems.
The specially designed 2-9/16" (65 mm) header minimizes visible metal for a more frameless, all-glass appearance and is reversible so you can expose either the gently curved side or the flat side with top and bottom bevels. This kit is offered exclusively as inline units with metal side jambs and does not include kits with fixed panels.
Two popular stock sizes: 60" W x 60" H (1.52 x 1.52 m) and 60" W x 72" H (1.52 x 1.83 m). Custom inline sizes available up to the maximum recommended 60" W x 72" H (1.52 x 1.83 m). Available finishes include Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze.
SPECIFICATIONS:
Material: Extrusions (Aluminum); Towel Bar (Brass Tubing); Knob (Solid Brass)
Glass Thickness: 1/4" (6 mm) — glass not included in kit
Glass Fabrication: Towel bar – two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; knob – one 1/2" (12 mm) diameter hole
Maximum Recommended Size: 60" W x 72" H (1.52 x 1.83 m)
