- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Use Monolithic Tempered Glass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
- Solid Brass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- Glass Fabrication Required to Accommodate Clamps

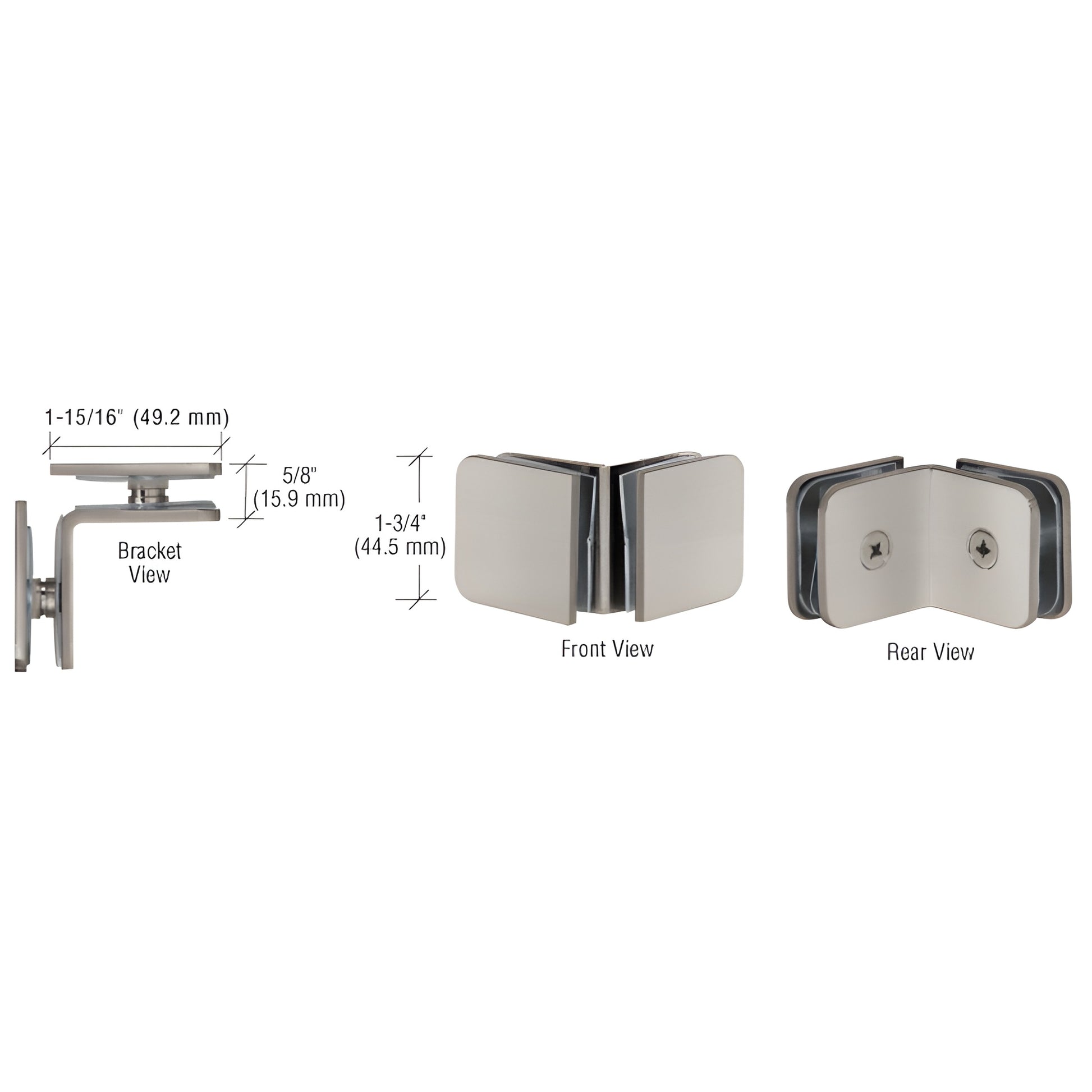

CRL Oversized 90 Degree Glass Clamps
perform the same function as our Standard 90 Degree Glass Clamps. They are especially suggested for use in 1/2" (12 mm) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness (from the edge of the glass to the closest edge of the hole) is required.
Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.
SPECIFICATIONS
Materials
Solid Brass
Glass Thickness Range
5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required
5/8" or 3/4" (16 or 19 mm)each panel.
Includes
Gaskets and Wood Screw for wall mount application.
NOTE
An additional set of gaskets is required for5/16" (8 mm) glass (Cat. No. UCG77).
