- Securely Hold Panels with Angle Adjustment Options for Shelves in Side-by-Side Installations
- For 1/4" and 5/16" (6 and 8 mm) Panels Mounted in Side-by-Side Position
- Available in Several Finishes
The

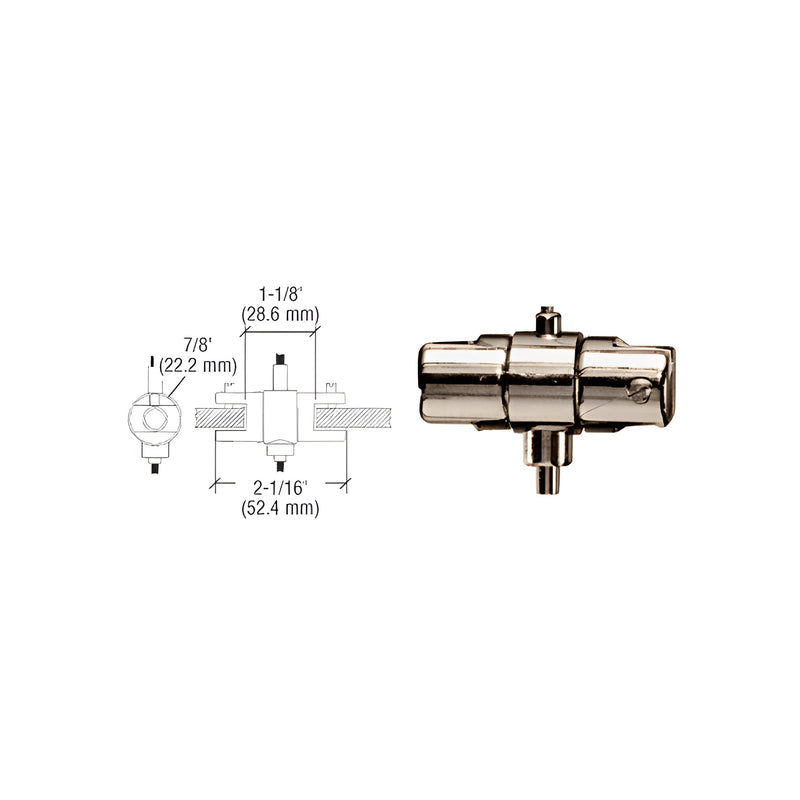

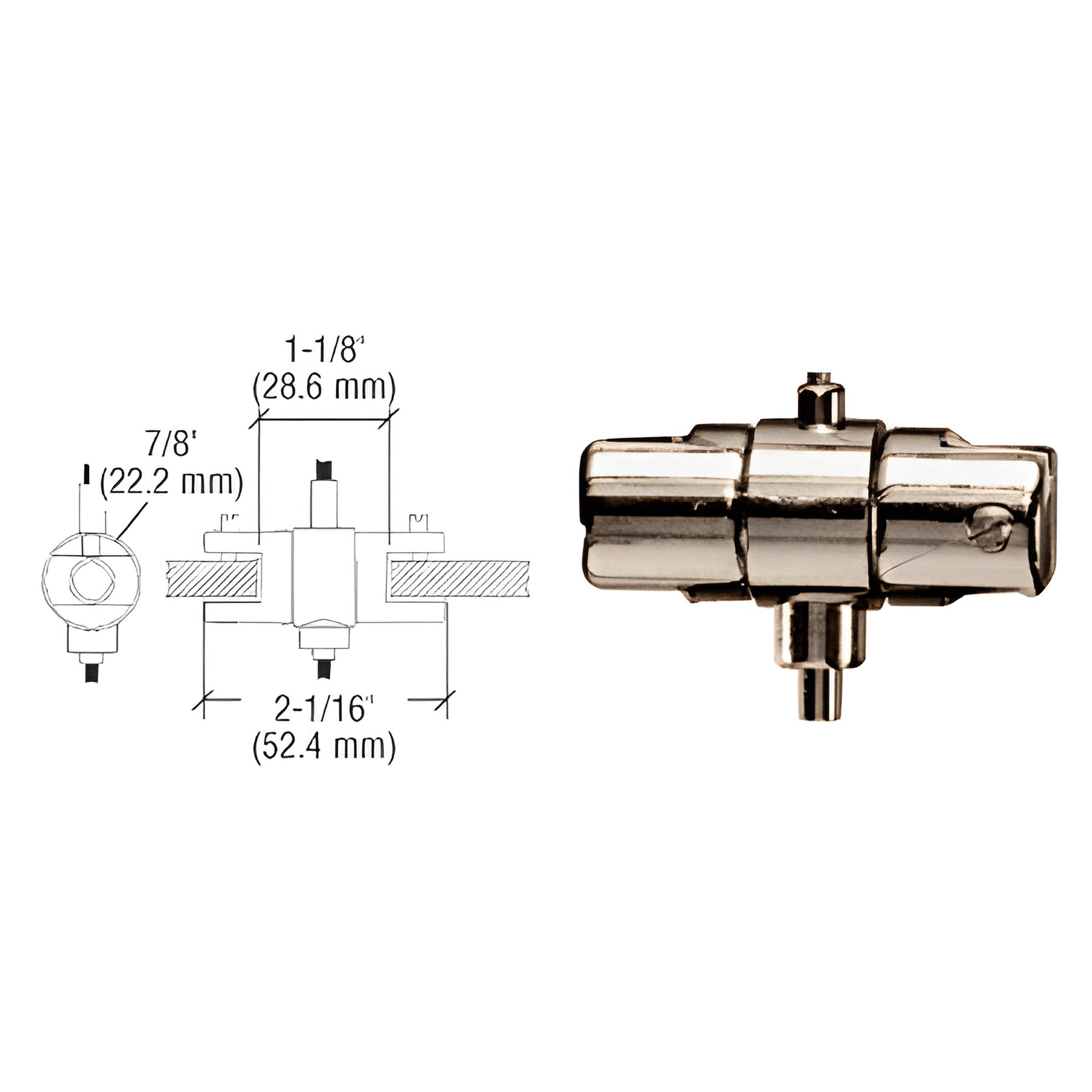

CRL Adjustable Double Shelf Bracket for the Cable Display System
has a highly efficient and secure set screw clamping system that permits the installed panel, mounted in side-by-side installations, to be angled or tilted to enhance your display or for signage purposes. Each side of the Adjustable Double Bracket can be rotated independently so that the side-by-side panels can be at different angles. To adjust the brackets to the desired angle, the "push tubes" are depressed and the brackets moved down the cable to achieve the necessary angle. For Signage purposes, only two or three cables need to be installed at the proper distance apart to accommodate the width of your sign or decorative panel.
The Fixed Brackets are very easily installed by inserting the stainless steel cable end thru the Bracket lower push tube. When the "push tube" is depressed, the Bracket can be adjusted to the desired position on the cable. The Brackets will stay firmly and securely in place on the 2 mm cable. To re-position the Brackets, simply depress the "push tube" and slide the Bracket up or down on the cable. The Brackets are designed to accommodate 1/4" to 5/16" panels. One each is the minimum order.
Product Warning
WEIGHT LIMITATIONS
When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36 kg). Each shelf can bear a total weight of 20 lbs. (9 kg), when used with CB74, CB76 and CB78 Ceiling Mount Fittings. If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18 kg).
