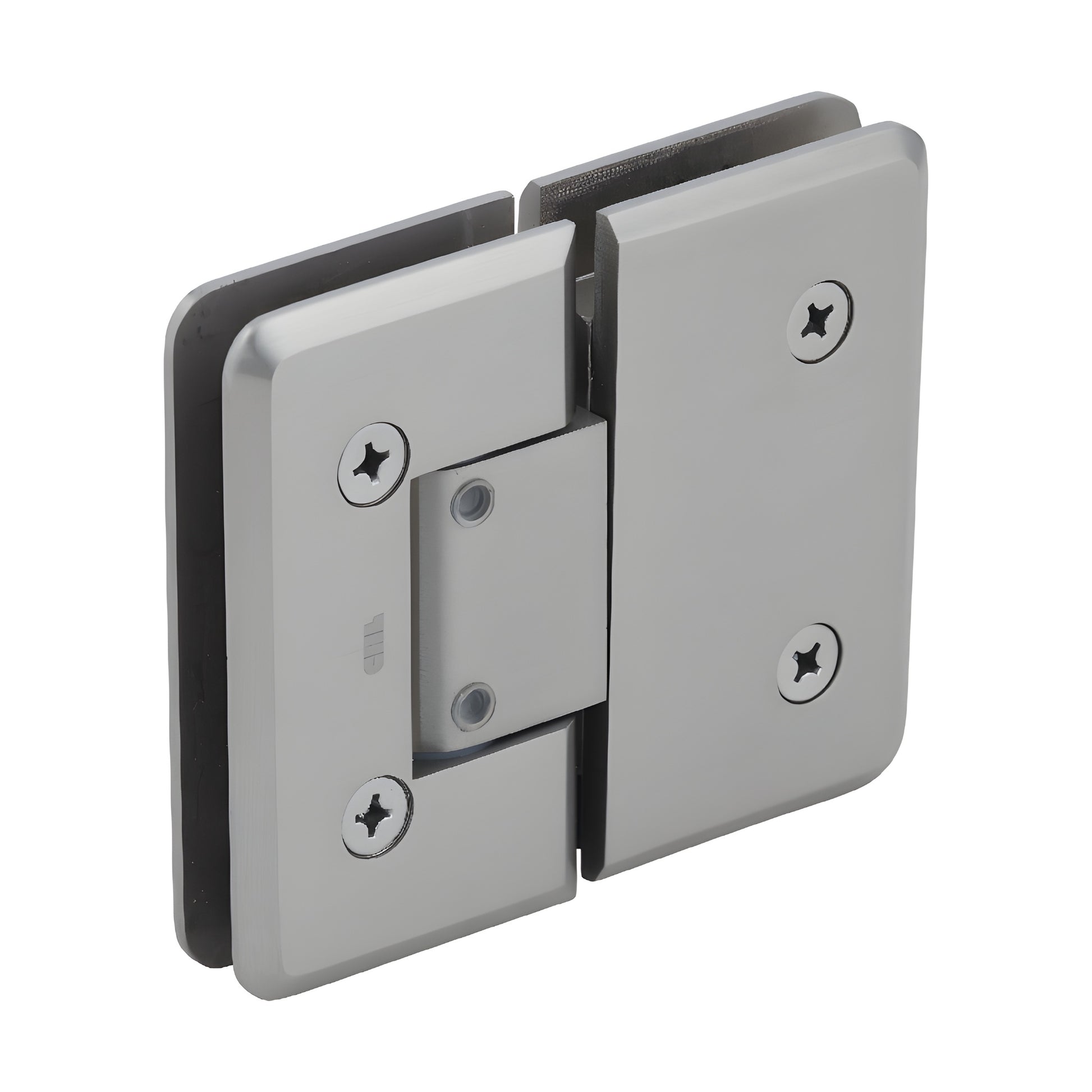

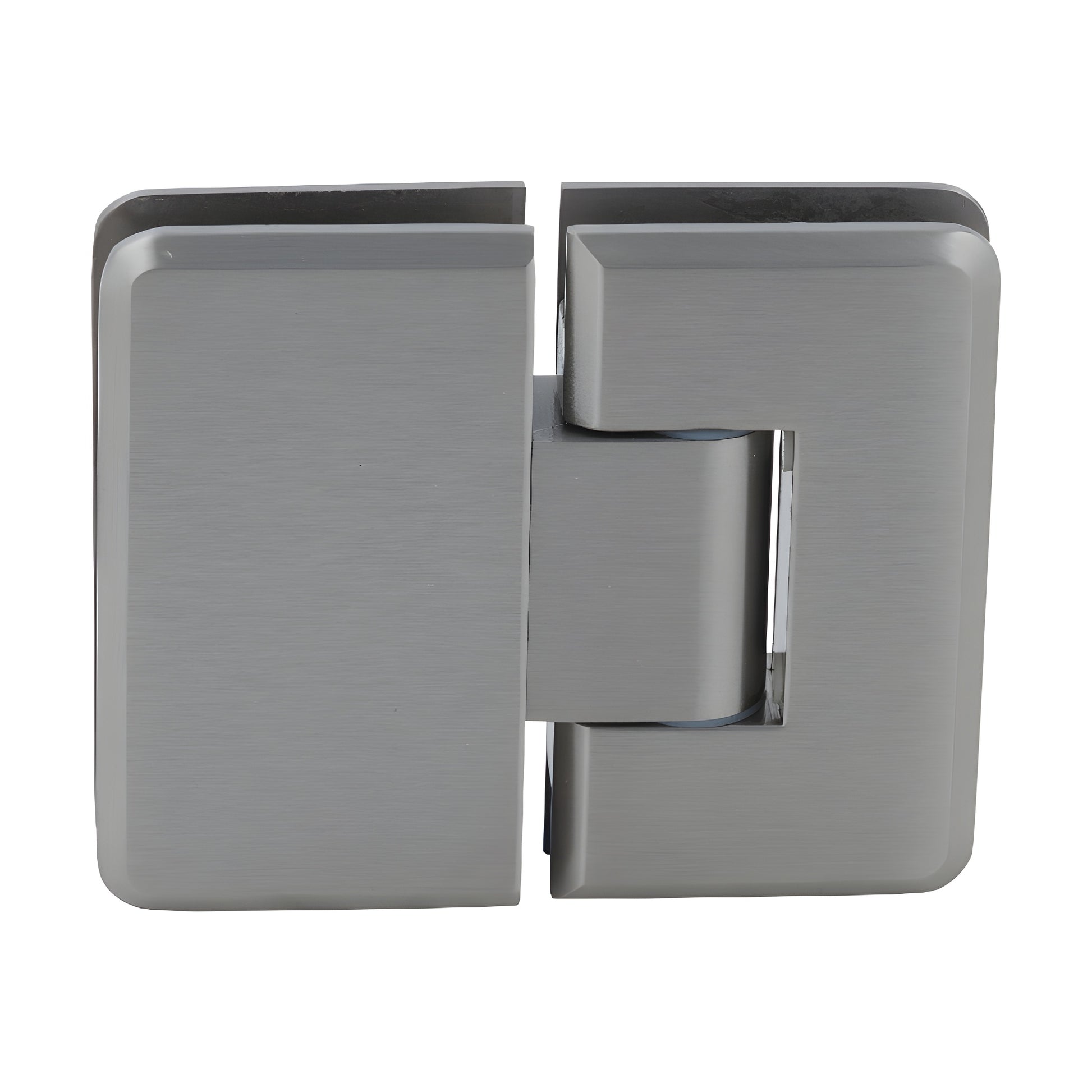

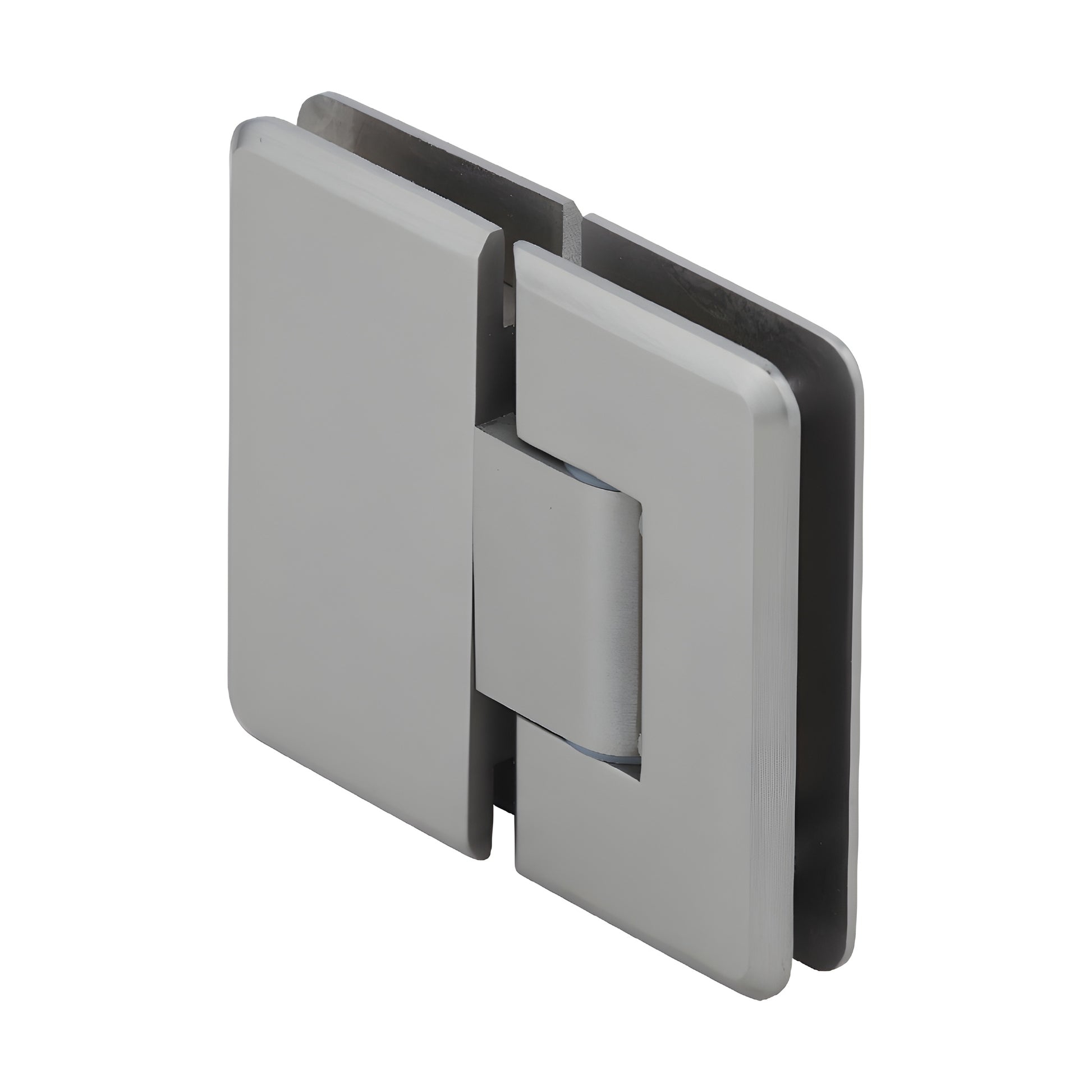

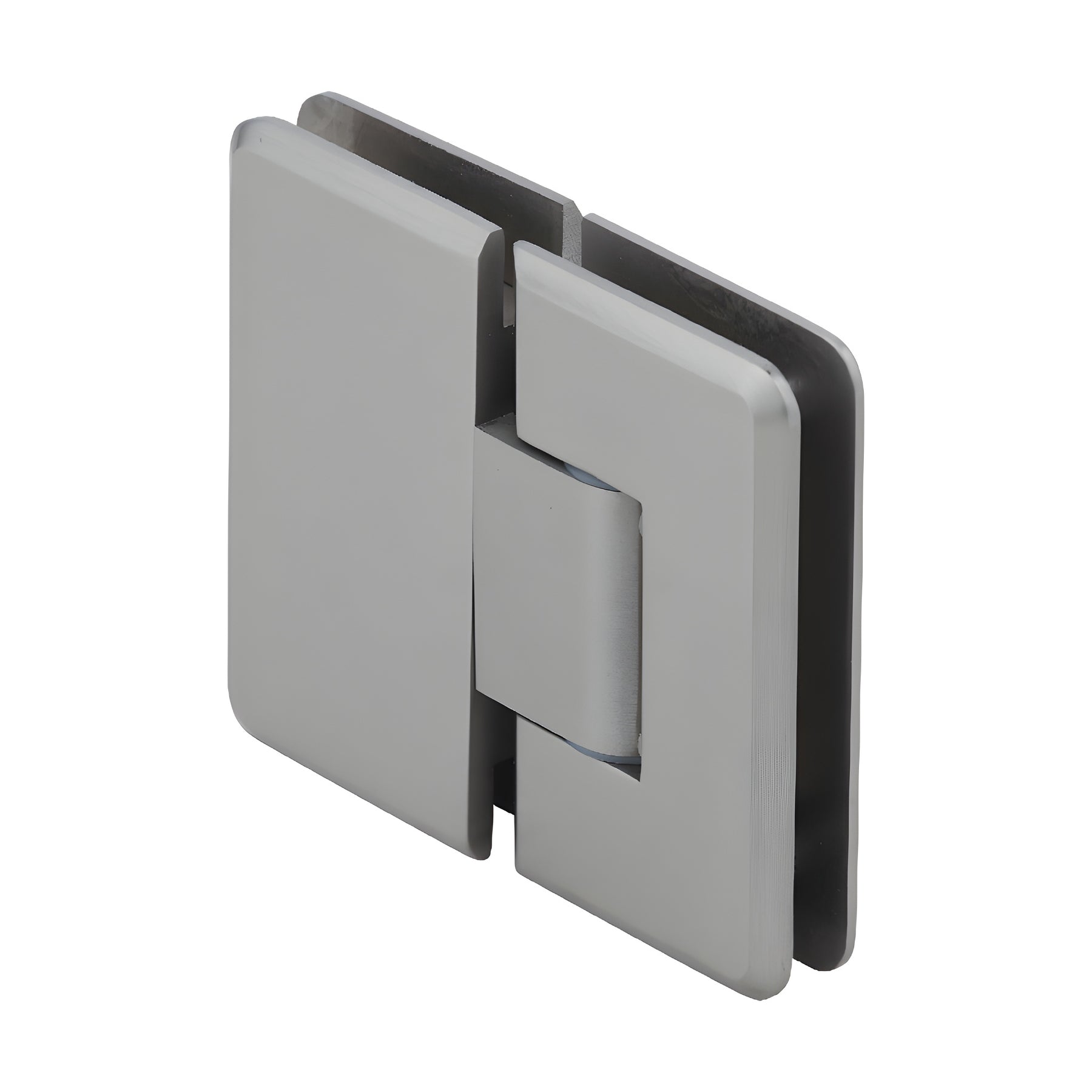

CRL Cologne 380 Brushed Nickel 180° Adjustable Shower Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes, including custom finishes on request
• Adjustable 180º glass-to-glass hinge — self-centering and reversible
• For use with monolithic tempered safety glass

The CRL Adjustable Cologne Series (SKU: C0L380BN) evolves the popular Cologne hinge into an adjustable, self-centering brass shower door hinge. Final angle adjustment (up to 90º) is made after installation: loosen the Allen set screws, rotate the door to the desired closed position, then tighten to lock. The hinge supports a 90º swing inward and 90º outward from the factory set position; adjusting toward one direction will reduce swing in that direction. For outward-pulling doors (clear door jambs) the hinge can be set to close 5º inside the shower for a snug jamb seal.

Using two hinges with 3/8" to 1/2" (10–12 mm) glass, the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" (10–12 mm) glass, the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90º without removing the door — ideal for custom shower enclosures and retrofit installations
Construction: Solid brass for durability and corrosion resistance
Hinge Swings: 90º in and 90º out (at factory set position)
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request by contacting CRL Technical Sales.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales Department.
