CRL
CRL Brushed Nickel Drilled Glass Shelf Brackets for Cable Display
Item# CB109
Shipping Weight: 1.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |

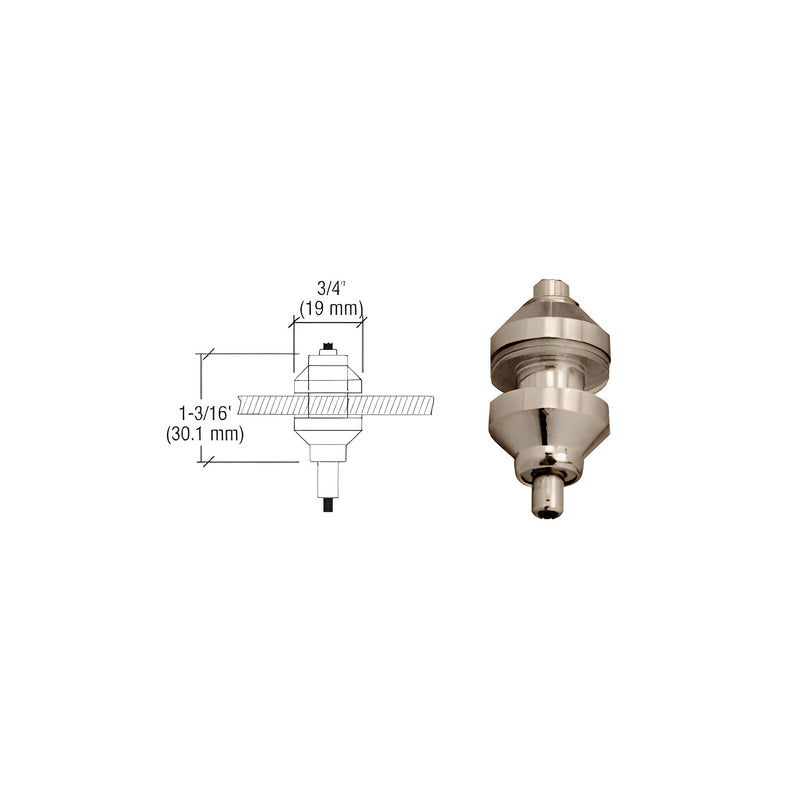

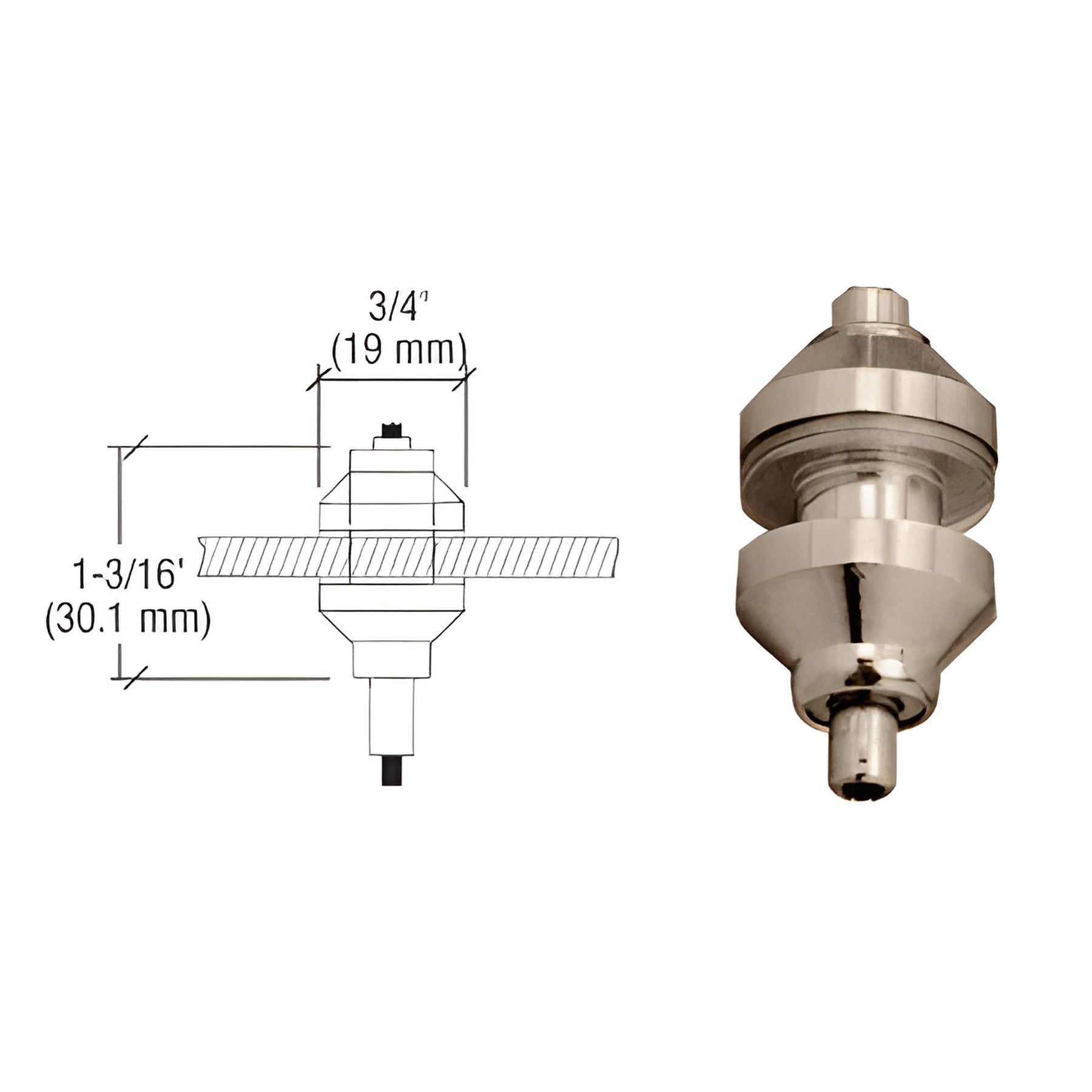

Diameter
3/4 in. (19.1 mm)
Finish/Color
Brushed Nickel
Glazing Thickness
5/16 in. (8 mm)
Length
1-3/16 in. (30.2 mm)
Material
Brass
Weight Capacity
Each Column (4 cables) Can Bear A Total Weight Of Up To 80 lbs. Each Shelf Can Bear A Total Weight Of 20 lbs.
- Securely and efficiently holds panels to stainless steel cables
- Chrome-plated finish; available in several finishes
- Installs into 1/2" (12 mm) drilled holes in glass, acrylic, or wood panels
- Unscrews for easy assembly and simple shelf repositioning
The CRL Chrome Plated Drilled Glass Shelf Brackets for the Cable Display System (SKU: CB109) fasten panels to stainless steel cables for clean, modern cable display shelving. A 1/2" (12 mm) drilled hole is required in glass, acrylic, or wood panels. The bracket unscrews to allow insertion of the cable through the lower half, through the panel, and into the upper half, then screws together to lock. Once installed, depress the lower part of the bracket and slide the shelf to reposition it quickly—ideal for adjustable cable display shelving systems. Minimum order: one each.
Product Warning:
WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36 kg). Each shelf can bear a total weight of 20 lbs. (9 kg), when used with CB74, CB76 and CB78 Ceiling Mount Fittings. If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18 kg).
