Product Details
- Patents: U.S. 9,364,121; Canada 2,853,462; Australia 2012328876
- Headerless System Offers Frameless Look Both Vertically and Horizontally
- Bottom Rolling System has Integrated Height Adjustment
- Rollers Include Anti-Derail/Anti-Pinch Features
- For Use with Only 1/2" (12 mm) Thick Tempered Safety Glass
- Stocked in Four Popular Finishes
- Glass Brackets and Door Handle or Knob Sold Separately

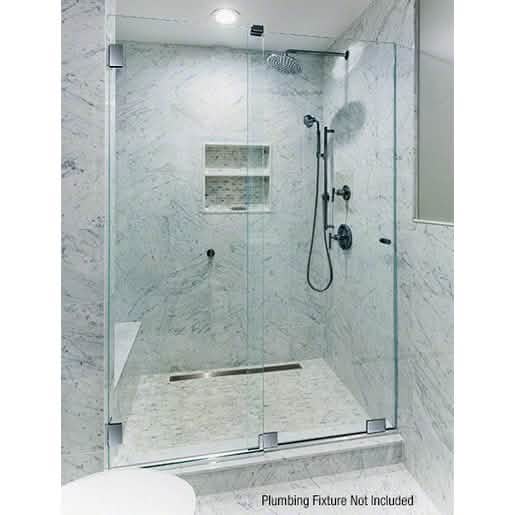

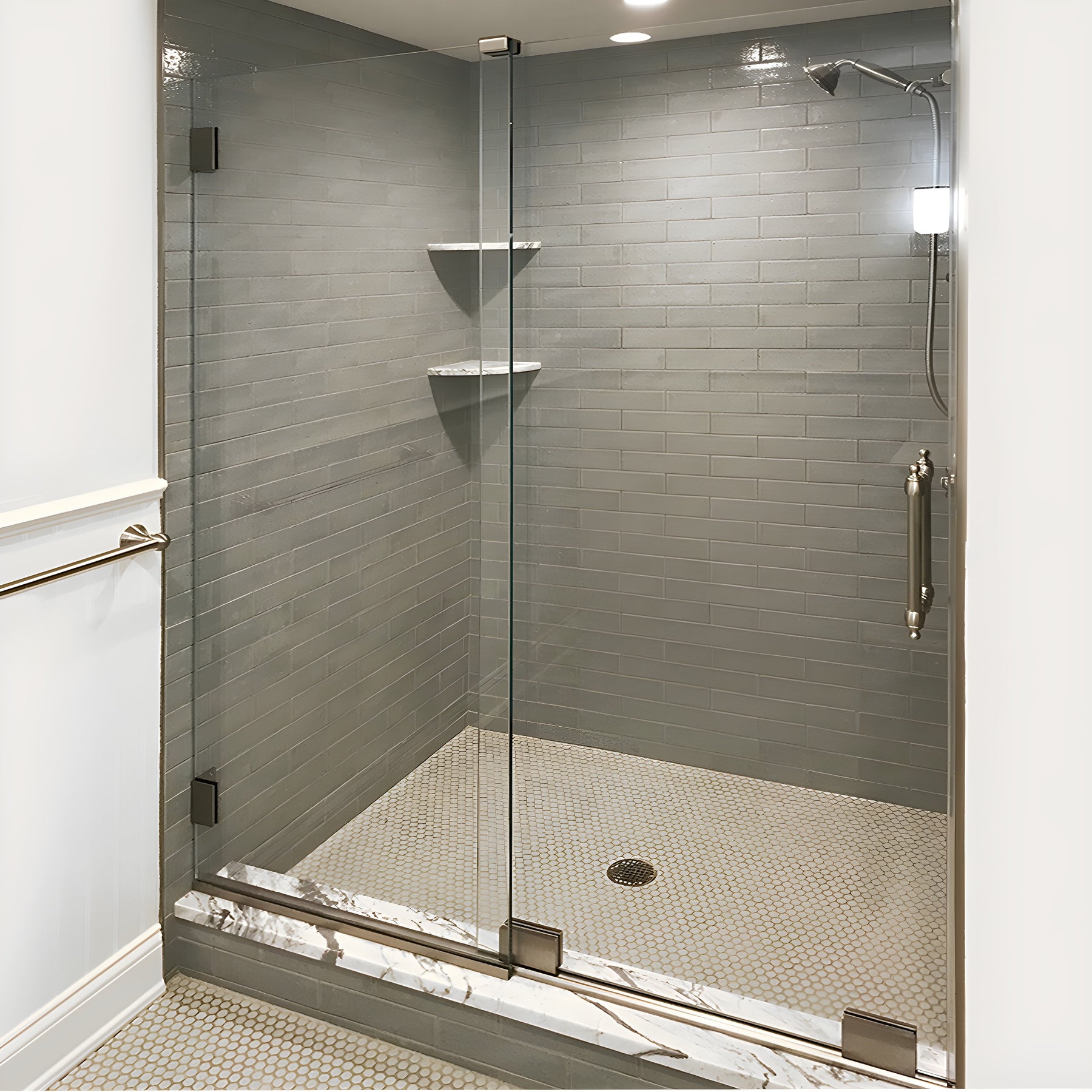

The CRL Essence Series Basic Sliding Shower Door Kit with Squared Corner Rollers is a headerless system that offers a frameless appearance both vertically and horizontally. Smooth and quiet operation is the cornerstone of the Essence Series. Water management is achieved horizontally via the use of the bottom track, and vertically with the use of our DK98L Clear Seal. The anti-derail/anti-pinch guard features of the squared corner shaped bottom rollers make them unique. For use with only 1/2" (12 mm) thick tempered safety glass (not included). Stocked in four popular finishes.
Kit Includes
Two - Bottom Rollers
One - Spanner Wrench for Roller Adjustment
One - Top Door Guide
One - 64" (1.63 m) Bottom Track
One - 98" (2.49 m) U-Channel
One - 98" (2.49 m) Plastic L-Seal
One - SDCEC12 End Cap for Channel
One - 1/16" (1.6 mm) Neoprene Setting Block
NOTE: Glass Brackets, Handle or Knob, and Other Accessories Sold Separately.
Product Warning:
Maximum Door Size: Must not exceed 84" (2.13 m) in height or 127 lbs. (57.6 kg).
GE90S9(Square) or CL90S(Round) Wall Clamps must be used on fixed panel and are sold separately.
