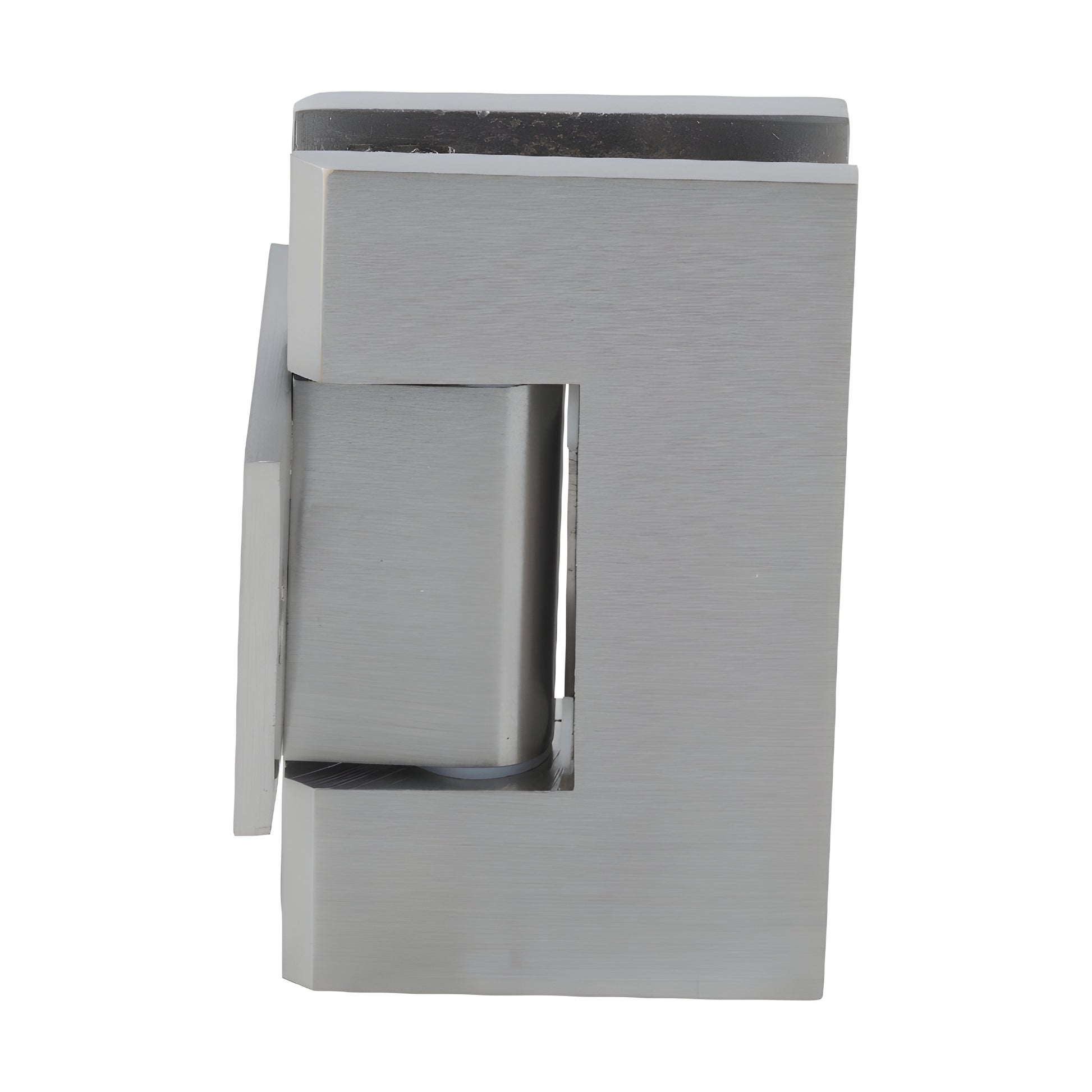

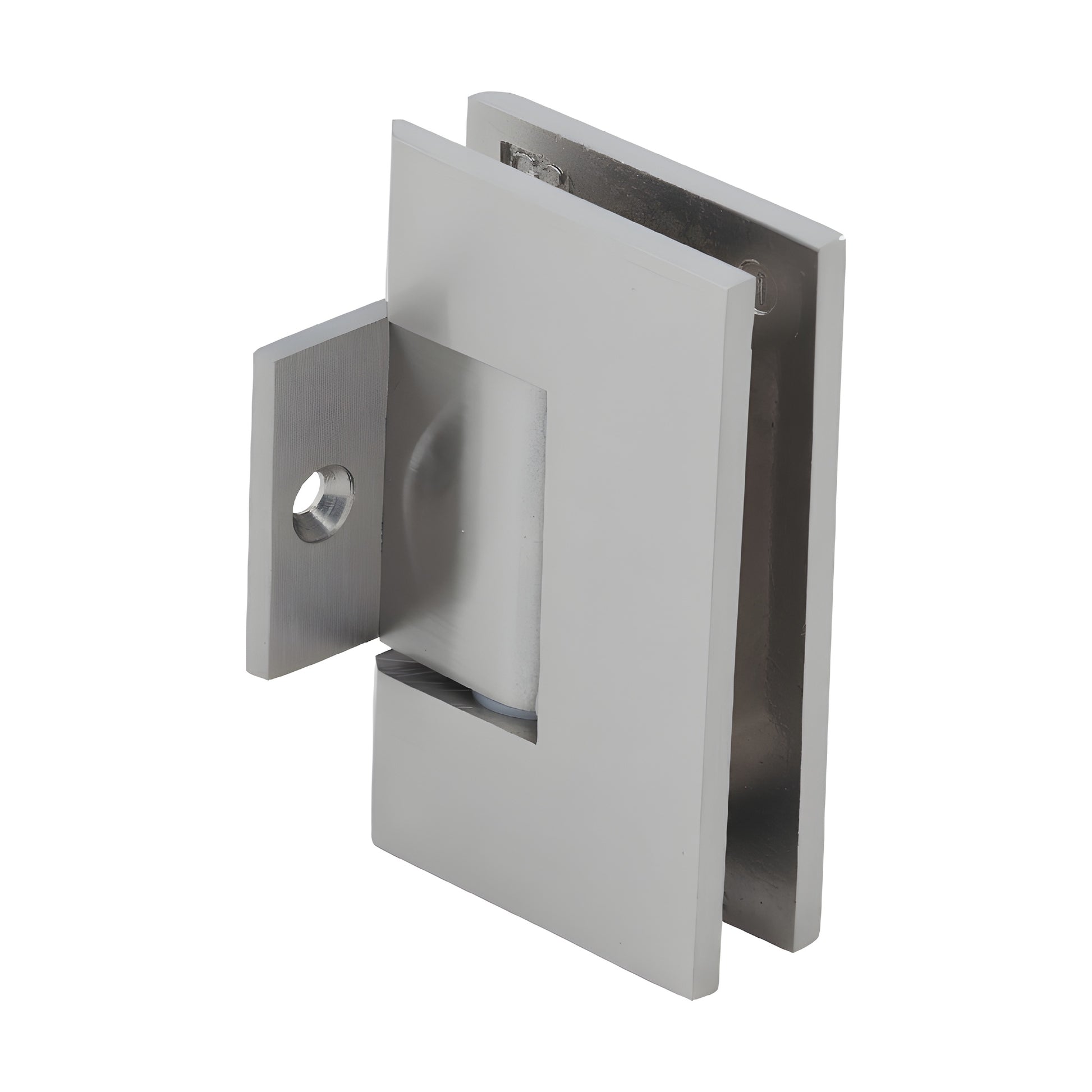

CRL Geneva 280 180° Brushed Nickel Pony Wall Mount Glass Door Hinge

• Self-centering with reversible 5° pivot pin (custom pivot pin available)
• Available in many standard finishes
• 3 year warranty
• Pony wall mount for 180° applications (model GEN280BN)
• Use with monolithic tempered safety glass

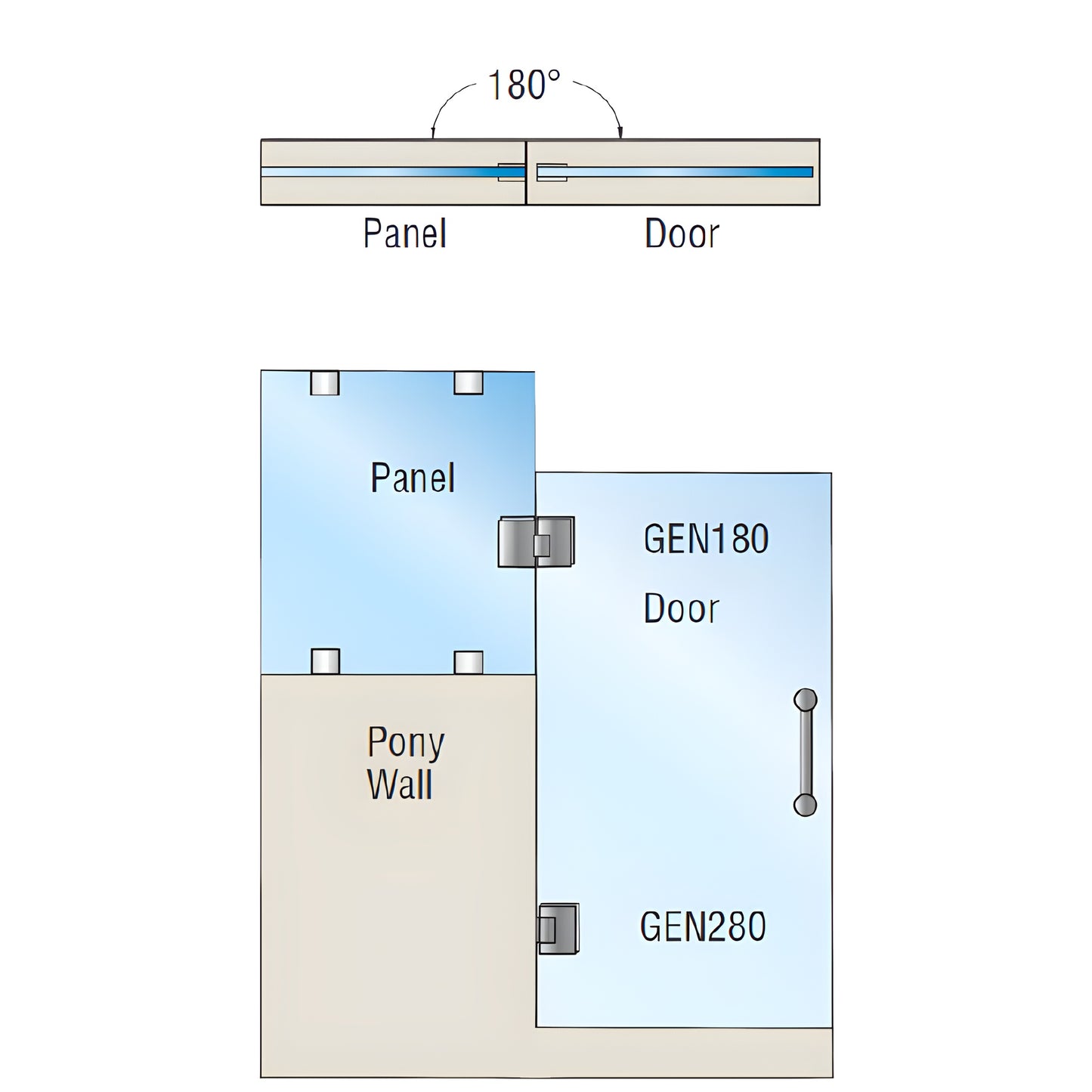

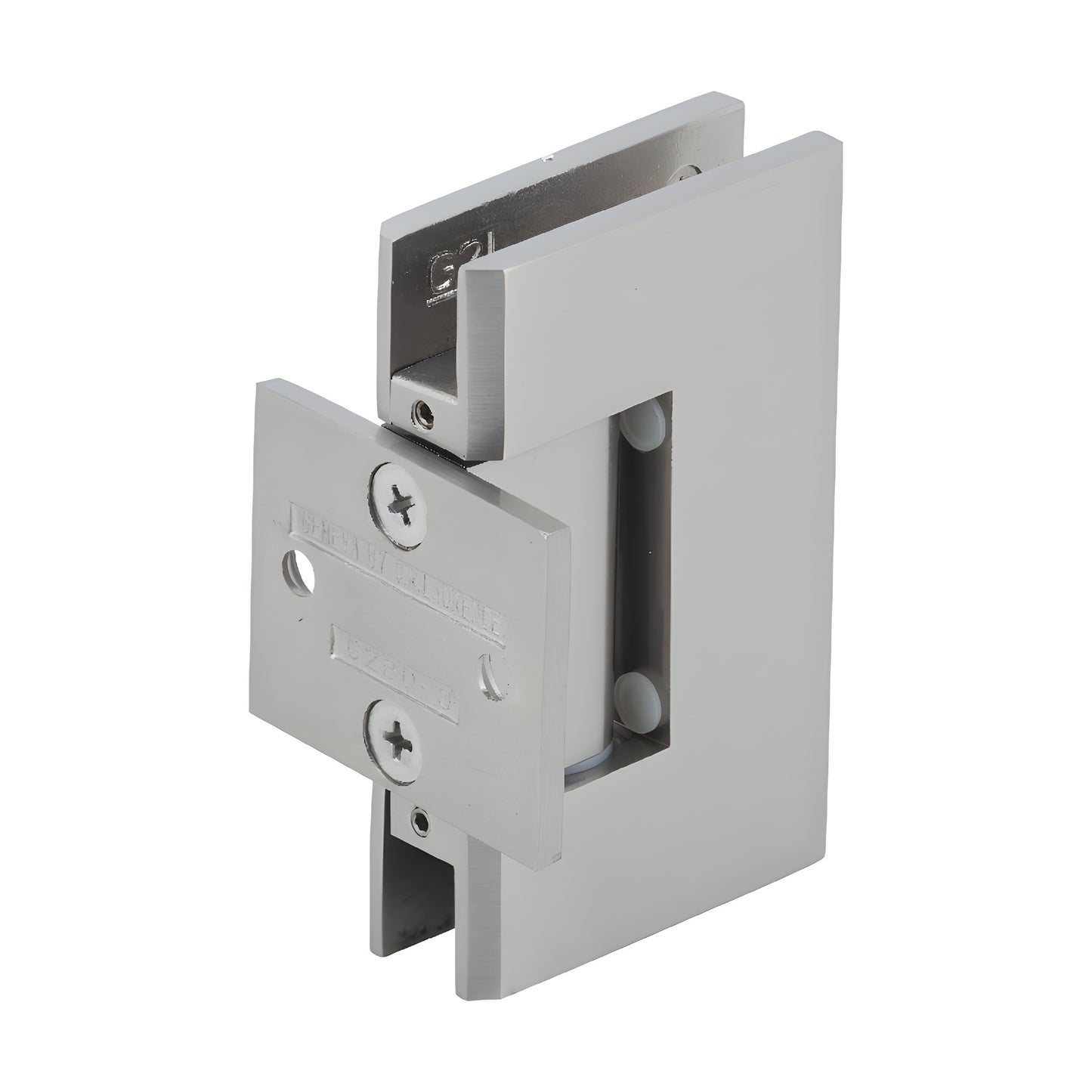

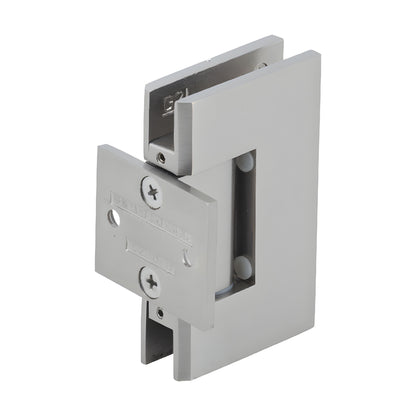

These CRL Geneva Pony Wall Mount Series hinges (SKU: GEN280BN) replace standard wall-to-glass hinges when mounting a hinge on a pony wall with a glass-to-glass hinge above. The GEN280BN is designed specifically for 180° shower door and glass partition applications, eliminating the need to recess the tile or marble to align pivot points. Geneva Pony Wall Mount Hinges are modified with a shortened center block (one centering spring) and a compact back plate (two mounting holes) while retaining the reversible 5° pivot pin used on standard Geneva hinges.

Installation note: For 135° installations use the GEN245 model and ensure the pony wall face is at a 45° angle to the wall and 90° to the door plane.

Load capacity:
Using two hinges with 5/16" to 1/2" glass (8–12 mm): holds up to 80 lbs (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8–12 mm): holds up to 120 lbs (54 kg), max door width 32" (813 mm).

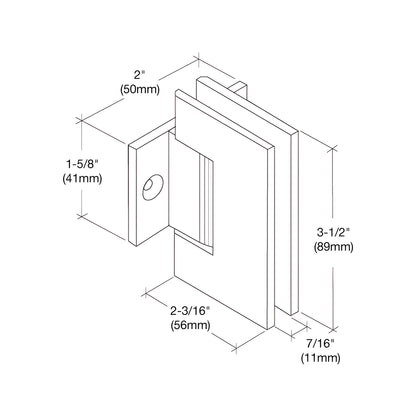

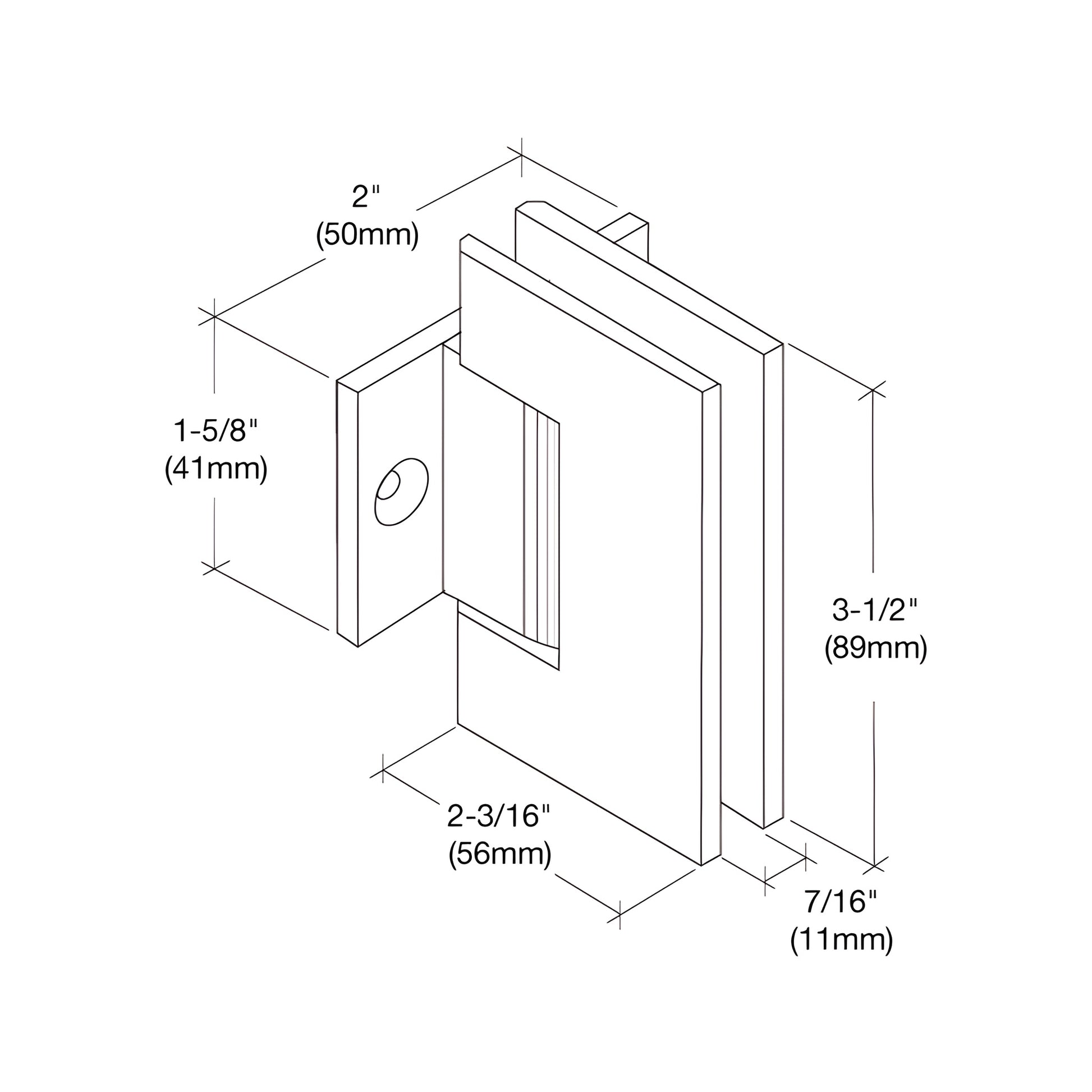

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Surface-mounted to tile or marble — no recess cut required to vertically align pivot points (ideal for retrofit pony wall glass shower installations)
Construction: Solid brass
Hinge Swings: Approximately 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) tempered glass.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications obtain approval from CRL Shower Door Technical Sales. Use only the template included; cut-out dimensions may not match other brands.
