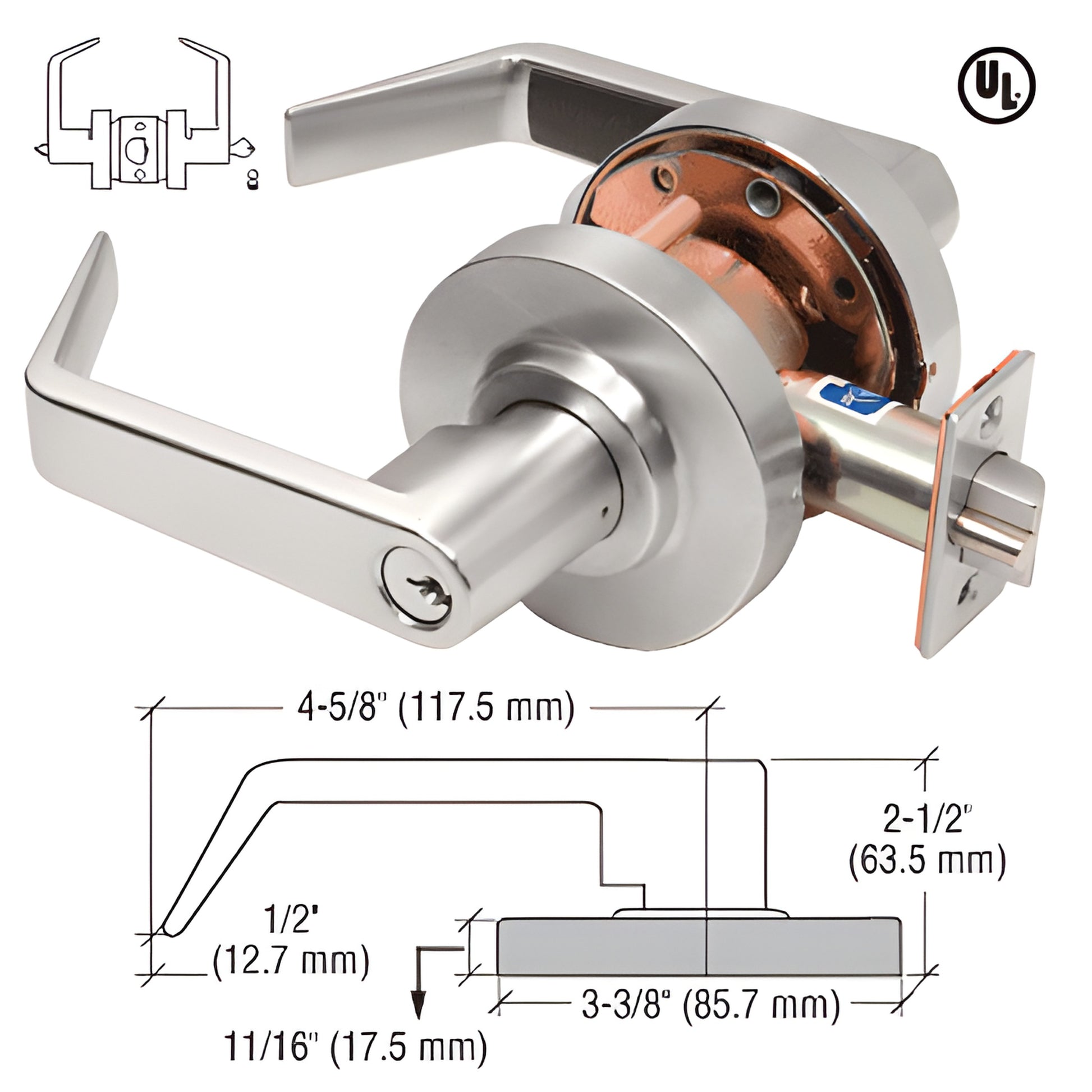

CRL Brushed Nickel Grade 2 Entrance Lever - Schlage® 6-Pin Lockset
CRL Brushed Nickel Grade 2 Entrance Lever - Schlage® 6-Pin Lockset
Regular price
$126.96 CAD
Regular price
Sale price
$126.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D65ENTBN
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 2
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Nickel
Fire Rating Hour
3
Function
Entrance
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
'C' 6-Pin
Operation Type
F109 Entrance Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Standard Duty Lever Lockset
UL Listed
Yes
Overview
- Schlage® 'C' 6-Pin Keyway
- ANSI A156.2 Grade 2
- 3 Year Warranty
- UL Listed (3-hour fire rating)
These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed, reversible, and designed for commercial entrance doors. They fit door thicknesses from 1-3/8" to 1-3/4" (35–45 mm) with a 2-3/4" (70 mm) backset. Choose Schlage® 'C' 6-pin keyway or 7-pin Small Format Interchangeable Core (SFIC). Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. SKU: D65ENTBN.
Entrance function: Pushing the inside button locks the outside trim and requires a key to unlock. Pushing and twisting the button locks the outside lever and always requires a key to unlatch. Inside lever always allows free egress.
Shop now for a fire-rated, heavy-duty commercial lever lockset engineered for secure entrances.
