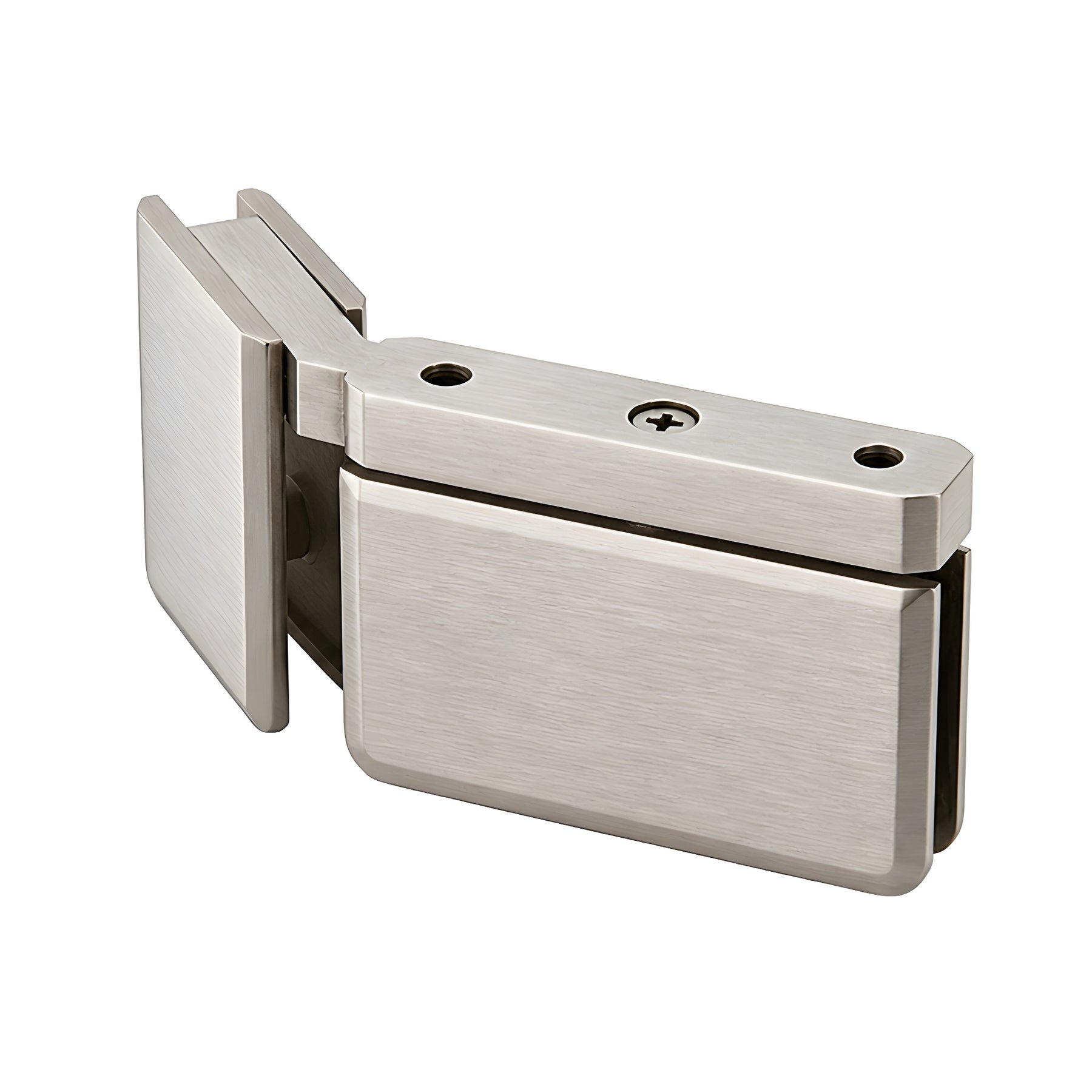

CRL Prima Left-Hand 135° Brushed Nickel Hinge with U-Clamp for Glass
CRL Prima Left-Hand 135° Brushed Nickel Hinge with U-Clamp for Glass
Regular price
$246.00 CAD
Regular price
Sale price
$246.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PPH0735LBN
Shipping Weight: 2.29 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.29 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Beveled
Edge Profile
Beveled
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Brushed Nickel
Glass To Glass Angle
135
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Left Hand

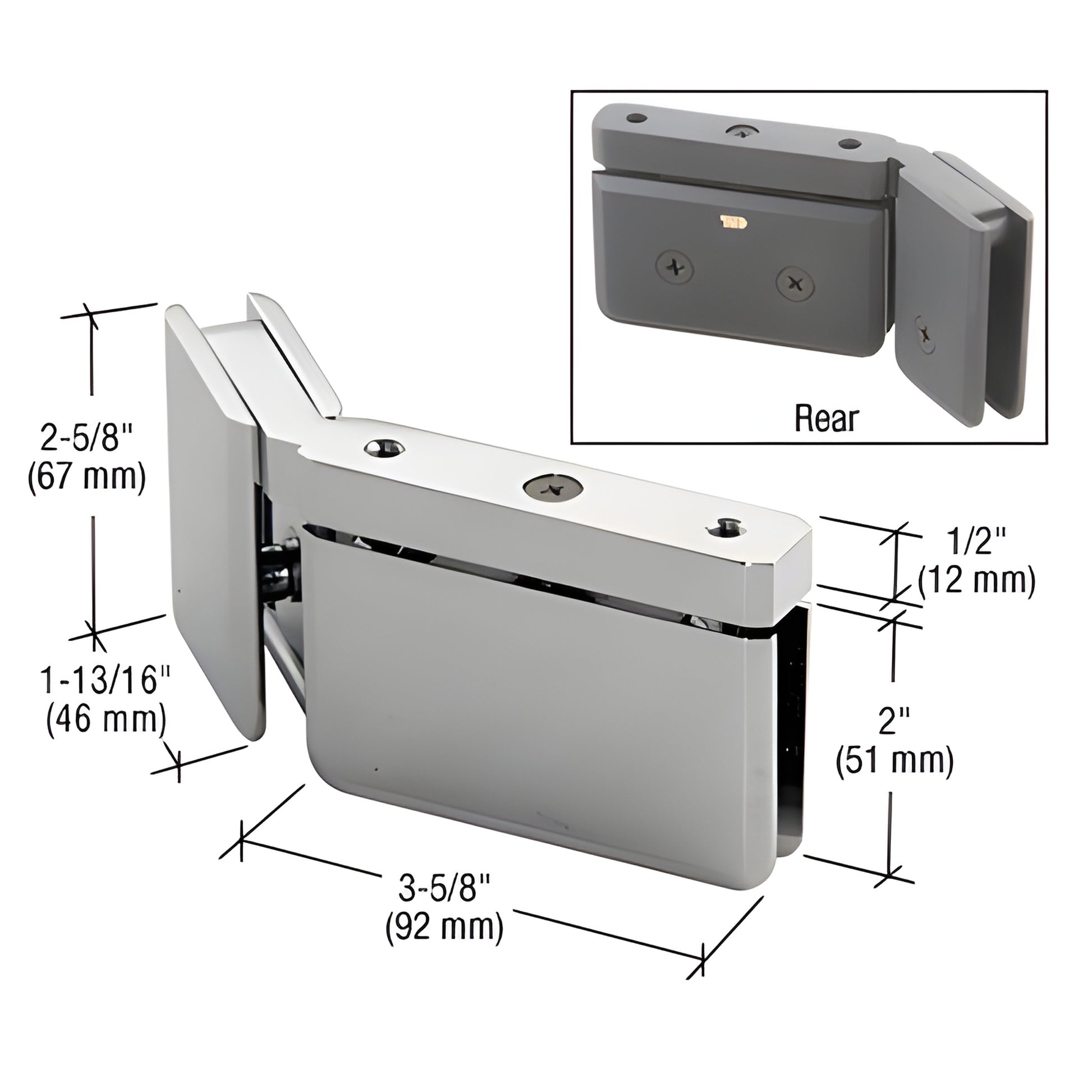

Height
2-5/8 in. (67 mm)
Height - Door Portion
2
Height - Sidelite Portion
2-5/8
Material
Brass
Maximum Door Weight
100 lbs. (45.4 kg)
Maximum Door Width
31 in. (787 mm)
Mounting Type
Head & Sill Mount
Opening Style
Pivot(floor)
Self-Centering
Yes
Series
Prima
Width - Door Portion
3-5/8 in. (92 mm)
Width - Sidelite Portion
1-13/16
Overview
- Alternative to traditional header systems — mounts a shower door next to a 135° fixed panel without a header
- CRL engineered design criteria must be met before using this hinge
- Use with monolithic tempered safety glass
- Compatible with 3/8" or 5/16" (10 or 8 mm) thick tempered safety glass
- Stocked in six popular finishes; custom finishes available
The CRL 135 Degree Prima Hinge with U-Clamp (SKU: PPH0735LBN) provides a no-header shower hinge solution for 135° configurations. Install at the top of the enclosure to secure a shower door adjacent to a 135° fixed panel. The hinge can also be used at the bottom of the door or paired with a standard PPH01 model and a separate U-clamp or U-channel. Ideal for frameless shower doors requiring a 135 degree shower hinge and U-clamp mounting for tempered safety glass.
NOTE: See "Design Criteria" for guidelines and maximum panel sizes this hinge supports. CRL engineered design criteria must be followed for safe use.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. For any other application, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge — cut-out dimensions for CRL hinges may not match other brands.
Shop the CRL 135° Prima Hinge with U-Clamp (PPH0735LBN) today to install a reliable no-header shower door hinge solution.
