CRL Brushed Nickel Long Round Floor Base Fitting for Cable Display System

• Attractively Designed to Attach Cables to Wood Flooring or Laminate Base
• Available in Several Finishes

The

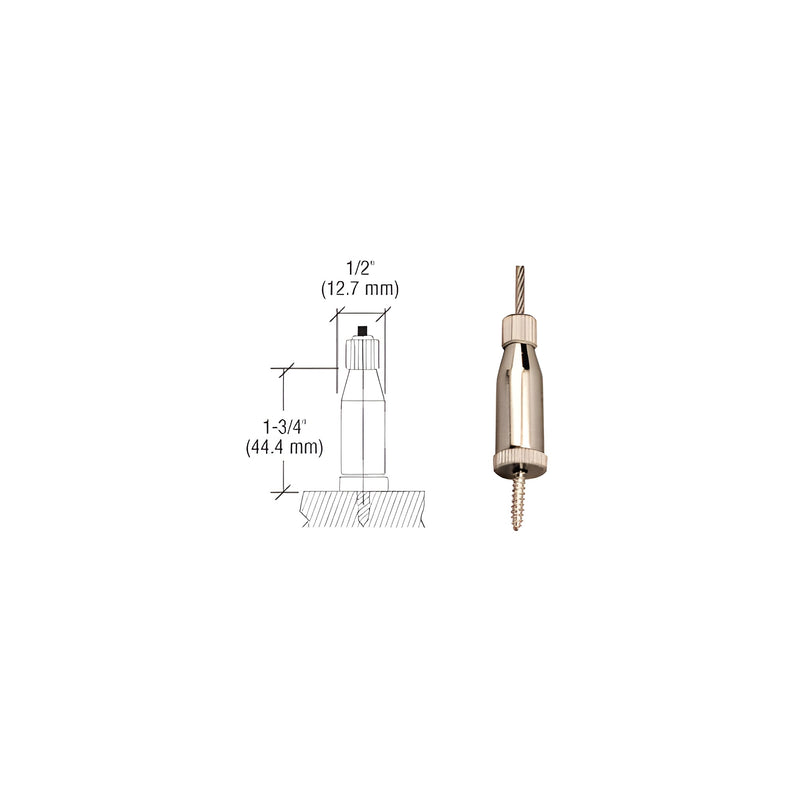

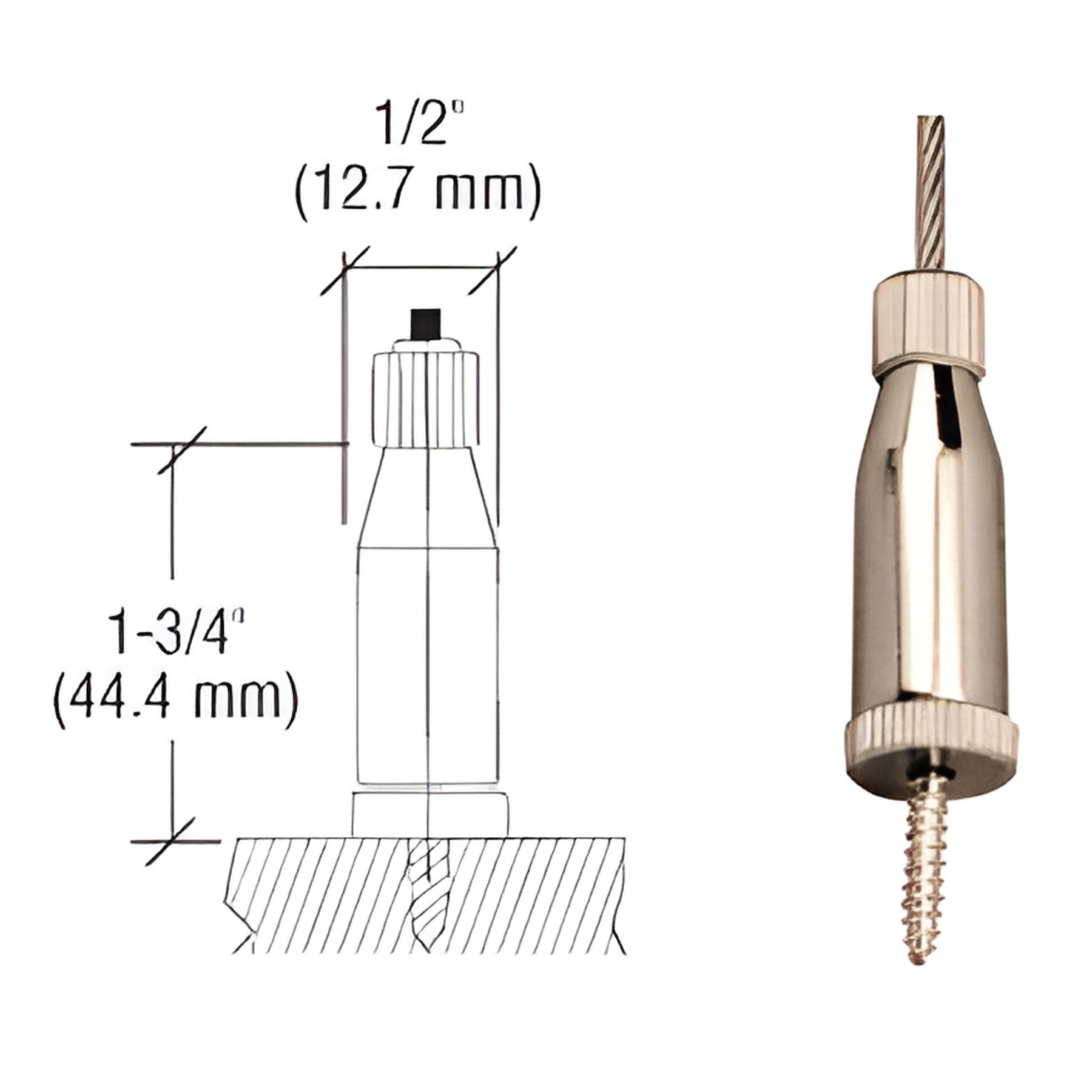

CRL Chrome Plated, Long, Round Floor Base Fitting for the Cable Display System

has a set screw clamping system which allows fast tensioning of the cable system. The Long, Round Floor Base Fitting screws into a floor or a wood laminate base and gives the fixture designer options in terms of base fittings since the

Short Round Floor Base Fitting

also performs the same function.

One each is the minimum order.

When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings. If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18kg.).

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
