CRL Brushed Nickel Long Set Screw Clamp for 1/4" to 5/16" Glass

Finish / Colour (3)

Overview

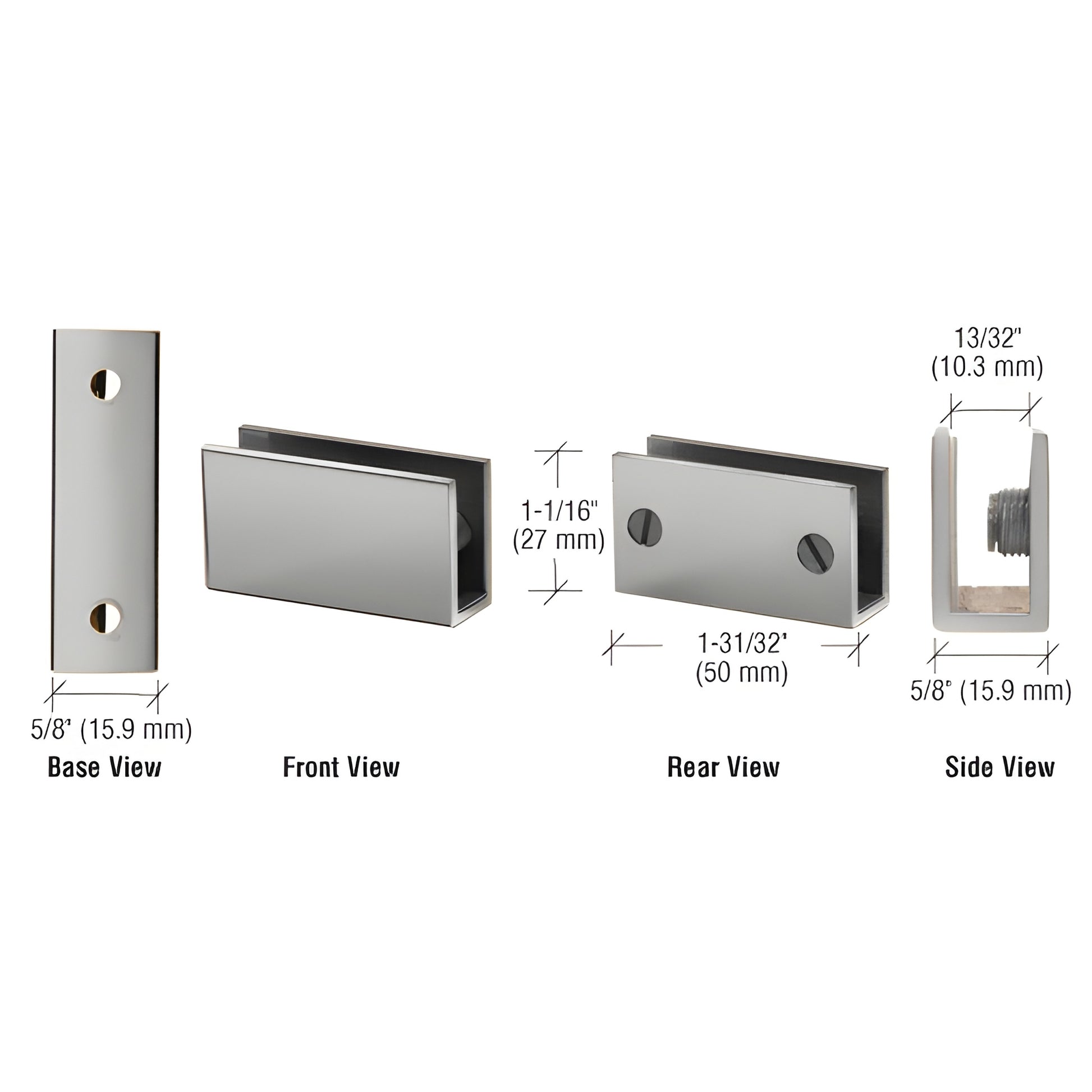

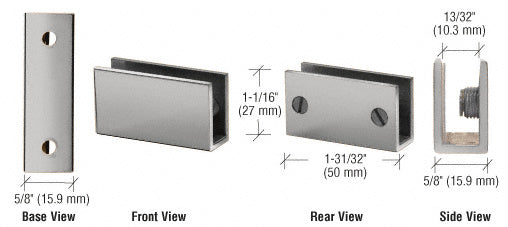

SKU	EH39
Sold as	1 Pack
Finish/Color:	Brushed Nickel
Glazing Thickness	1/4 in. To 5/16 in. (6mm To 8 mm)
Height	1 in. (25.4 mm)
Length	1-31/32 in. (50 mm)
Material	Brass
Width	5/8 in. (15.9 mm)

Description

Product Details

For 1/4" to 5/16" (6 to 8 mm) Glass
Use Cat. No. 820 Tuff-Pak Tape for 1/4" (6 mm) Glass
No Holes to Drill

CRL Rectangular Shelf Clamps are designed to solve glass mounting problems such as flush glazing, connecting panels for railing systems or attaching shelves to walls. These long Clamps have the attaching strength to hold glass securely. The glass is secured by two plastic tipped set-screws.

NOTE: We recommend that the shelf depth not exceed 5" (127 mm) and the clamps be installed into wall studs or a wood substrate. #8 flat head screws work best for installation.
