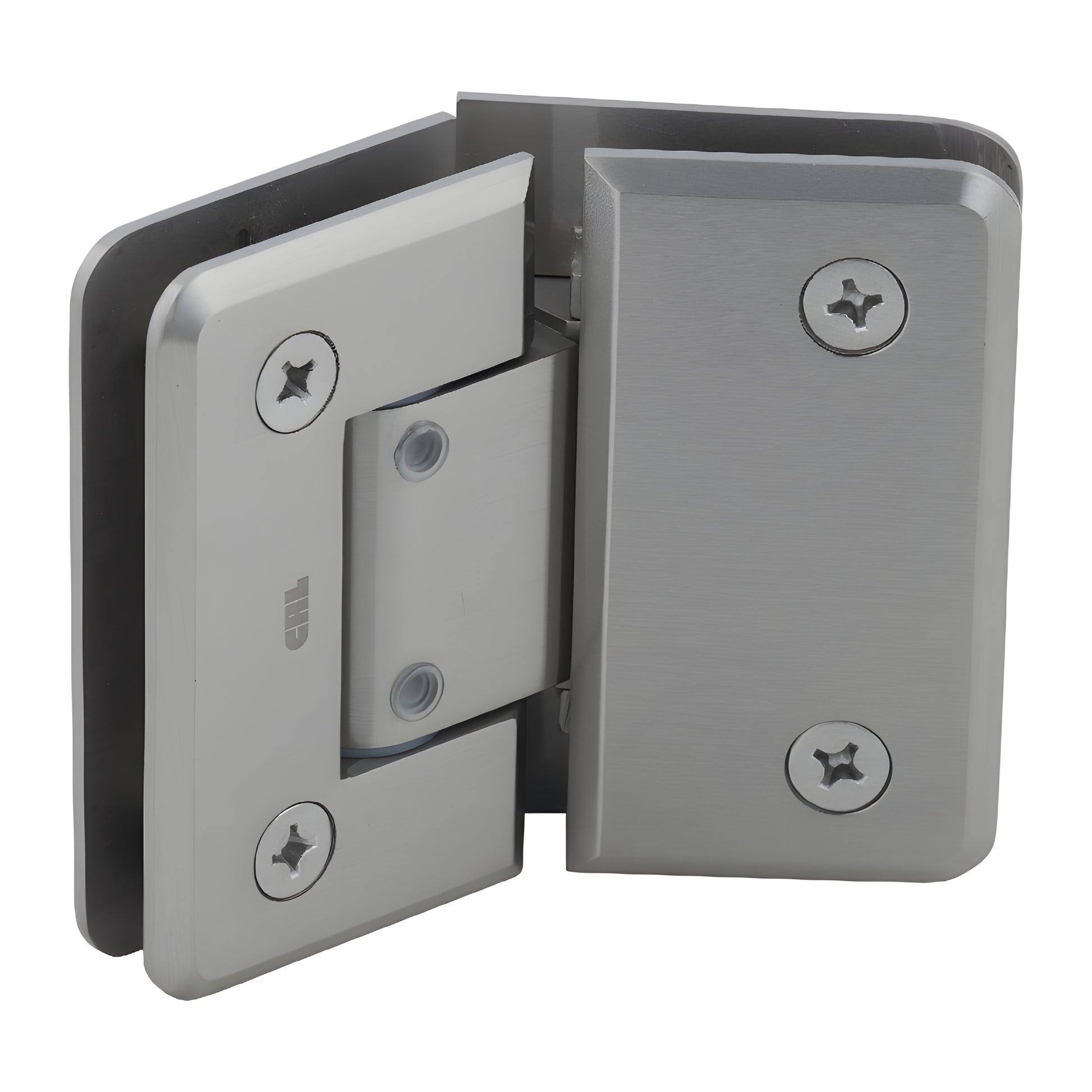

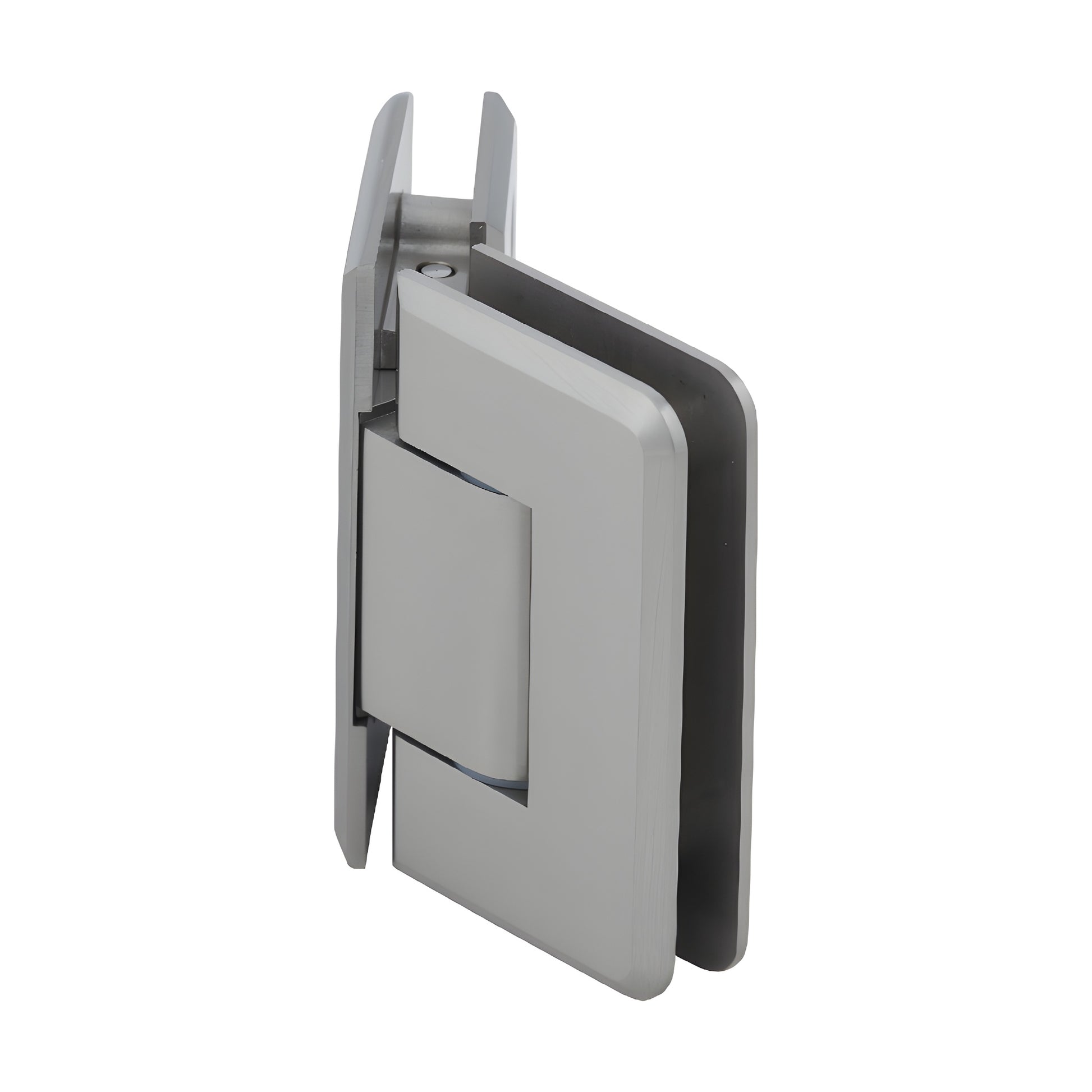

CRL Pinnacle 345 135° Brushed Nickel Adjustable Shower Glass Hinge

• Adjustable to any angle up to 90° without removing door
• Available in several beautiful finishes
• Three year warranty
• Adjustable 135° glass-to-glass
• Use monolithic tempered glass

CRL Adjustable Pinnacle Series Hinges upgrade the popular Pinnacle Hinge with on-door angle adjustment for glass shower doors. Adjust the closing position up to 90° after installation by loosening the Allen set screws, rotating the door to the desired position, then tightening the screws to self-center the door. The hinge allows a 90° swing inward and 90° outward (factory-set position); adjusting away from factory position will reduce full swing in that direction. For outward-swinging doors using a clear door jamb, the hinge can be set to close 5° inside the shower for a snug jamb seal. Ideal long-tail keywords: adjustable glass shower door hinge, solid brass shower hinge for tempered glass, self-centering shower hinge.

Capacity & Usage
Two hinges: For 5/16"–1/2" (8–12 mm) tempered glass, supports up to 80 lb (36 kg); maximum door width 28" (711 mm).

Three hinges: For 5/16"–1/2" (8–12 mm) tempered glass, supports up to 120 lb (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass—durable corrosion-resistant hardware for shower doors
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack required separately for 5/16" (8 mm) tempered glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Contact CRL Technical Sales Shower Door Department for details. Custom finishes available on request.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template
