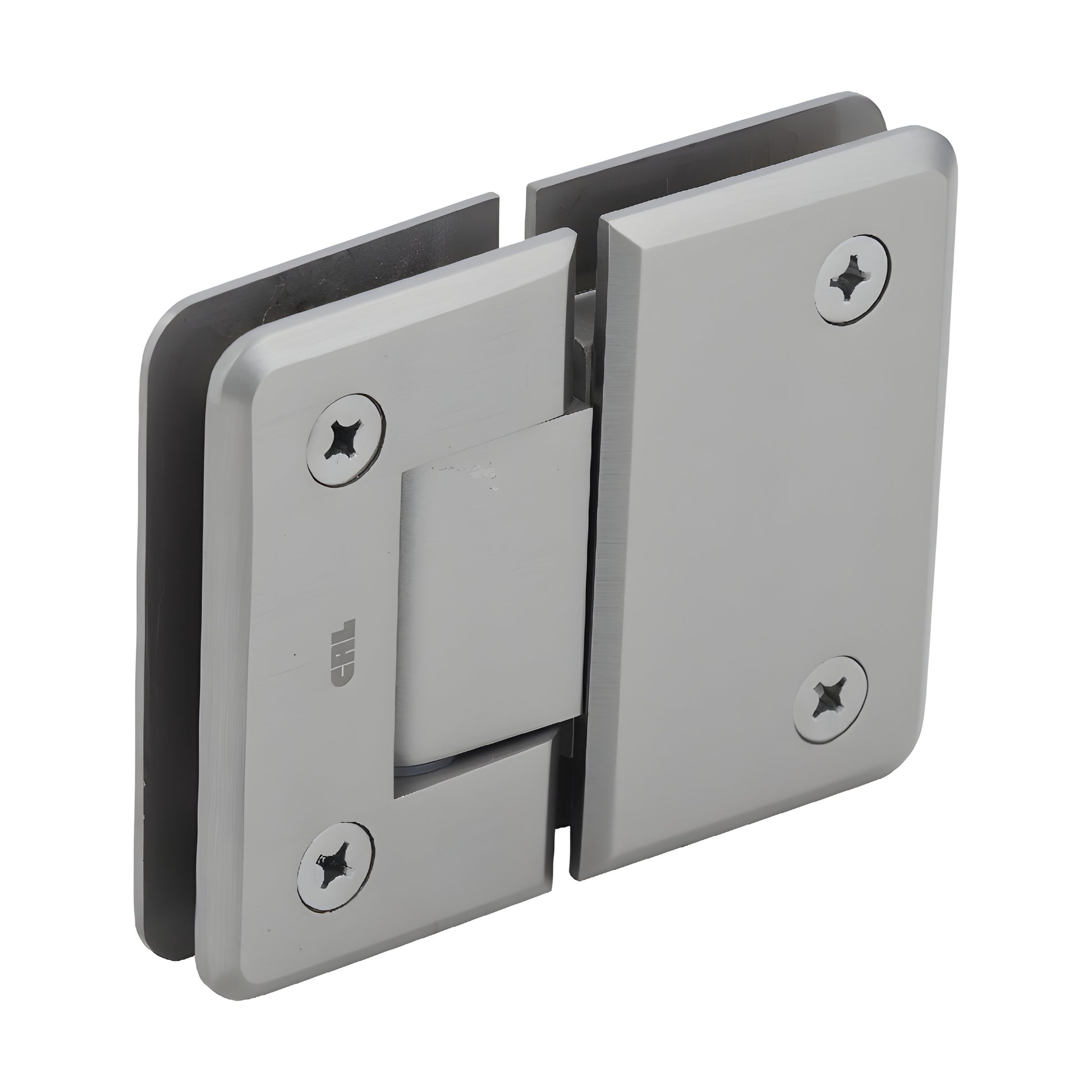

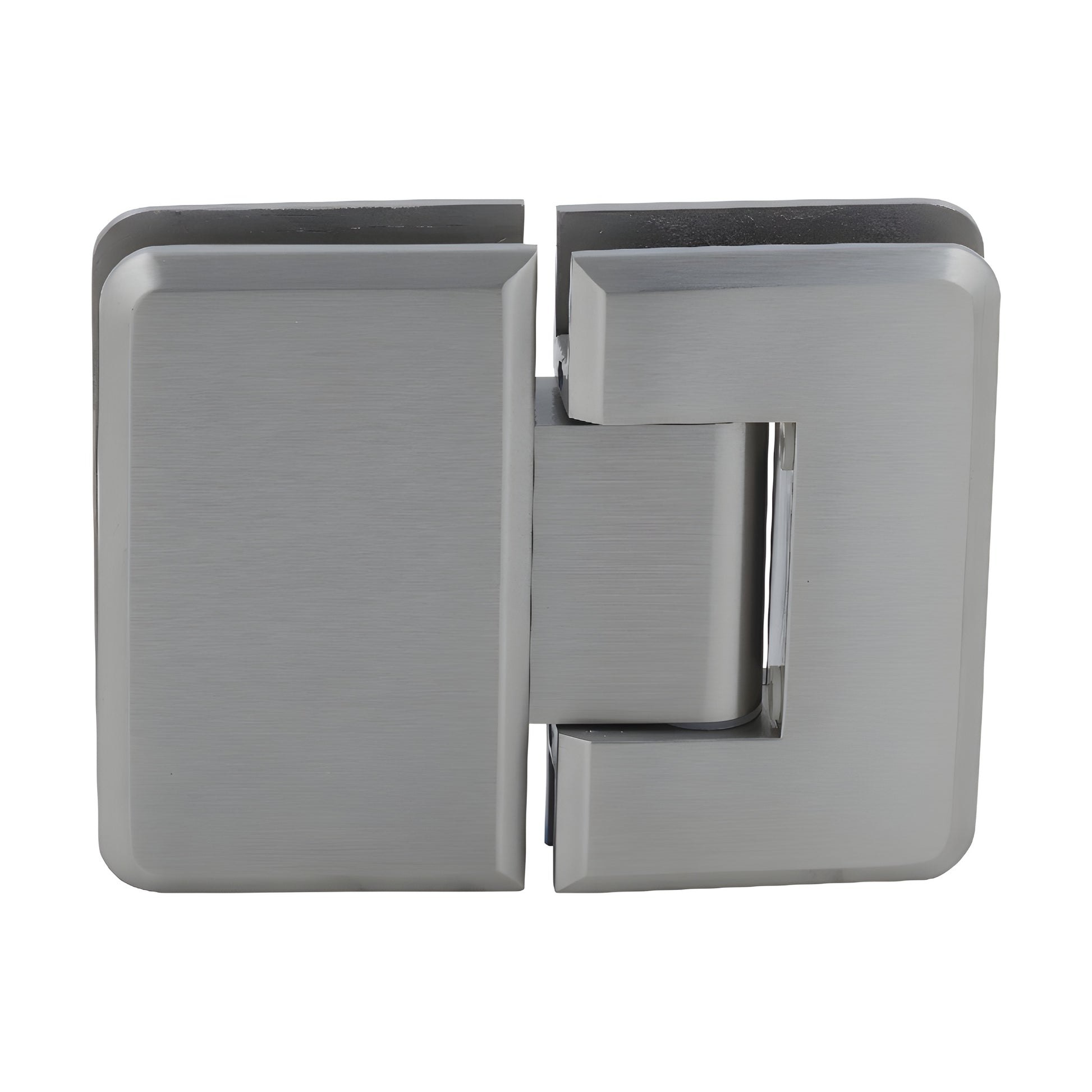

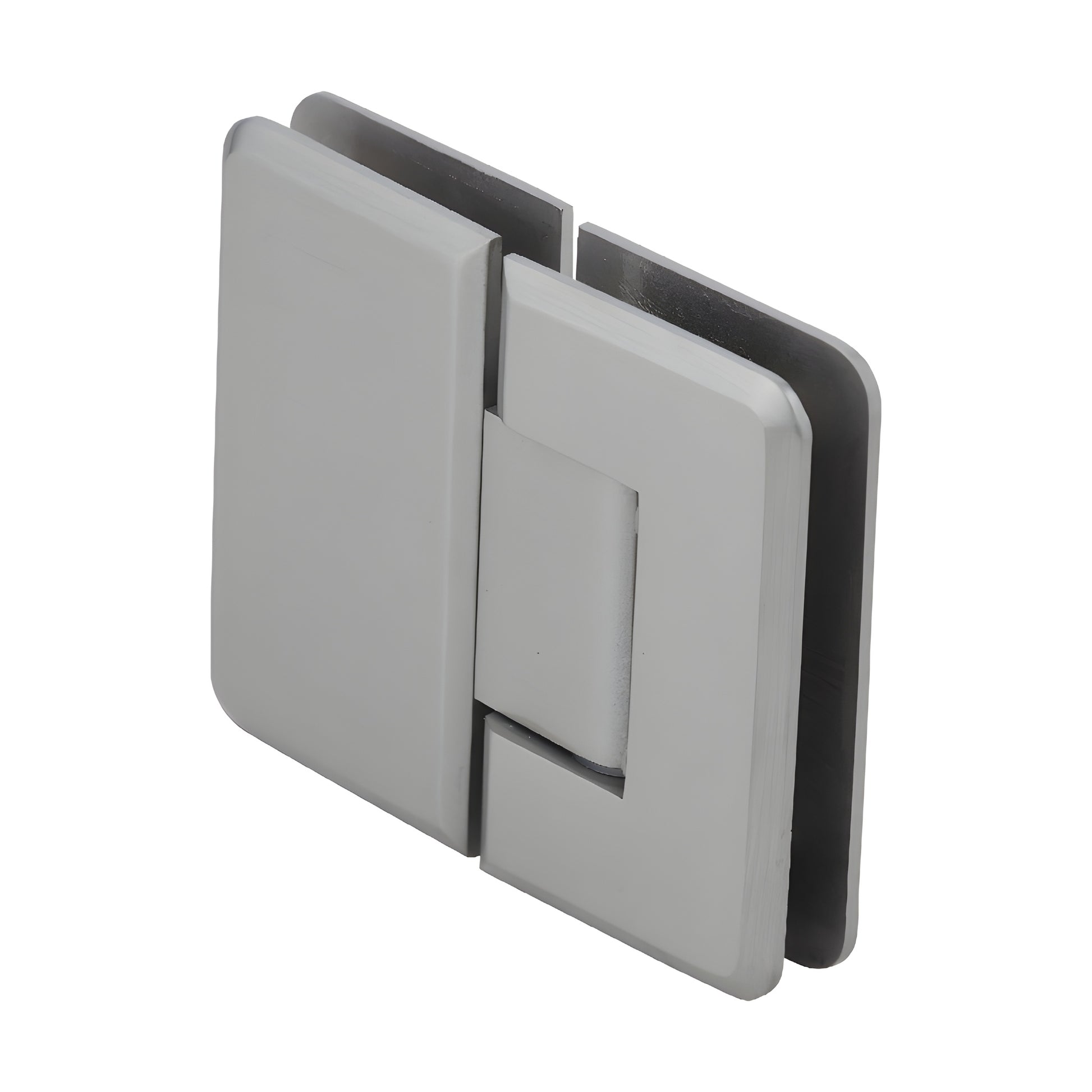

CRL Pinnacle 580 5° Brushed Nickel Frameless Shower Hinge

• Self-centering hinge with reversible 5° pivot pin for controlled shower door closure
• Available in several durable, decorative finishes
• Three-year warranty for residential and hotel shower installations
• Factory 5° pre-set model available for tighter closure into shower interior
• Designed for monolithic tempered safety glass (5/16"–1/2" / 8–12 mm)

The CRL Pinnacle Hinge (SKU: P1N580BN) is a glass shower door hinge engineered for style and reliable performance. Similar to the Geneva Series but with radius corners and beveled edges, the Pinnacle Hinge offers a sleek, modern appearance. It fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is self-centering within 15° of the closed position. Constructed from solid brass with stainless steel plunger tips, pins, and springs, Pinnacle delivers long service life and smooth, dependable door closure. The hinge features the reversible 5° pivot pin (also used in Geneva, Cathedral, Roman, Ultimate, and Elite series) and supports an optional custom pivot pin for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard units ship set to 90°. Pre-set models ship set to 85° (5° tighter closure into the shower). Rotate the pin (do not flip) to change settings.

CUSTOM PIVOT PIN: Custom pivot pins are available for non‑90° wall conditions (up to 45°) when the standard 5° offset does not achieve the desired door position.

LOAD CAPACITY:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 80 lb (36 kg), maximum door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 120 lb (54 kg), maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard Model (0°) or 5° Pre-Set Model for tighter closure into shower interior; available as wall mount or 180° glass-to-glass hinge
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws,
