Product Details
- Matches Configuration of Our Pinnacle, Prima, Senior Prima, Cologne, and Estate Hinges
- Solid Brass
- Use Monolithic Tempered Glass
- For 5/16" to 1/2" (8 to 12 mm) Glass

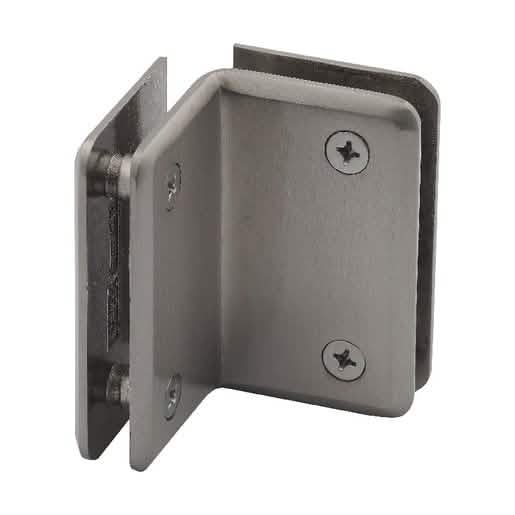

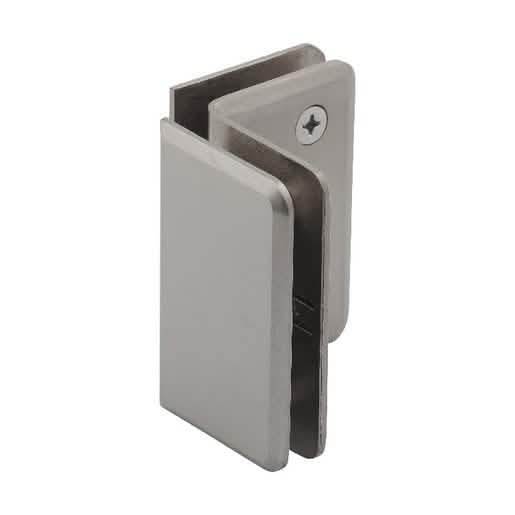

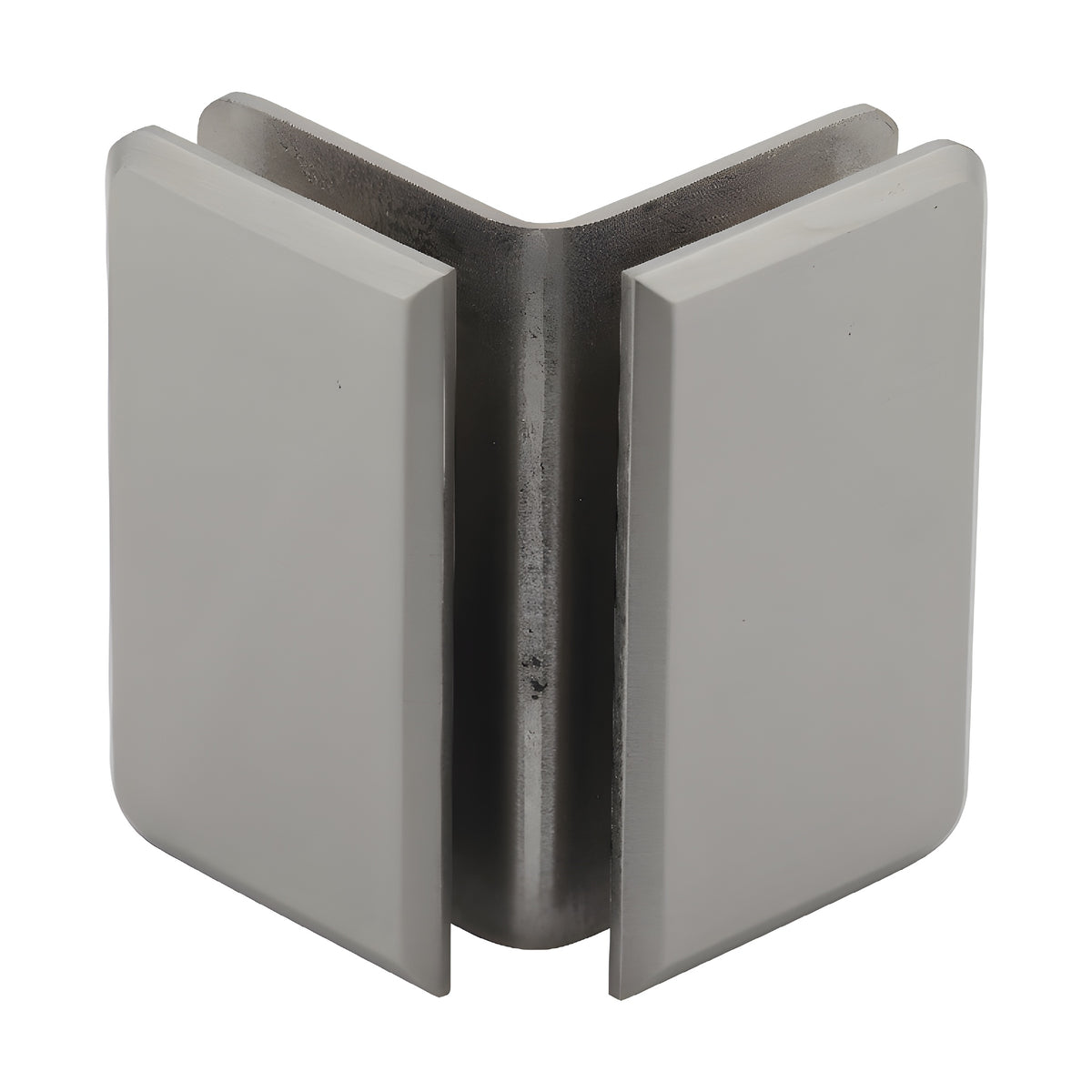

CRL Pinnacle and Prima Series 90 Degree Glass-to-Glass Clamps have beveled edges and are designed to secure 5/16" to 1/2" (8 to 12 mm) glass panels together. Can also be used a horizontal shelf clamp. Continuity of design is maintained by matching the look of the hinges used. They are available in several decorator finishes and are constructed of solid brass. Custom finishes are available on request by contacting CRL Technical Sales Shower Door Department.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screws Hole Diameter
Required: Two 3/4"(19 mm) Holes Per Panel
