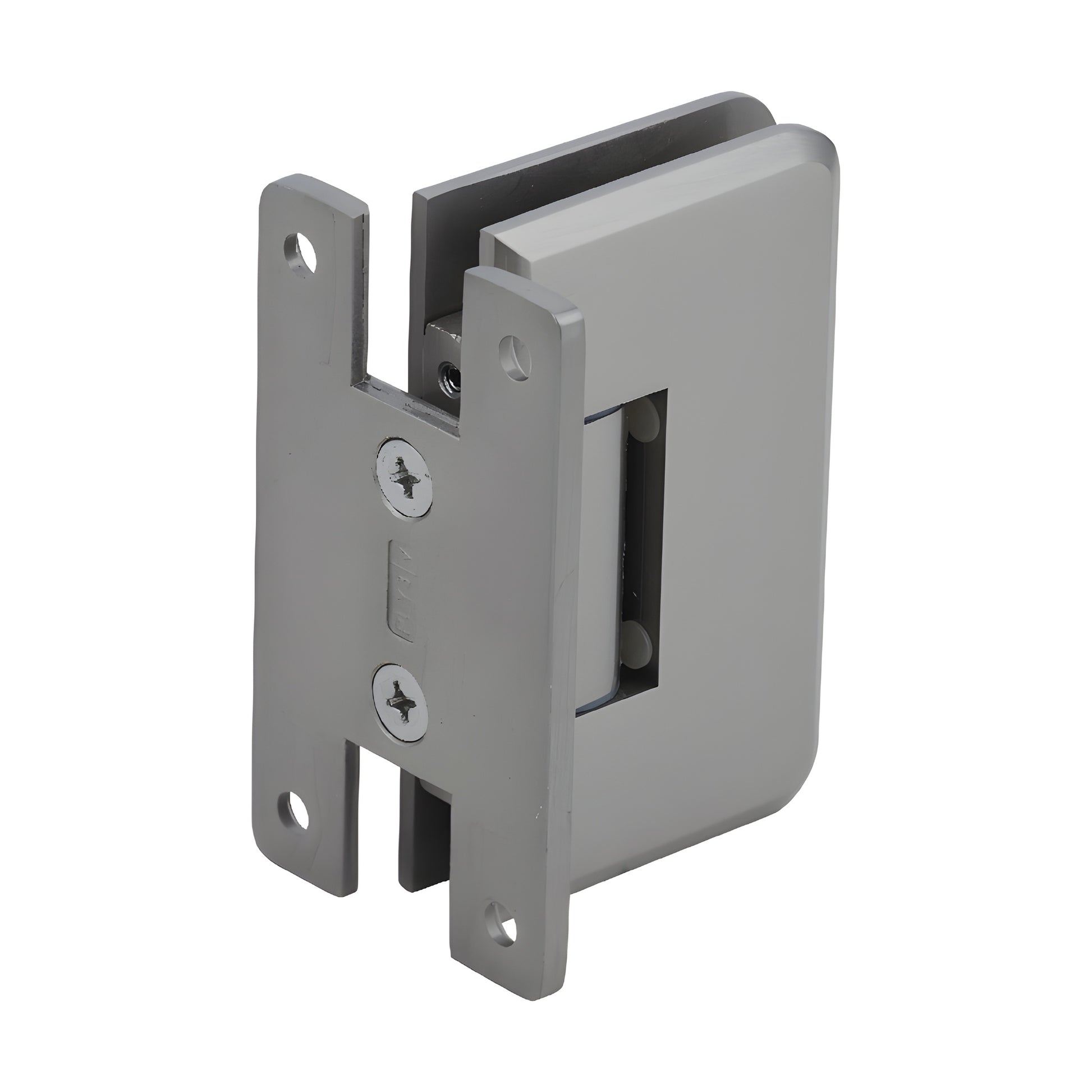

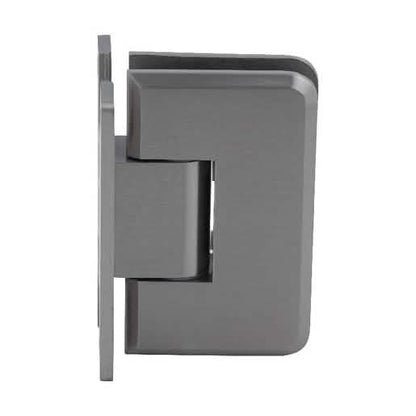

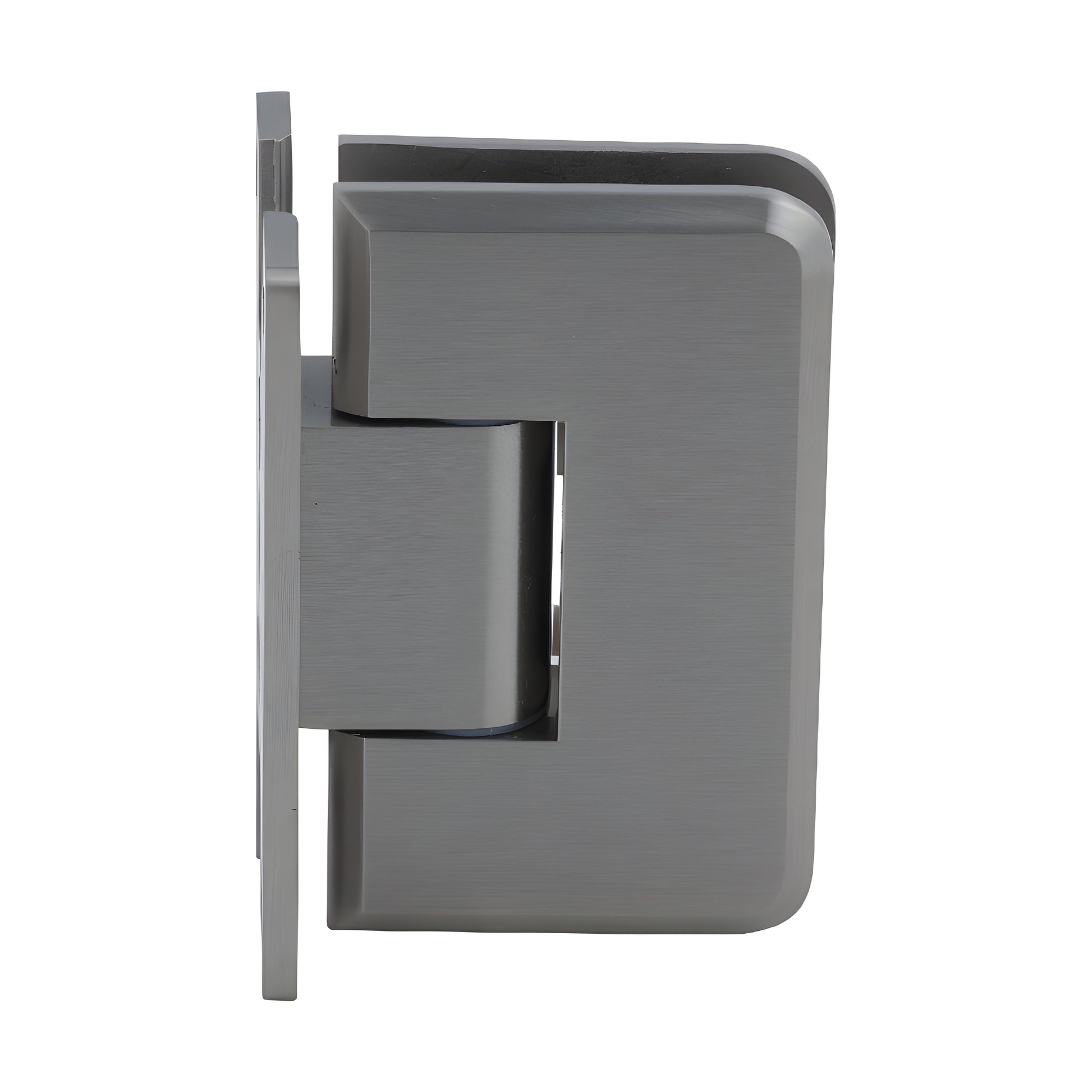

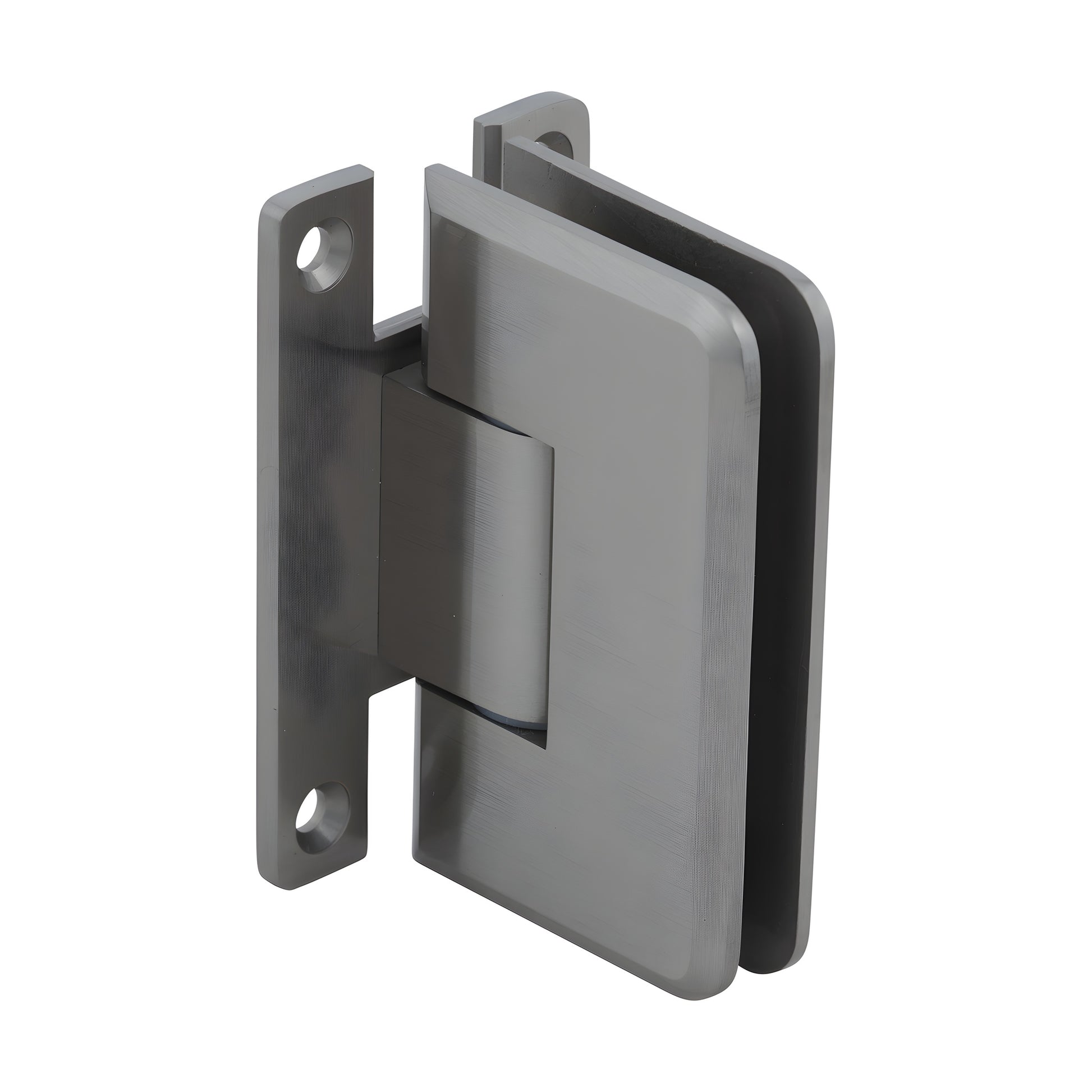

CRL Plymouth Series Brushed Nickel Wall-Mount H Back Plate Hinge

• Excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass panel control
• Available in wall-mount and 180° glass-to-glass models
• Fits 3/8" to 1/2" (10–12 mm) tempered safety glass

CRL Plymouth Series Hinges — SKU: PLY037BN support wider, heavier frameless shower doors with a maximum door weight of 140 lbs (64 kg) and a maximum door width of 39" (1 m) using only two hinges. These heavy-duty shower door hinges reduce visible hardware for a clean frameless aesthetic while delivering superior holding power thanks to an integrated stiffening beam that minimizes clamping-plate flex. Heat-treated stainless steel springs increase durability and produce stronger self-centering force, ideal for residential and hotel shower installations. Stocked in six popular finishes; custom finishes available.

NOTE: Do not use three hinges. Maximum two hinges per door. Do not exceed specified door weight or width capacities. Glass fabrication and proper cut-outs are required.

Using two hinges: With 3/8" to 1/2" (10–12 mm) tempered glass at a 39" (1 m) width, two hinges will hold up to 140 lbs (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10–12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering when within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Order the CRL Plymouth Series PLY037BN heavy-duty frameless shower door hinge for 3/8"–1/2" tempered glass today.
