Product Details
- D2307 Series
- With D650 Nylon Wheels
- Ideal for Commercial or Residential Applications
- Designed for Quick and Easy Installation
- Available in Up to Six Stock Finishes, Including New Brushed Nickel
- 12' (3.66 m) Length
CRL's 12' (3.66 m) Deluxe Rolling Track Assemblies provide three options for Upper Track Extrusions, depending on your design preference. This system is ideally suited where frequency of use requires ease of operation and years of reliable service. These Assemblies have many finish options. This Rolling Track Assembly is one of our most popular systems, and you will find it to be one of the most user friendly, trouble-free tracks available anywhere. CRL also has a large selection of Locks available to secure the sliding doors. CRL Ratchet and Plunger Type Locks are available. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately).
NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).
The dimensions shown are just standard guideline dimensions that are satisfactory for most applications. If you need a very tight fit, you should figure your own dimensions.
D2307 Series Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"

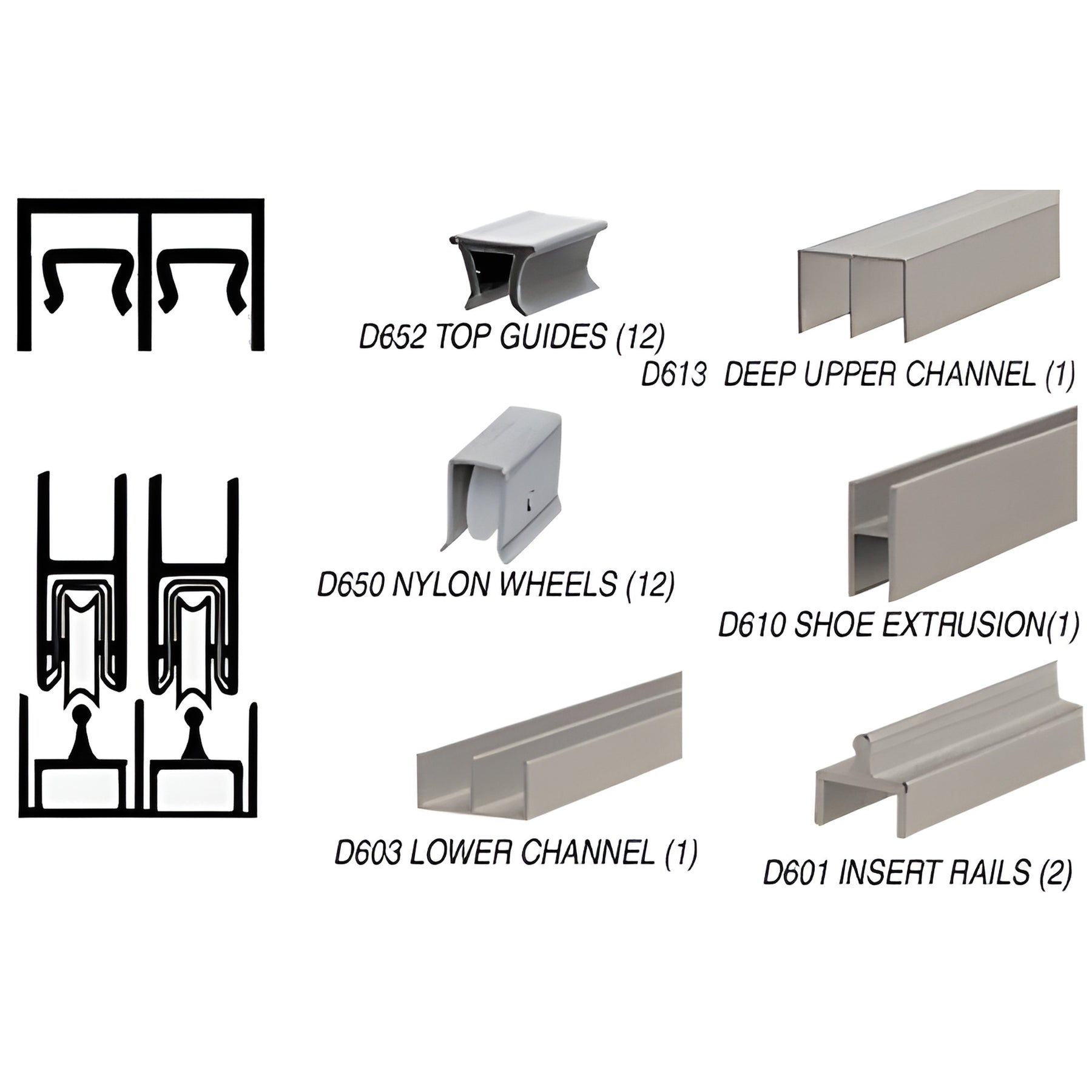

Components for D2307BN
D601 (x2)
D603 (x1)
D610 (x1)
D613 (x1)
D650 (x12)
D652 (x12)
D9650 (x1)
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
