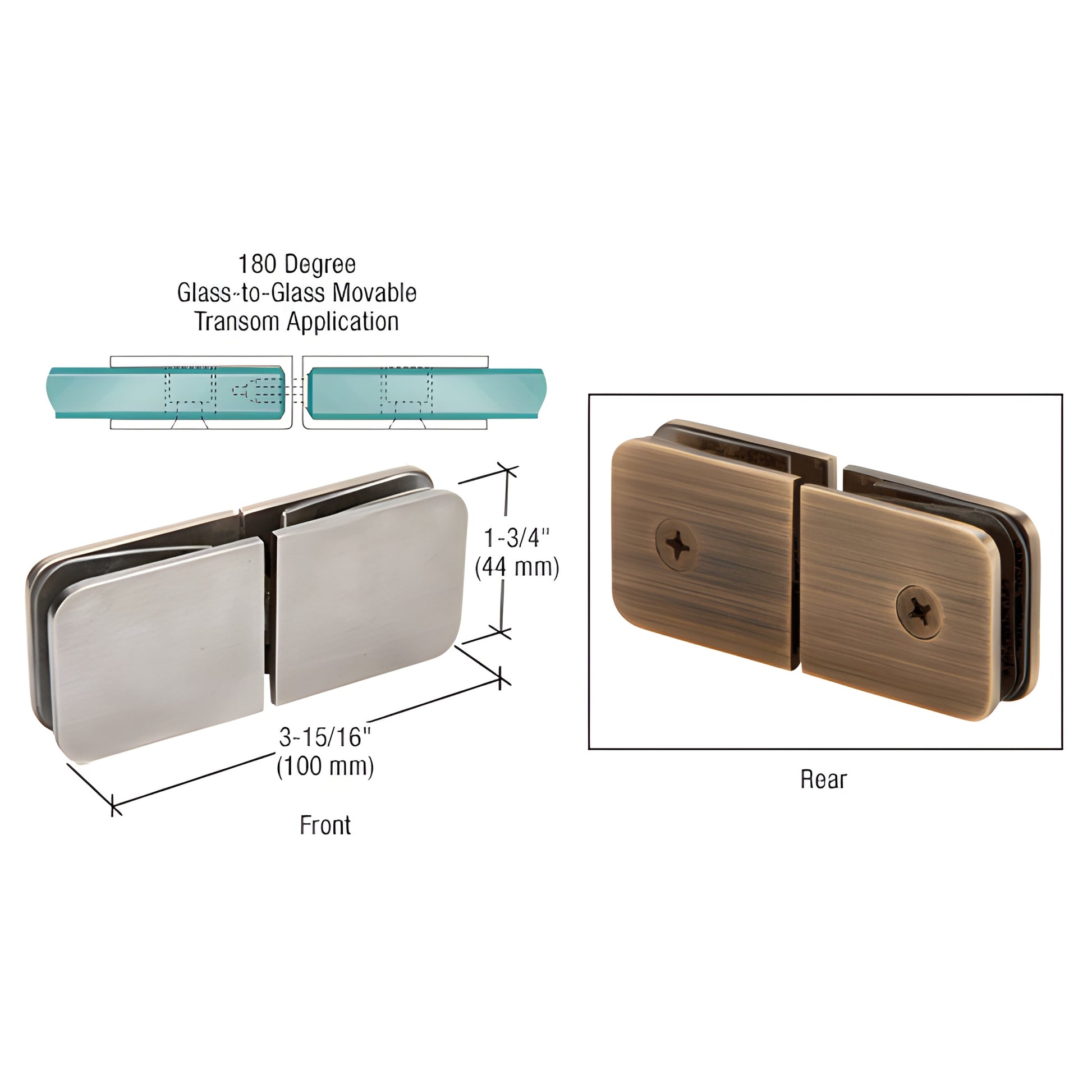

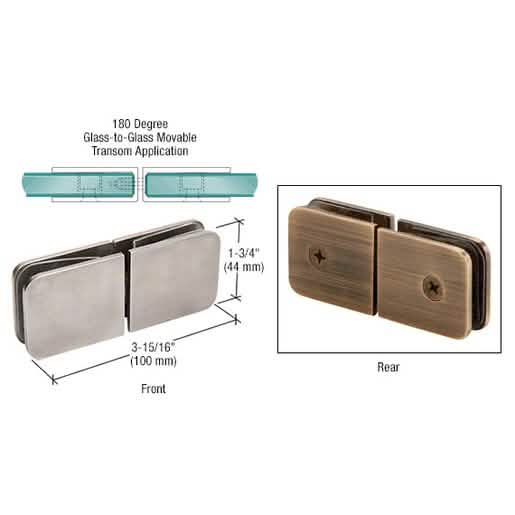

CRL Brushed Nickel Traditional Movable Glass-to-Glass Transom Clamp

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Glass-to-glass application for frameless showers
• Special Nylock nut allows pivoting of clamps for a smooth 180° movement
• Movable glass transom swivels to allow steam release
• Use with monolithic tempered glass

The Traditional 180 Degree Glass-to-Glass Movable Transom Clamp (SKU: GCB188BN) is engineered for pivoting transom panels above shower doors and ideal for frameless glass shower installations. For best performance, center the clamp on the glass. Replacement parts: 90295A120 (nylon washer), 193004 (nylon lock nut), 211039 (flat head screw), UCG77 (gaskets).


SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid brass
Glass Fabrication Required: 5/8" or 3/4" (16 or 19 mm) diameter hole in fixed panel and a notch in transom
Includes: Gaskets

NOTE: Maximum transom size is 12" x 30" (305 x 762 mm). Larger transoms require Square or Beveled Transom Clamps or pivot hinges used as movable transom clamps — contact us for details.

Product Warning:

Maximum transom size is 12" (305 mm) high x 30" (762 mm) wide. Larger transoms require pivot hinges used as a transom clamp. Contact Technical Sales, Shower Door Department, for details.
