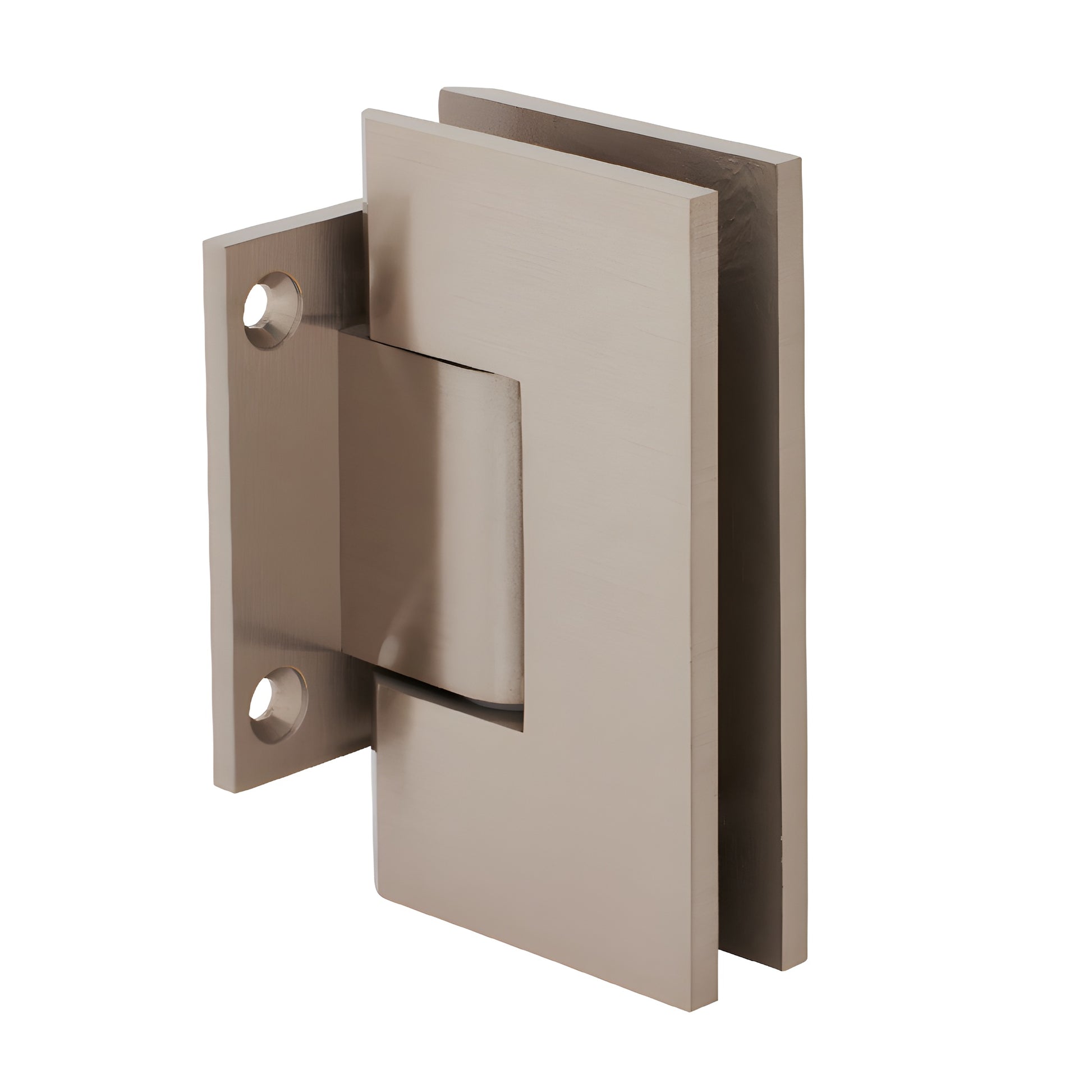

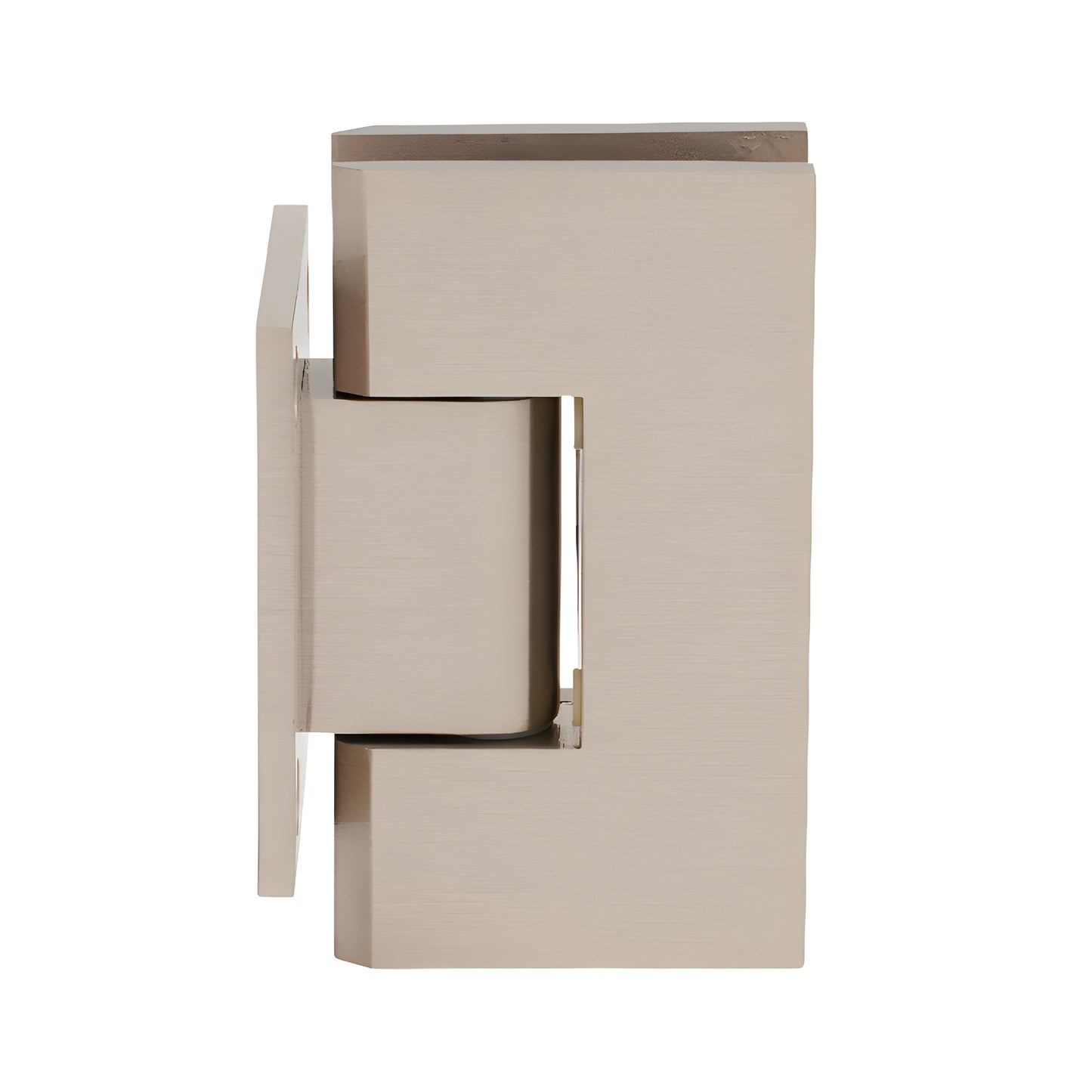

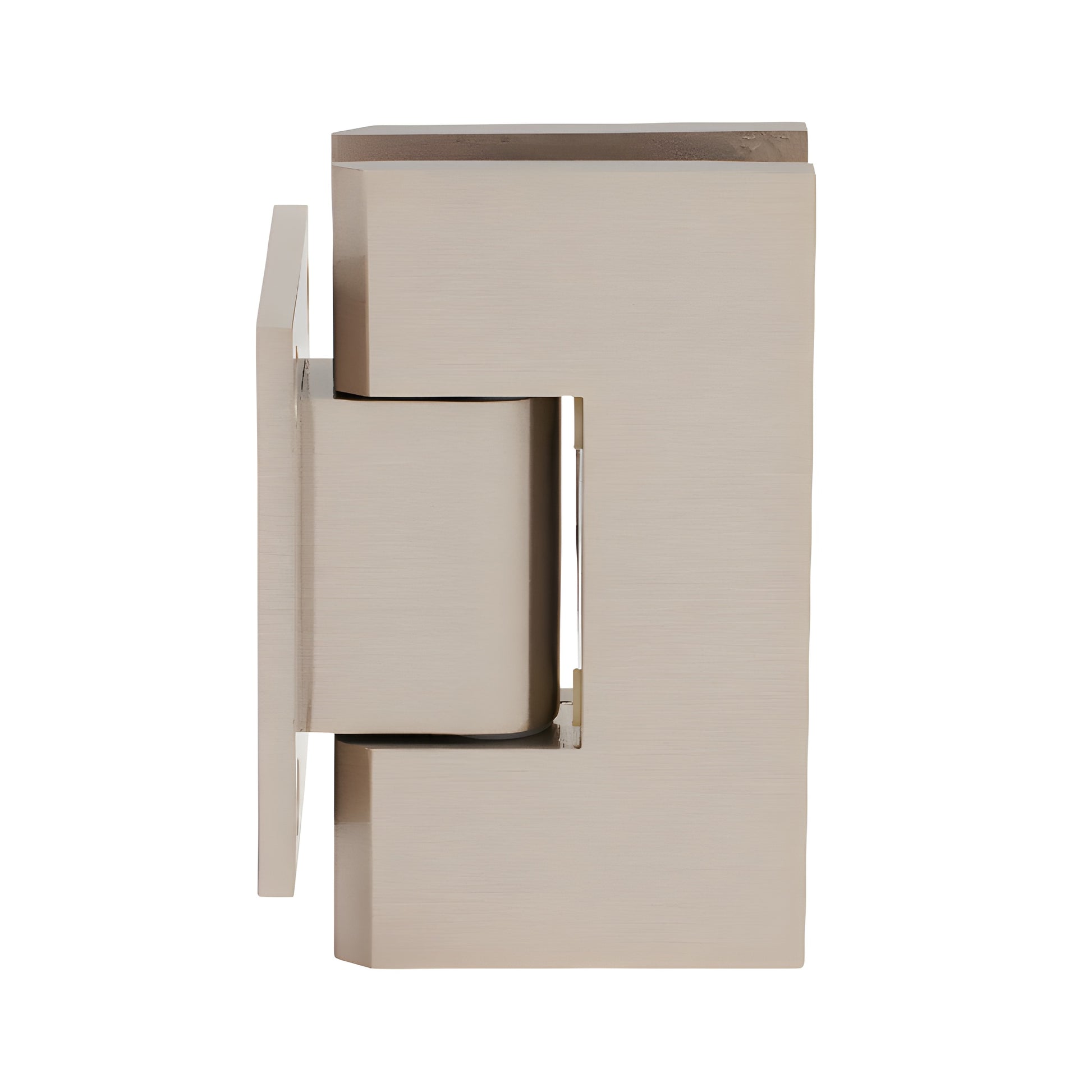

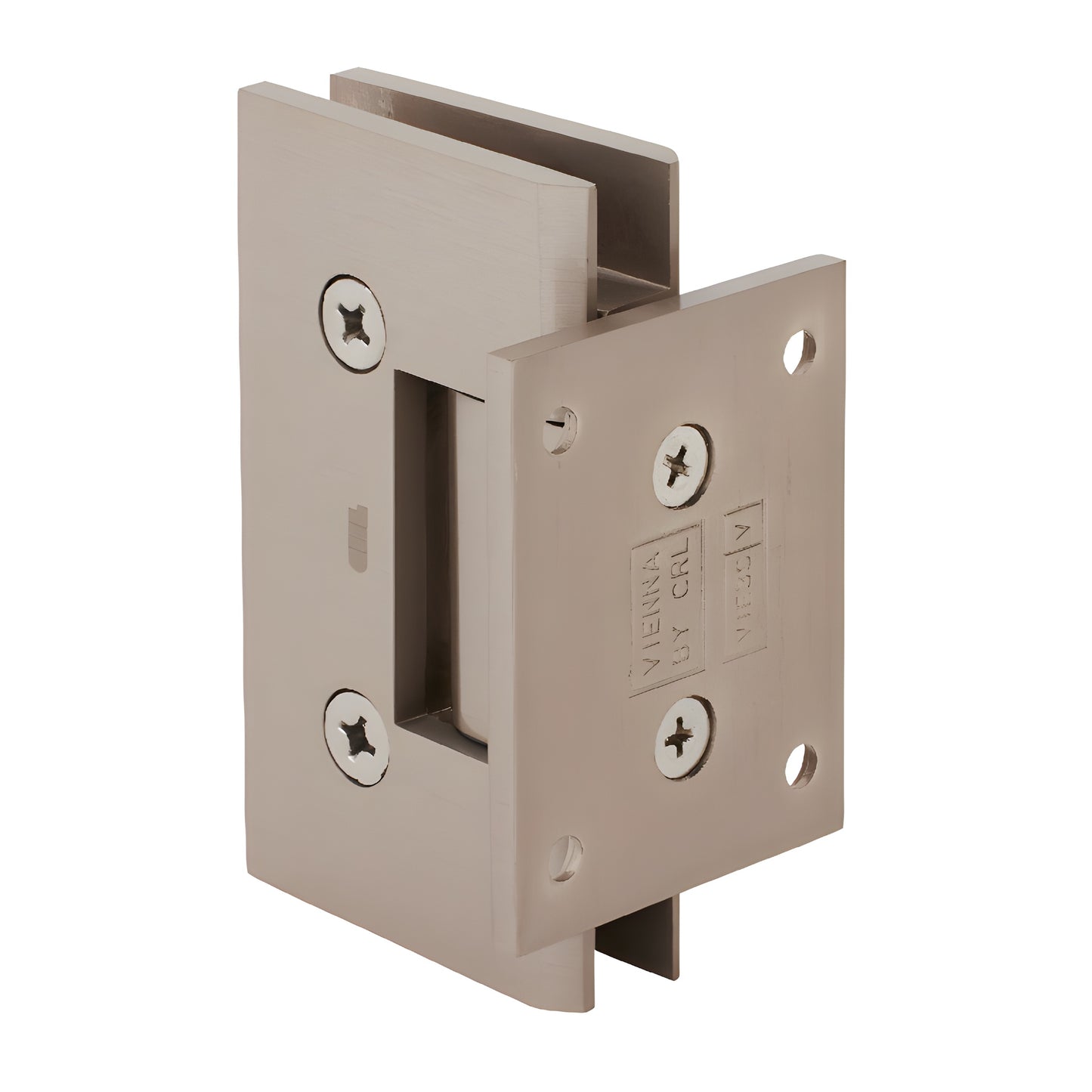

CRL Brushed Nickel Vienna 074 Series Wall Mount Short Back Plate Hinge

CRL Brushed Nickel Vienna 074 Series Wall Mount Short Back Plate Hinge

$95.24 CAD
$95.24 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# V1E074BN
Shipping Weight: 1.94 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

5 Degree Pre-Set NoNo
BackPlate Short
DesignStyle Squared
EnclosureType Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ColorBrushed Nickel
Glazing Thickness3/8 in. to 1/2 in. (10 mm to 12 mm)

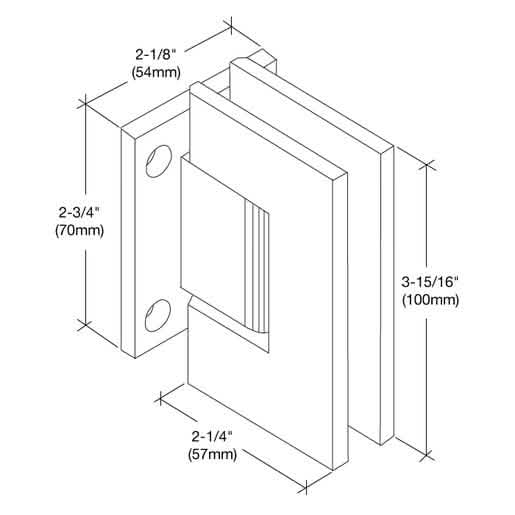

Height 3-15/16 in.(100 mm)
MaterialBrass
Maximum Clamping Screw Torque 60 lbf.in(677.9 cN.m)
Maximum Door Weight - 2 Hinges 100 lbs.(45.4 kg)
Maximum Door Weight - 3 Hinges 130 lbs.(59 kg)
Maximum Door Width - 1/2 Glass 32 in.(813 mm)
Maximum Door Width - 3/8 Glass 34 in.(864 mm)
Maximum Door Width -1/2 Glass 32
MountingType Wall Mount
Opening Style Swing(side)
Self-Centering YesVienna
Width 2-1/4 in.(57 mm)

Overview

CRL Vienna Hinges are designed to support wider and heavier shower doors, accommodating glass thicknesses from 3/8" to 1/2" (10 to 12 mm).
These hinges offer versatility with their steel pins, allowing installation with either "mouse-ears" or rectangular cut-outs.
Standard reversible pivot pins offer 90 and 85-degree options, while custom pivot pins are available for unique angles.
Capable of holding up to 130 lbs, these hinges come with a 3-year warranty and are available in various finishes.
Ensure proper usage as these hinges are intended for residential or hotel showers, and always refer to the included template for accurate installation.
