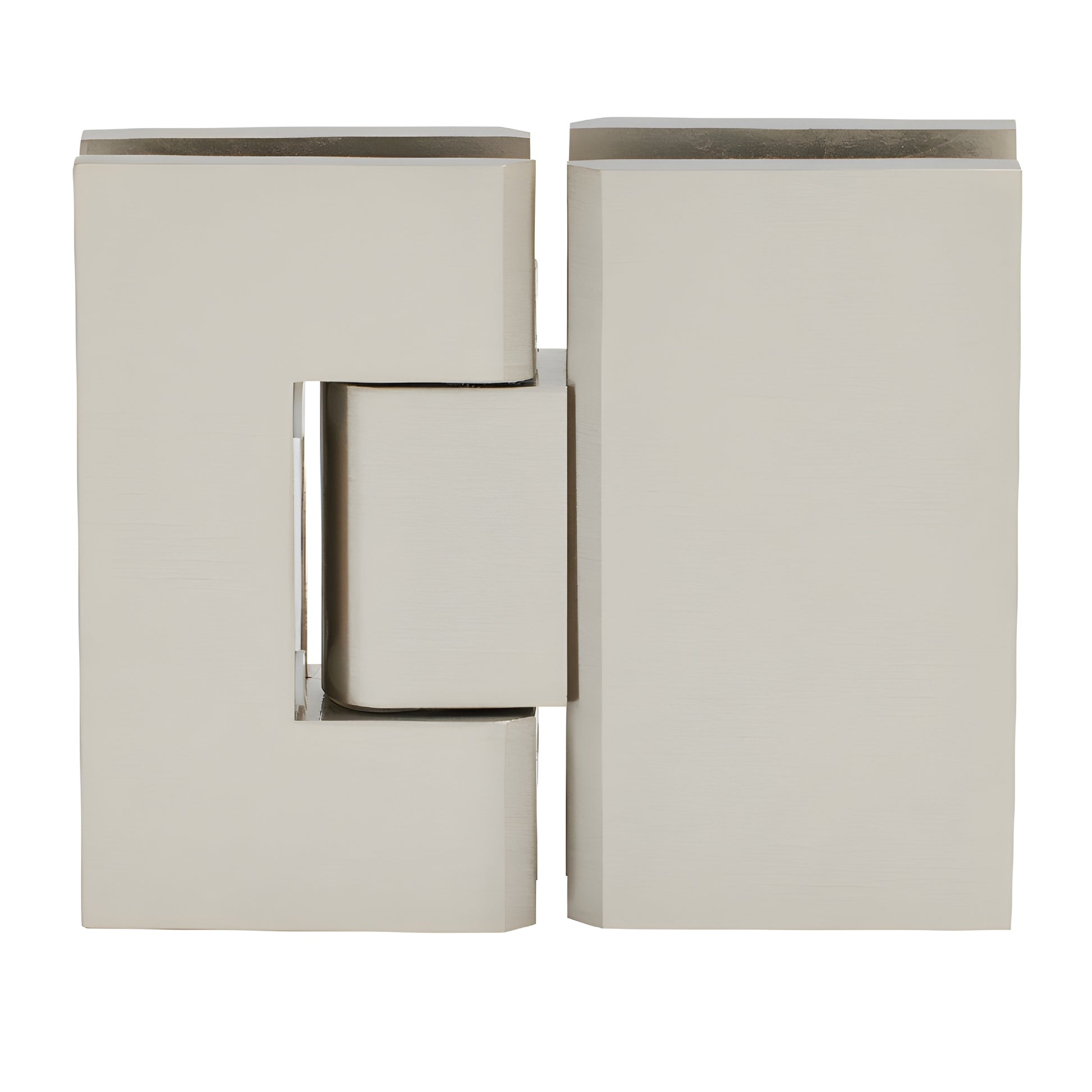

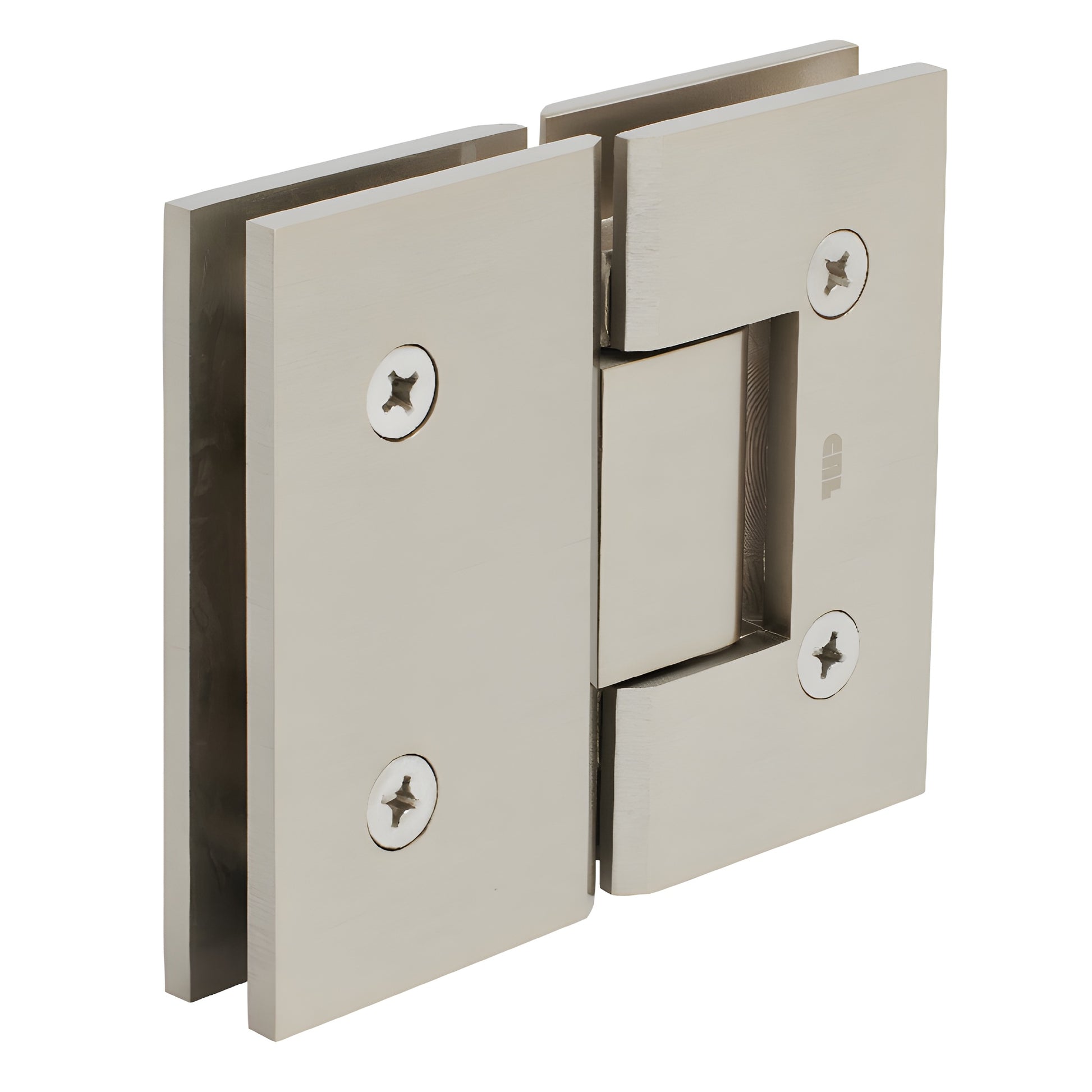

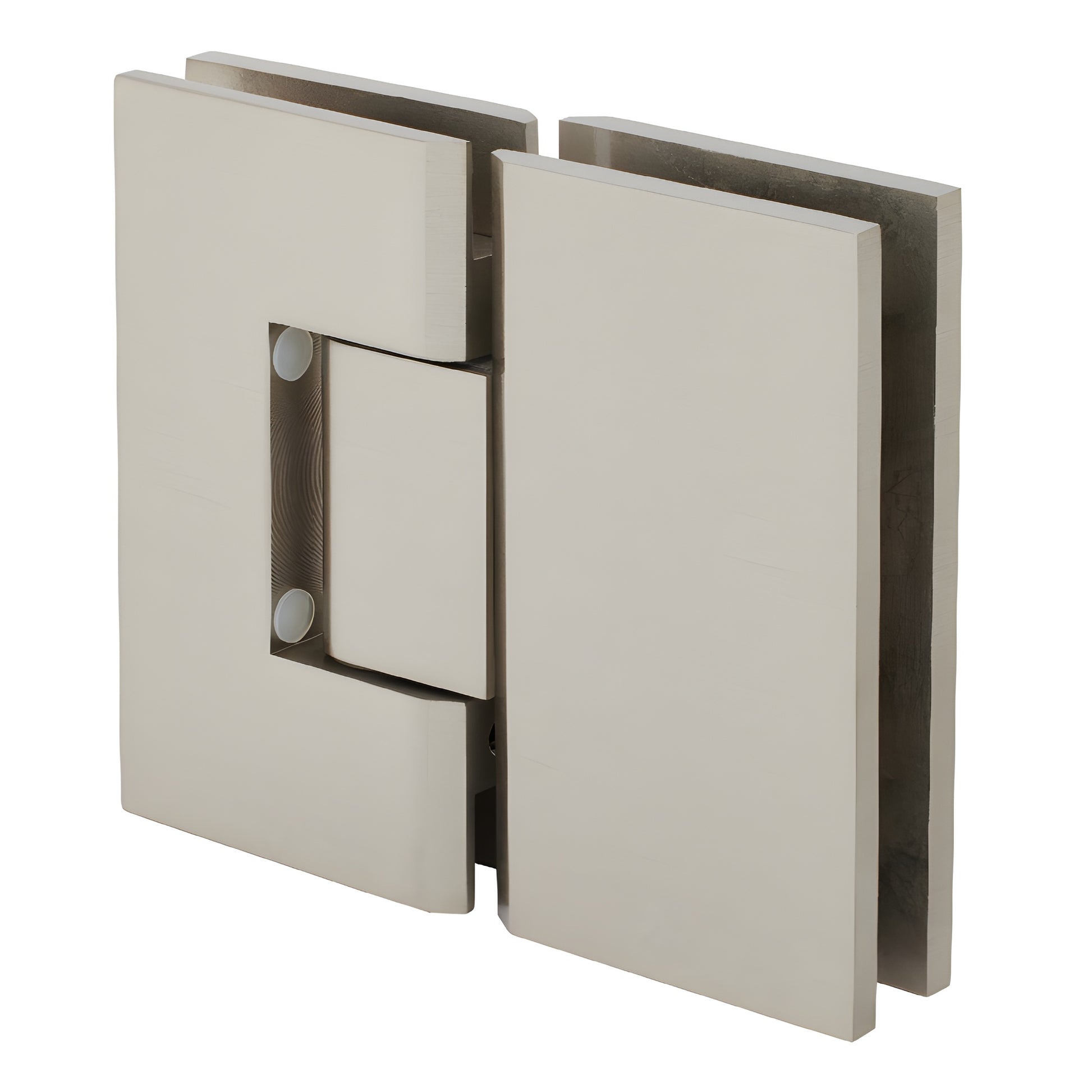

CRL Brushed Nickel Vienna 180 Degree Glass-to-Glass Positive Close Hinge
CRL Brushed Nickel Vienna 180 Degree Glass-to-Glass Positive Close Hinge
Regular price
$164.73 CAD
Regular price
Sale price
$164.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1E780BN
Shipping Weight: 3.3 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 3.3 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set No | No |
| Design | Style Squared |
| Edge | Profile Square |
| Enclosure | Type Niche, Bathtub, Tailor Made Solutions |
| Finish/Color | Brushed Nickel |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. to 1/2 in. (10 mm to 12 mm) |
| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Glass To Glass |
| Opening Style Swing | (side) |
| Positive | Close Yes |
| Self-Centering Yes | Vienna |
| Width - Door Portion 2-1/4 in. | (57 mm) |
| Width - Sidelite Portion | 2-1/4 |
Overview
The Positive Close Vienna Hinge features a unique internal grooved pivot pin, ensuring a precise and positive closing action that distinguishes it from traditional self-centering Vienna Hinges.
Available in four popular finishes with additional options available via special order, this hinge is perfect for monolithic tempered glass installations.
Ideal for both wall mount and 180-degree glass-to-glass models, its solid brass construction supports glass thicknesses from 3/8" to 1/2" (10 to 12 mm) and can handle doors up to 36" wide.
For custom finishes or further specifications, contact CRL Technical Sales Shower Door Department.
Please note, these hinges are intended for residential or hotel shower use, and deviation from their intended purpose requires approval.
Available in four popular finishes with additional options available via special order, this hinge is perfect for monolithic tempered glass installations.
Ideal for both wall mount and 180-degree glass-to-glass models, its solid brass construction supports glass thicknesses from 3/8" to 1/2" (10 to 12 mm) and can handle doors up to 36" wide.
For custom finishes or further specifications, contact CRL Technical Sales Shower Door Department.
Please note, these hinges are intended for residential or hotel shower use, and deviation from their intended purpose requires approval.
