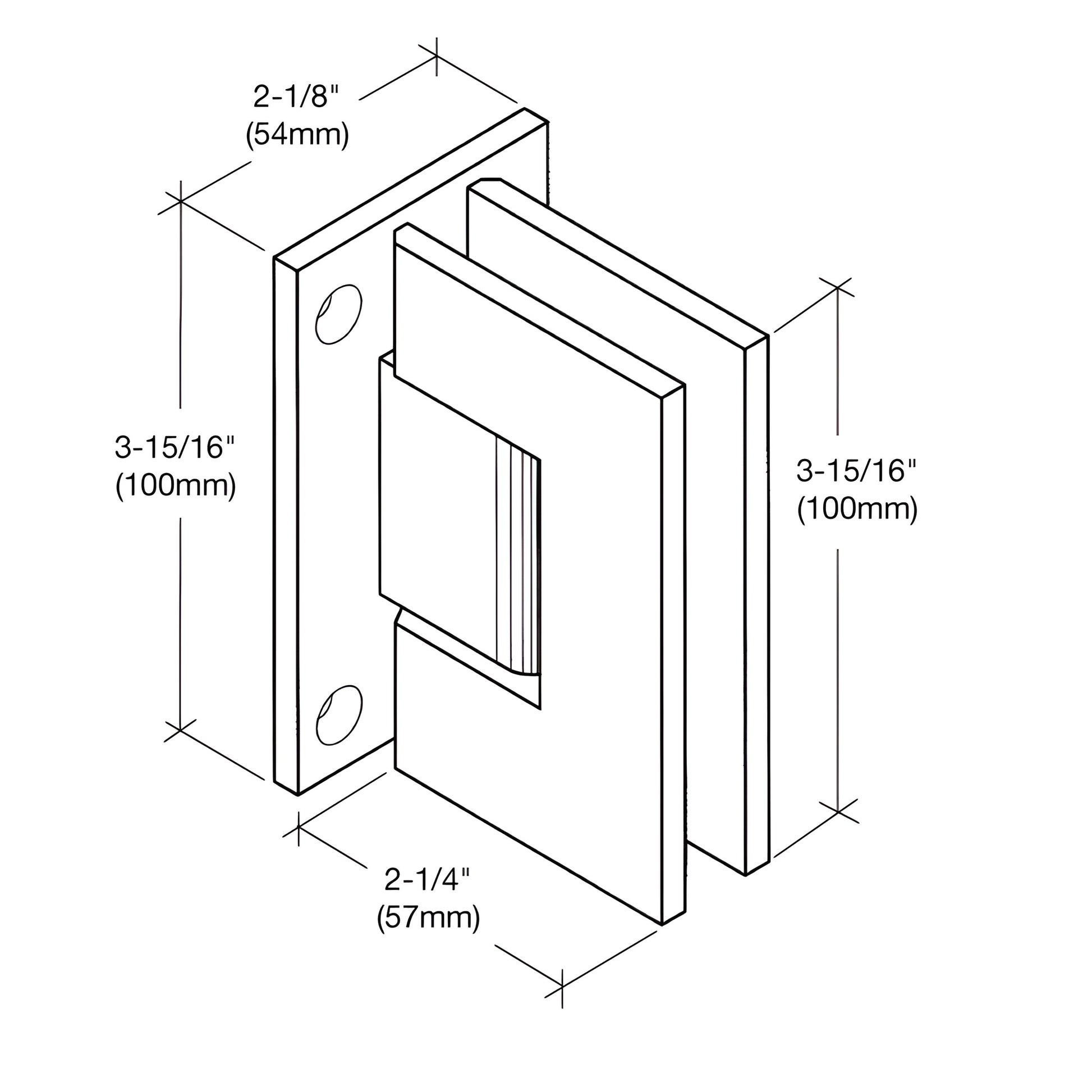

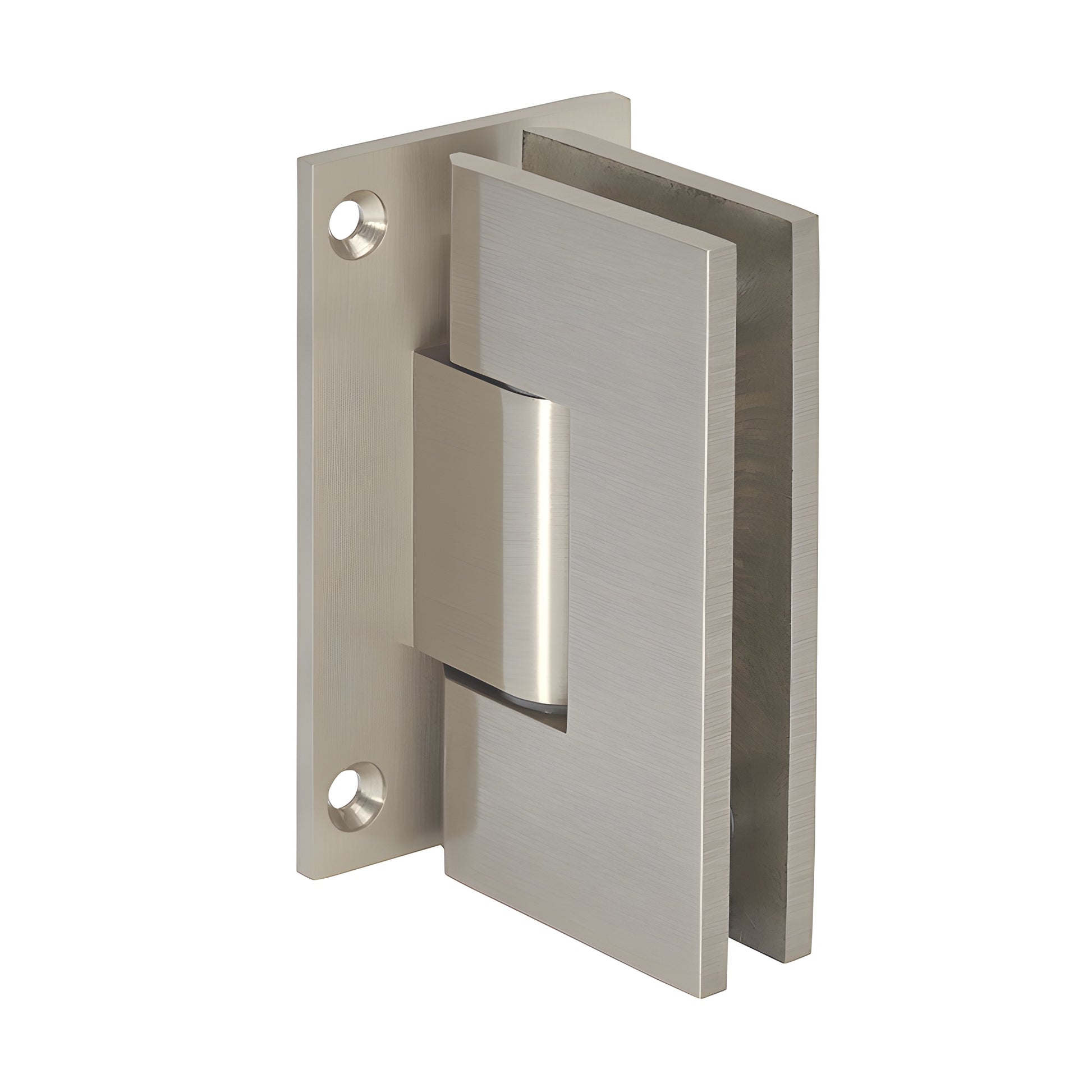

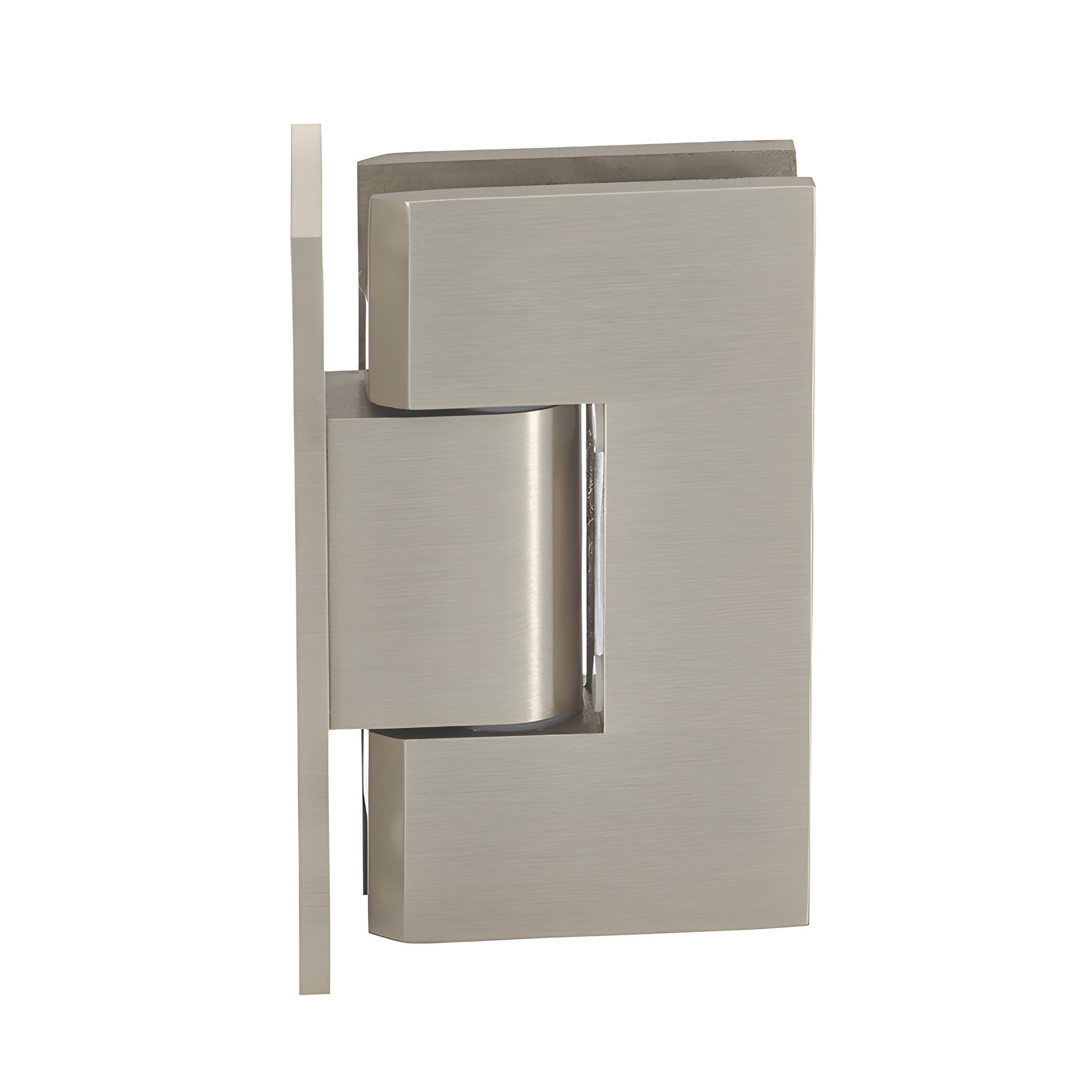

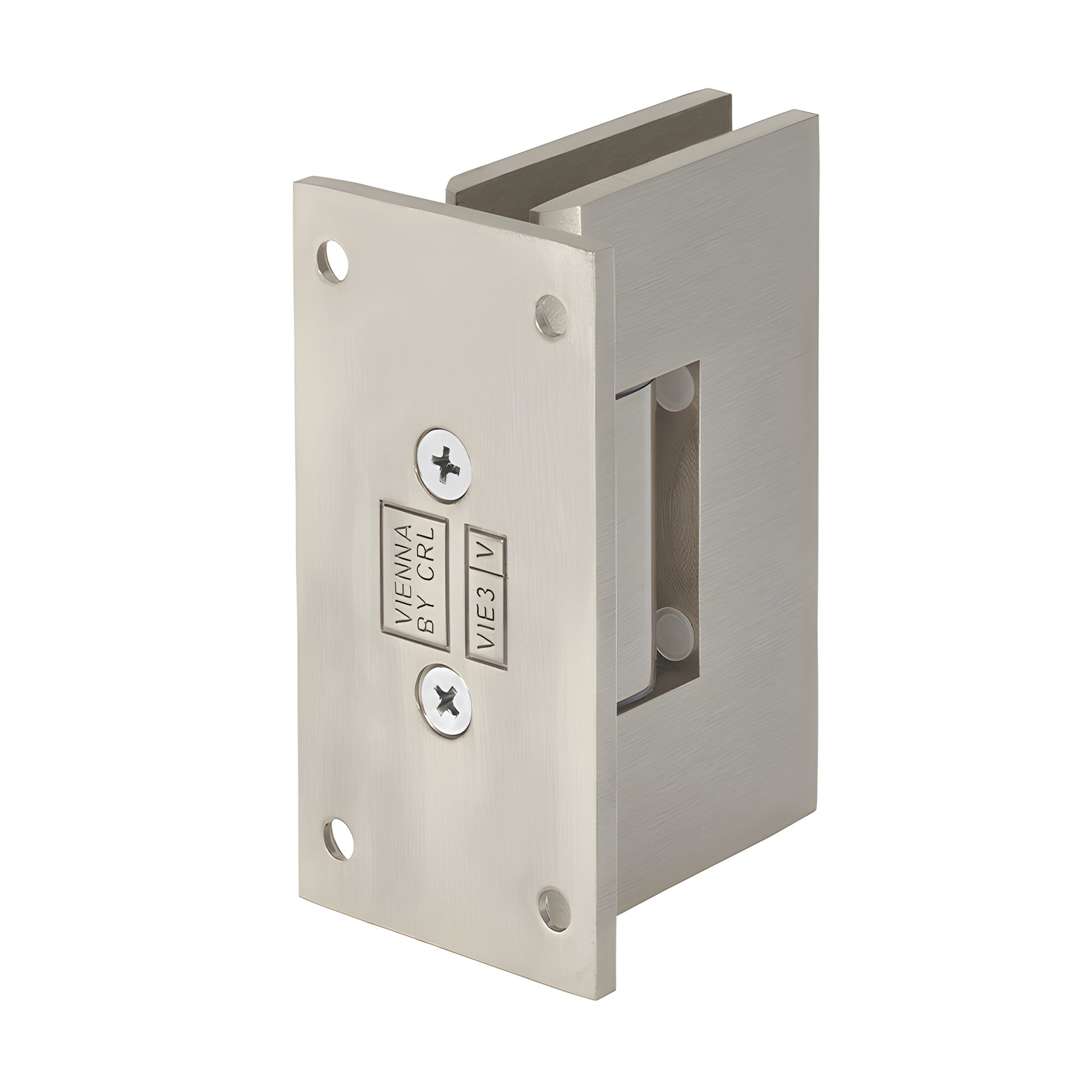

CRL Vienna Brushed Nickel Positive-Close Wall-Mount Door Hinge

• Special grooved internal pivot pin for a positive, precise closing action
• Available in wall-mount and 180° glass-to-glass models
• Stocked in four popular finishes; custom finishes available by special order
• Designed for use with monolithic tempered shower glass

The Positive Close Vienna Hinge (SKU: V1E067BN) uses an internal grooved pivot pin to deliver a precise, positive closing action to zero degrees—unlike typical self-centering Vienna hinges. Ideal for glass shower doors where a reliable, repeatable close is required.

Load & glass capacity

• Using two hinges with 3/8"–1/2" (10–12 mm) tempered safety glass: holds up to 110 lb (50 kg); maximum door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" (10–12 mm) tempered safety glass: holds up to 140 lb (63 kg); maximum door width 36" (914 mm)

Specifications:

• Glass Thickness: 3/8"–1/2" (10–12 mm) tempered safety glass
• Construction: Solid brass
• Hinge Swings: 90° inward and outward
• Closing Type: Positive closing to zero degrees
• Includes: gaskets, Phillips screws, Allen screws, and glass fabrication dimensions (cut-out required)
• Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request. For non-residential or atypical applications, obtain approval from CRL Shower Door Technical Sales.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. Use only the template included with this hinge—cut-out dimensions may not match other brands.

Choose the Positive Close Vienna Hinge V1E067BN for dependable, precise closing on glass shower doors — contact us to order or request custom finishes.
