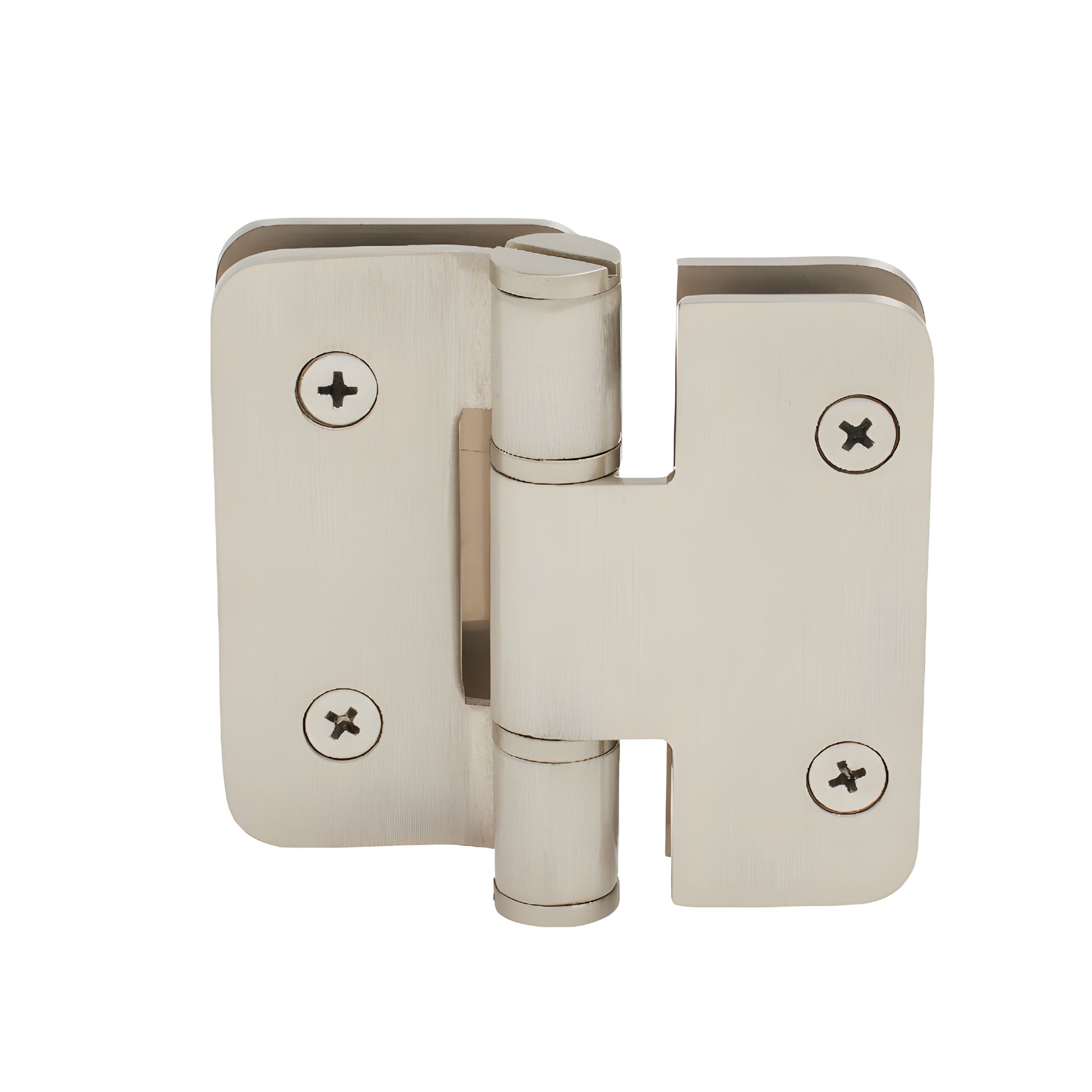

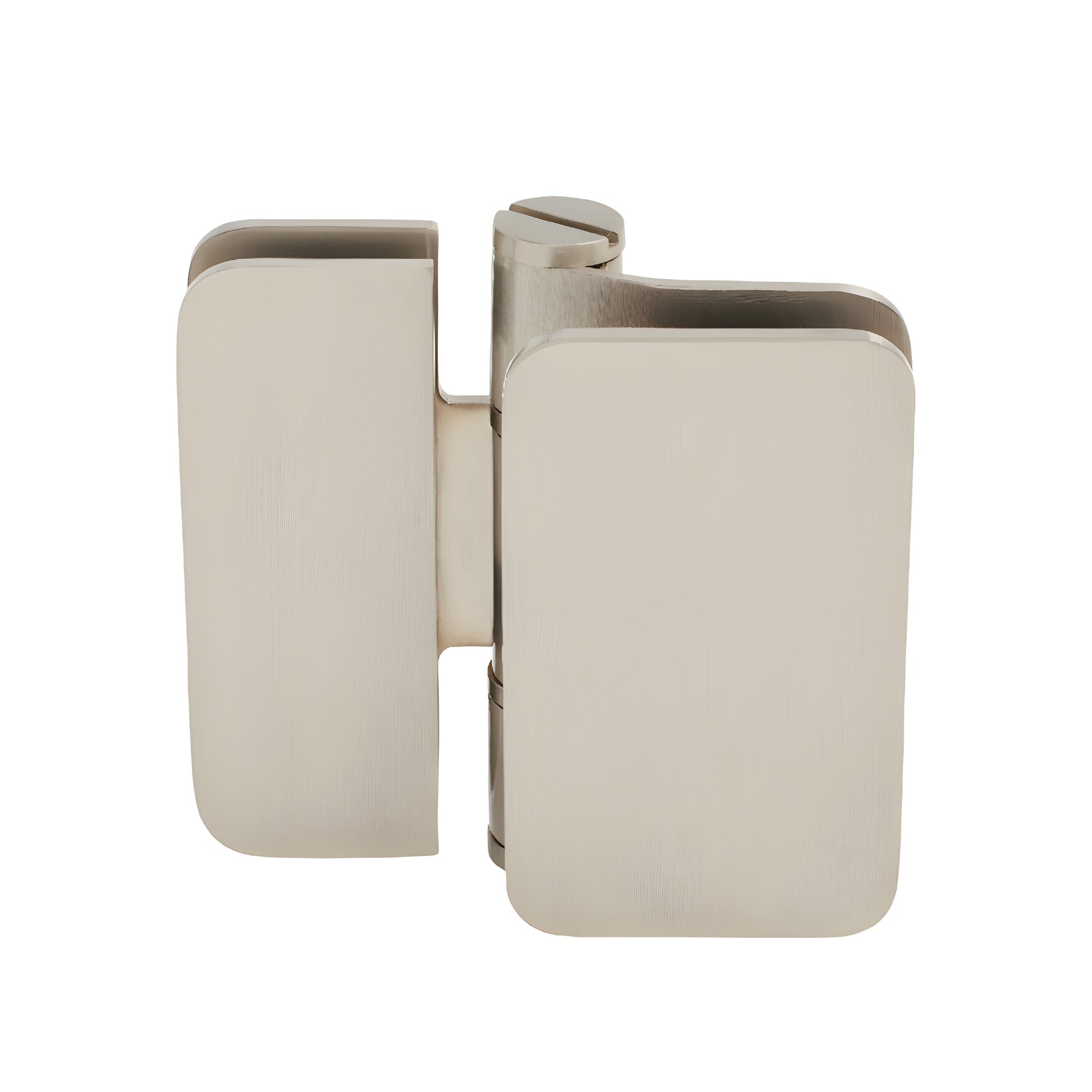

CRL Zurich 02 Brushed Nickel 180° Glass-to-Glass Bi-Fold Shower Hinge

• 180 Degree Glass-to-Glass Outswing Bi-Fold Application
• Available in Several Beautiful Finishes (up to 13)
• Use Monolithic Tempered Glass

CRL Zurich Series professional hinges (SKU: ZUR02BN) fit 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. The Zurich line was CRL’s first bi-fold hinge series and includes seven models in stainless steel or solid brass construction. These hinges install with only two holes per hinge per panel—no cut-out required—and are available in multiple finishes, with custom finishes available on request.

Replacement cover plate screws: Item No. P512, sold in packs of 100 in multiple finishes.

Load & size limits:

• Using two hinges with 5/16"–3/8" (8–10 mm) glass: holds up to 100 lbs (45 kg); maximum door width 36" (914 mm).
• Using three hinges with 5/16"–3/8" (8–10 mm) glass: holds up to 150 lbs (68 kg); maximum door width 40" (1.02 m).

Specifications:

• Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
• Special Features: Designed for bi-fold shower doors. Use ZUR01 and ZUR03 for doors folding into tub area; use ZUR02 and ZUR05 for doors folding out to bathroom area.
• Construction: Stainless steel or solid brass
• Hinge Swings: See descriptions next to hinge photos
• Closing Type: Free-swinging
• Installation: Two holes required per hinge per panel (no cut-out)
• Includes: Gaskets, screws, and glass fabrication dimensions

Not available in Germany.

Product Warning:

CRL shower door hinges are engineered for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—CRL cut-out dimensions may not match other brands.

Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor.
