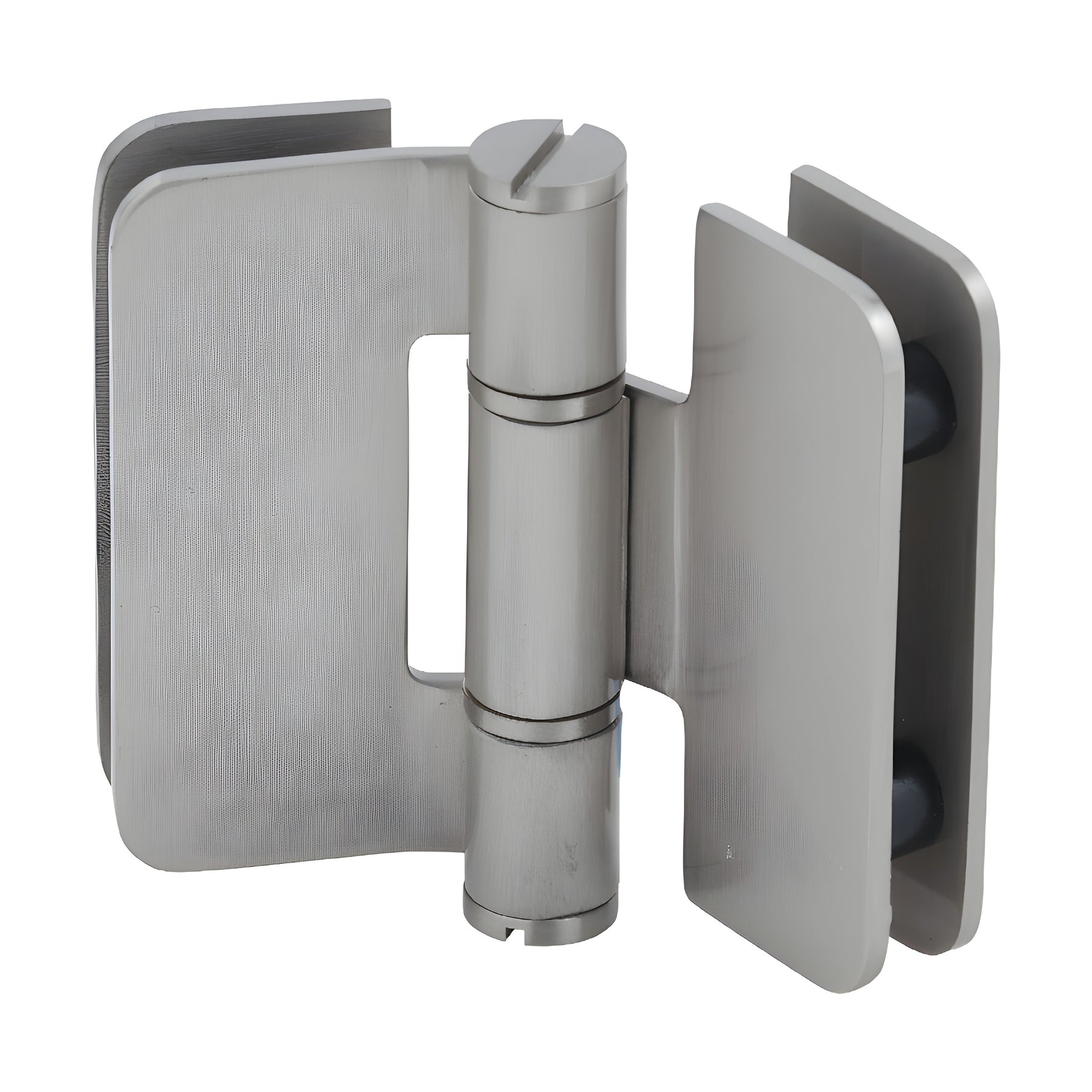

CRL Brushed Nickel Zurich 07 Series Glass-to-Glass Inline Outswing Hinge

CRL Brushed Nickel Zurich 07 Series Glass-to-Glass Inline Outswing Hinge

$164.73 CAD
$164.73 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# ZUR07BN
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

EdgeProfile Square
Finish/ColorBrushed Nickel
Glass To Glass Angle180
Glazing Thickness5/16 in. To 3/8 in. (8 mm To 10 mm)
Height 3-1/8 in.(79 mm)
MaterialBrass
Maximum Door Weight - 2 Hinges 100 lbs.(45.4 kg)
Maximum Door Weight - 3 Hinges 150 lbs.(68 kg)
Maximum Door Width - 2 Hinges 36 in.(914 mm)
Maximum Door Width - 3 Hinges 40 in.(1016 mm)
MountingType Glass To Glass
Self-Centering NoZurich
SwingOutswing Only
Width - Door Portion 1-3/16 in.(30 mm)
Width - Sidelite Portion1-3/16

Overview

Discover the CRL Zurich Series, the premier choice for Glass-to-Glass Inline Outswing Hinges, perfect for Bi-Fold applications.
Crafted in stainless steel or brass, these hinges accommodate 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and are available in a variety of stunning finishes.
Designed for seamless installation, each hinge requires only two holes per panel, with no cut-out necessary, and can support up to 150 lbs.
with three hinges.
Note: These hinges are not available in Germany.
For custom finishes and technical assistance, contact the CRL Technical Sales Shower Door Department today.
