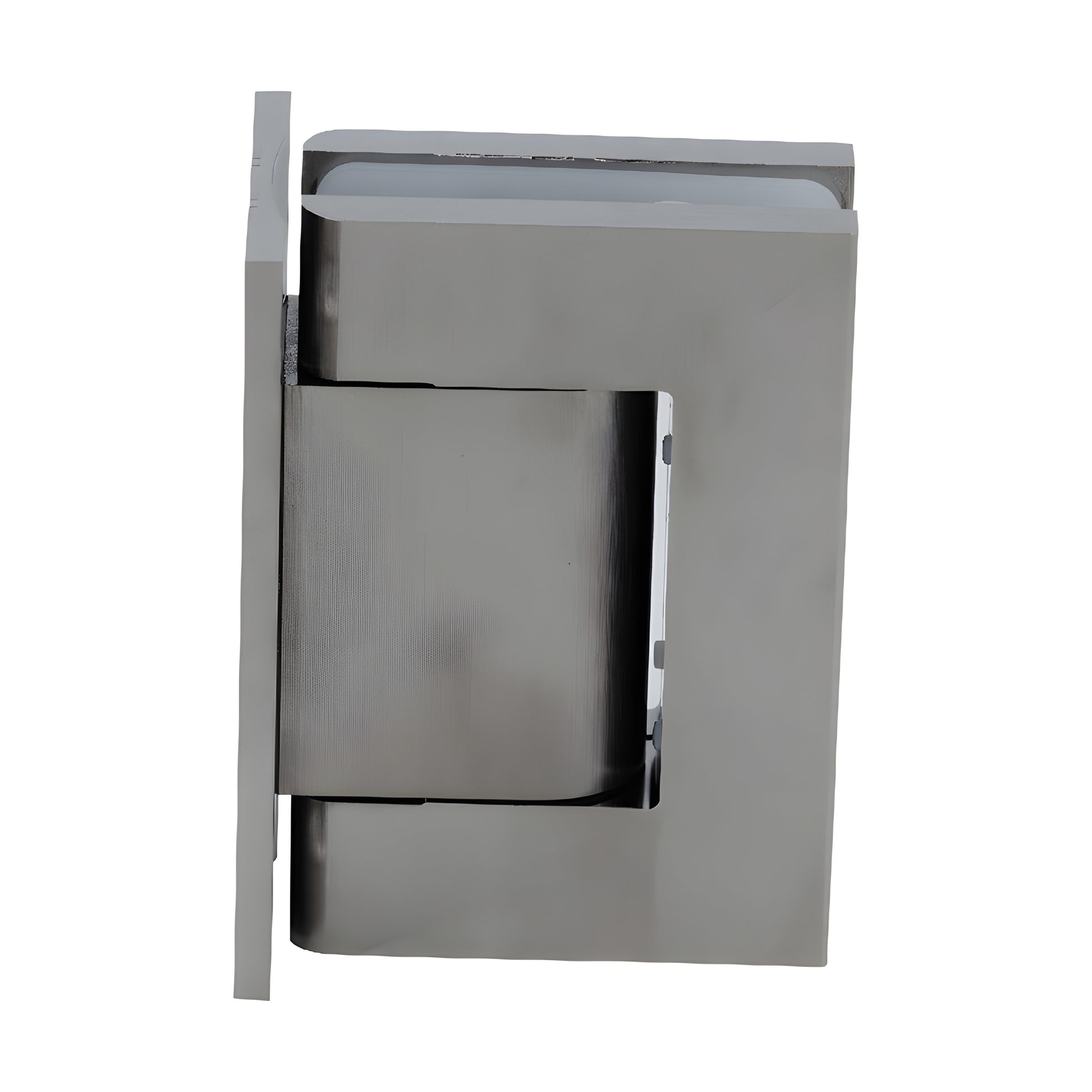

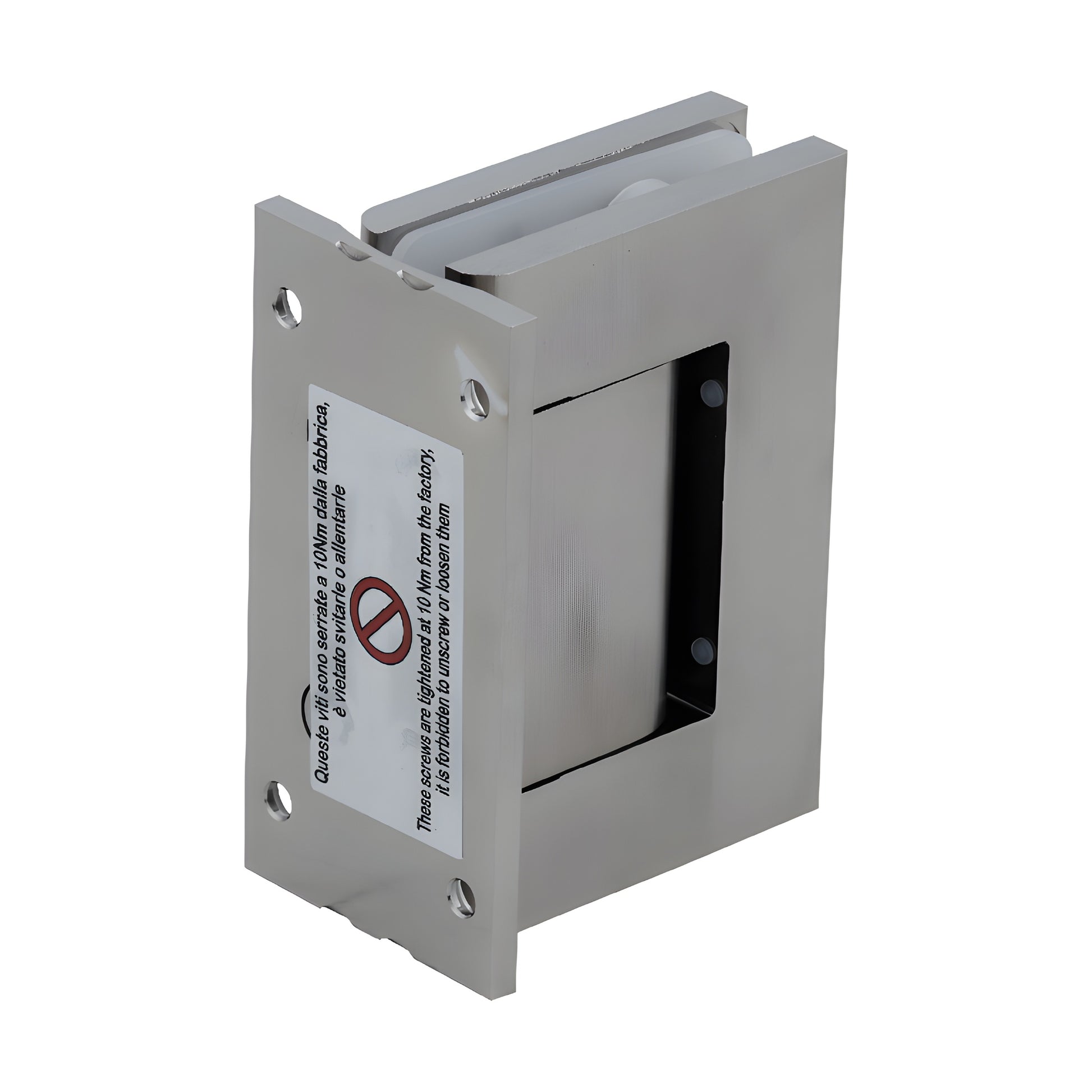

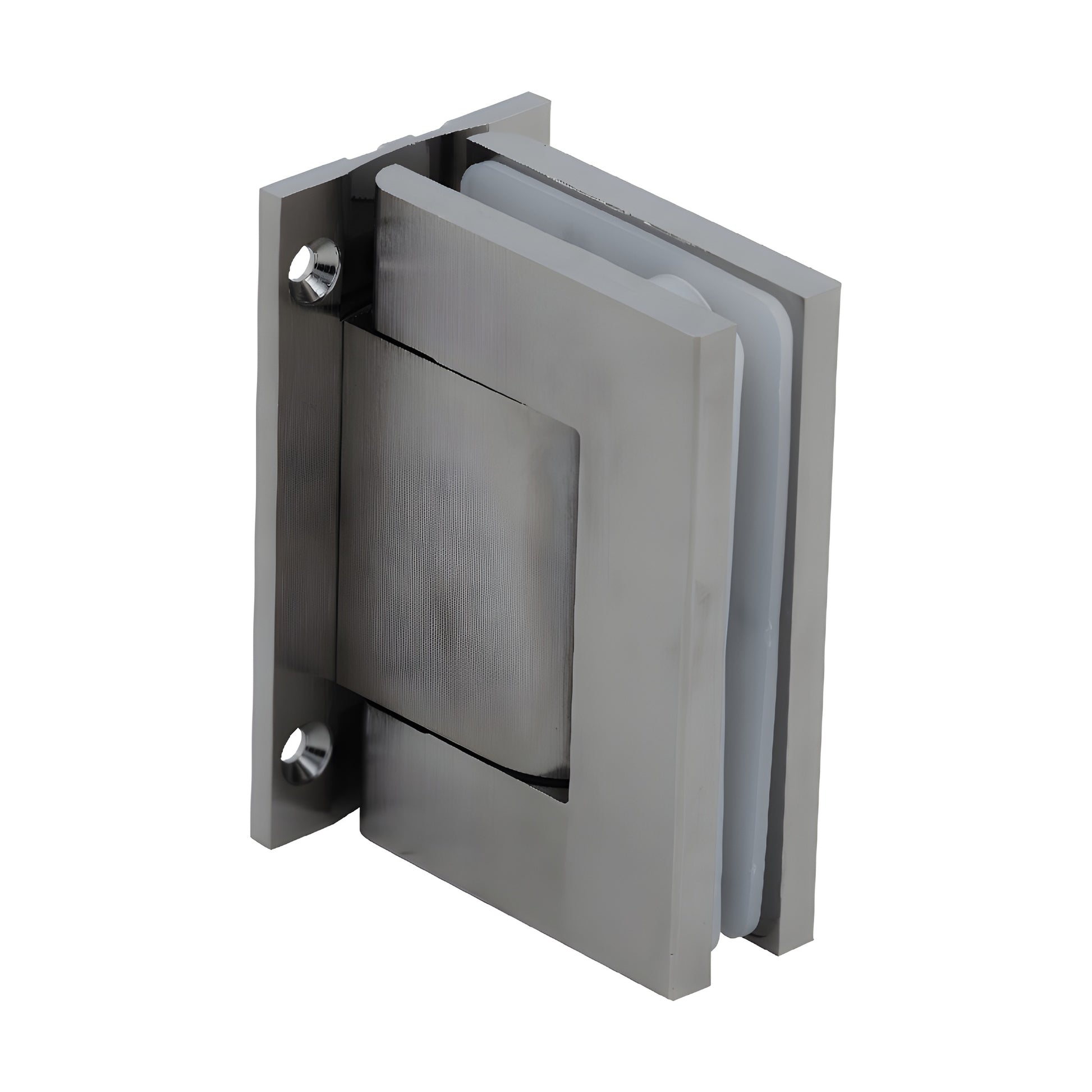

CRL Brushed Satin Nickel Vernon Oil Full Backplate Wall Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Designed for interior doors in humid conditions and high temperatures (steam rooms, Turkish baths)
• Aluminum body available in Brite Chrome, Brushed Satin, and Satin Anodized finishes
• Adjustable closing speed with positive 0° and 90° stops; ambidextrous design
• Ideal alternative to floor closers and patch fittings for all-glass retrofits

CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU: H8010BTSN) swings in and out a full 90° with stops at 0°, +90°, and −90°. Adjustable closing speed and oil-damped operation let you create a self-closing glass door without floor-mounted or overhead closers—perfect for installing all-glass interior doors in existing openings. Rated for doors up to 39" (1 m) wide; maximum capacity using two hinges is 220 lbs. (100 kg). Tested for durability (over 1 million cycles) and engineered for humid, high-temperature environments up to 212°F (100°C).

The Oil Dynamic hinge combines automatic mechanical hinge convenience with hydraulic closing control. Ambidextrous with positive stops and a control valve for precise adjustment, it supports typical steam-room and shower-door installations while avoiding invasive floor or header modifications.

SPECIFICATIONS:

• Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
• Construction: Aluminum
• Hinge Swings: 90° inward and outward (except H8060 model)
• Closing Type: Automatic closing from 0° to 80° with adjustable speed
• Special Feature: Holds open at 90°; ambidextrous; no-hold-open models not available (except H8060)
• Cut-out required; includes snap-in molded gaskets for 5/16"–9/16" (8–13.52 mm) glass and hex screws
• Maximum capacities using two hinges: Door Width 39" (1 m); Door Weight 220 lbs. (100 kg)

NOTE: Do not use more than two hinges on one door. Not suitable for exterior/outdoor use—see H8015JC Series for exterior applications.

Product Warning:

Do not use more than two hinges on one door. For uses other than intended, obtain approval from the CRL Technical Sales Department. Use only the included template—cut-out dimensions for CRL hinges may differ from other brands. Hinge cover plate uses a 4mm Allen key.
