- Welded and finished cap rail corners (SKU: GR15H3BS)
- Ready-to-install interior slip-fit corners
- Four architectural finishes available
- Requires two connector sleeves (not included)

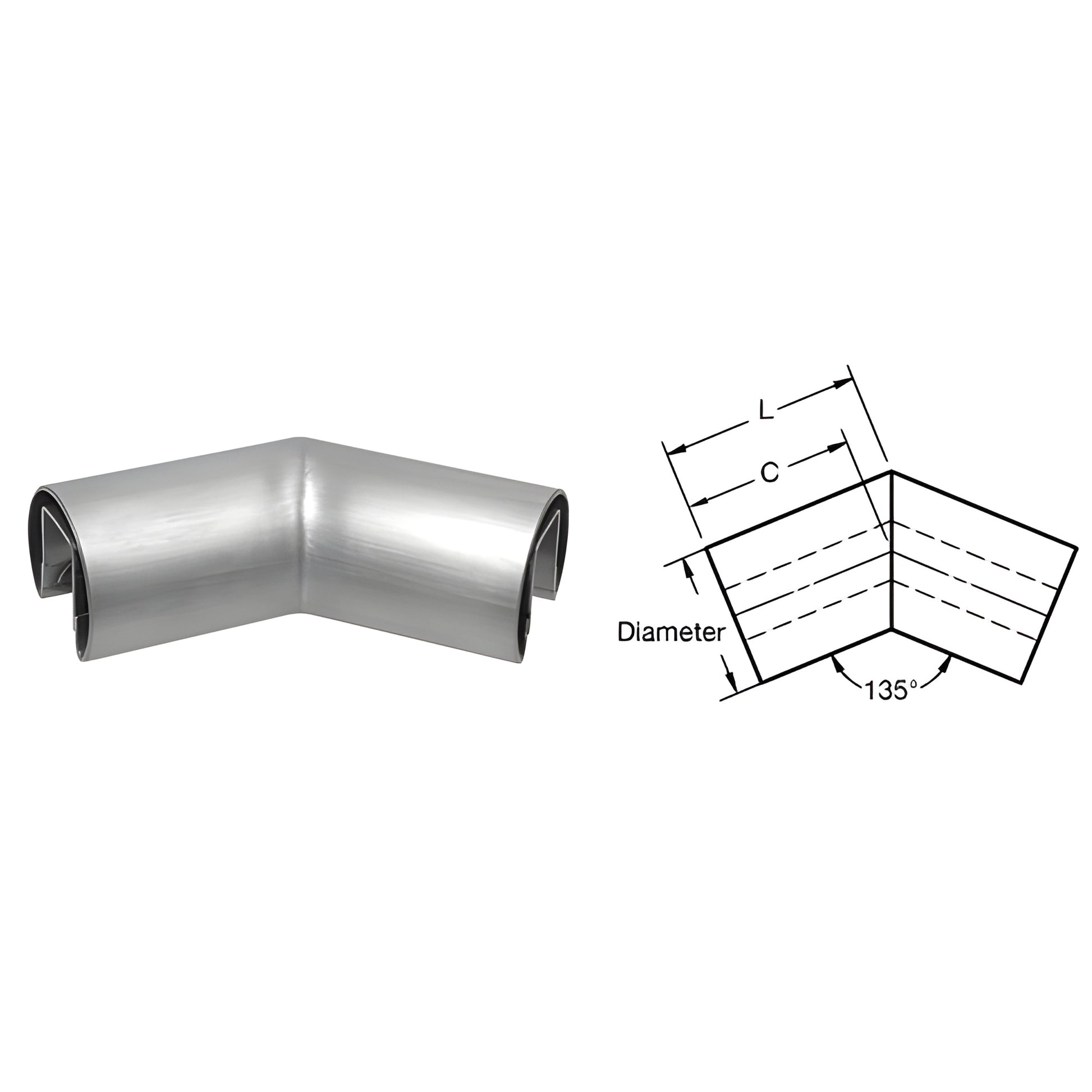

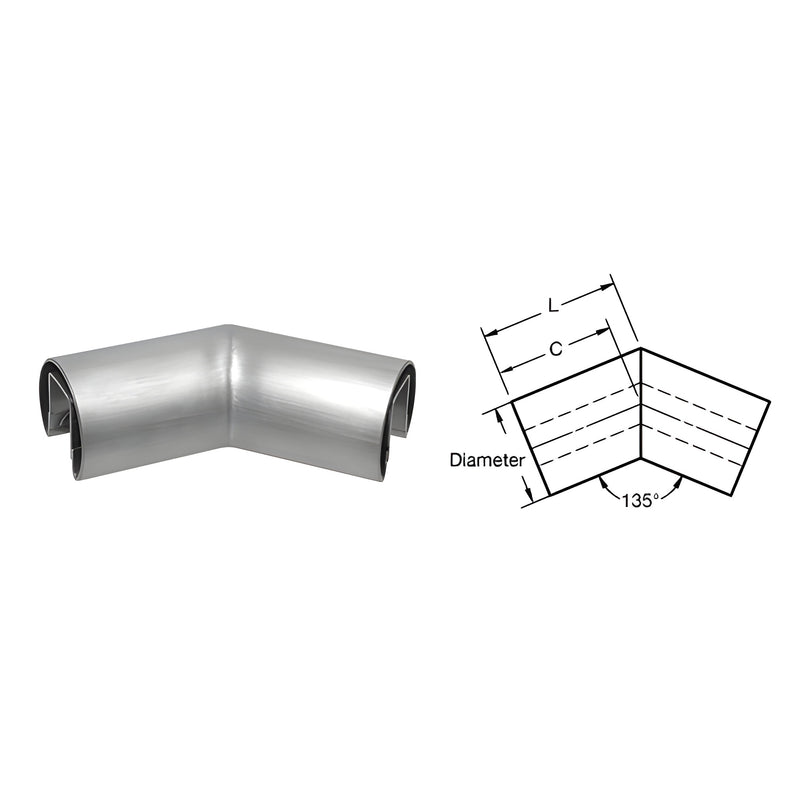

Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow hairline joint assemblies with straight lengths of
CRL Cap Rail. These welded and finished cap rail corners are designed for secure, ready-to-install glass railing assemblies; use Cat. No. 32629 Metal Contact Cement to achieve a permanent bond. Two connector sleeves are required per corner.
Each horizontal corner is fabricated, finished, and individually packed. Stainless and brass corners are produced from CRL Premium Cap Rail and welded and finished to match. Standard stainless alloy is 304; stainless 316 is available by special order. Brass uses alloy 260 as standard. Contact
CRL Technical Sales for alloy options, lead times, or a quote.
Installation note: Except for GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. When using GR15 Series corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs prior to ordering, please request it from CRL Customer Service. Product images are actual product or close representation; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For pricing, finish options, or to order GR15H3BS horizontal cap rail corners for glass rail systems, contact CRL Technical Sales or CRL Customer Service today.
