CRL

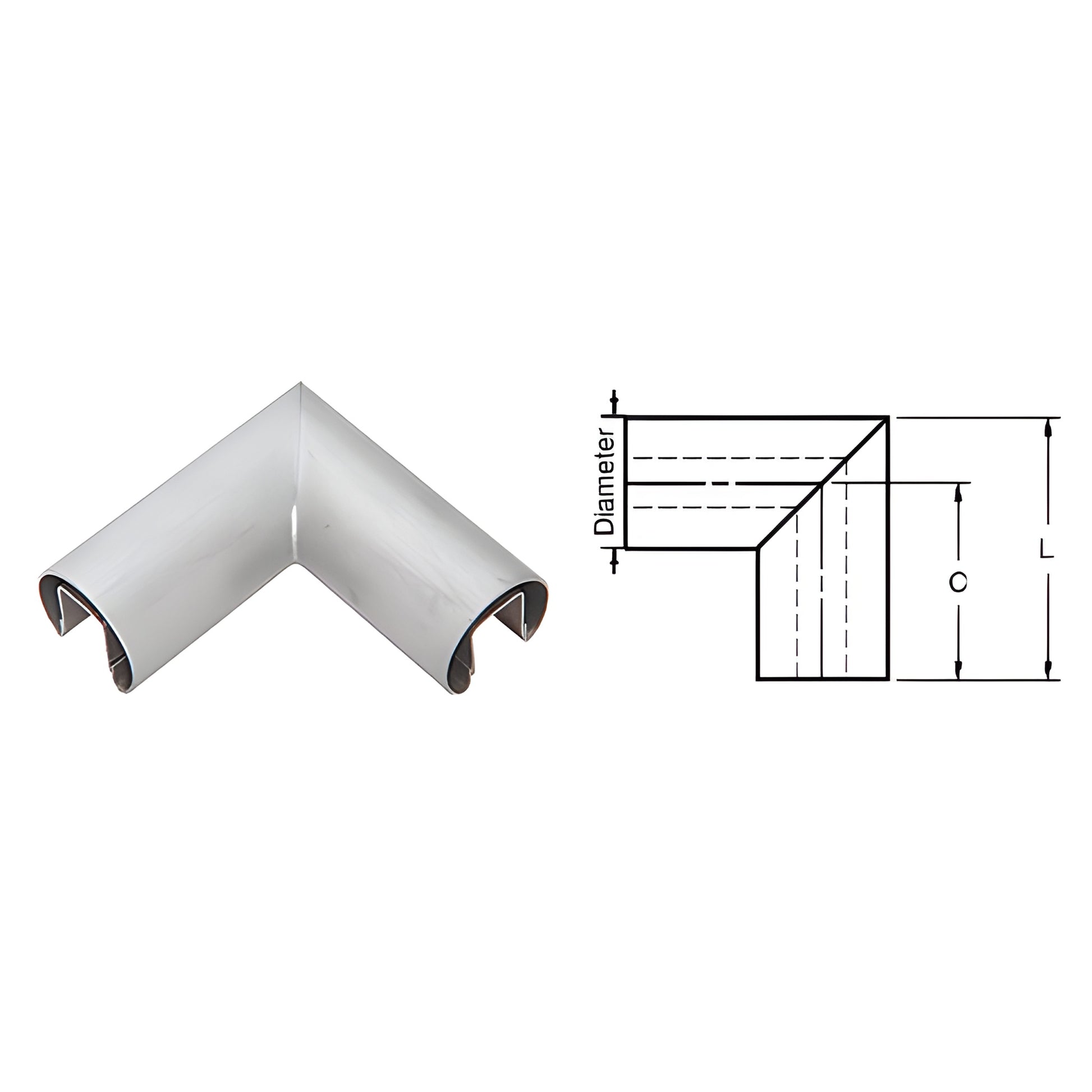

CRL Brushed Stainless 1.5in 90° Glass Cap Railing Corner for 1/2–5/8in
CRL Brushed Stainless 1.5in 90° Glass Cap Railing Corner for 1/2–5/8in
Regular price
$348.58 CAD
Regular price
Sale price
$348.58 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GR15HBS
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
90
Diameter
1-1/2 in. (38 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Overview
- Welded, finished, and ready-to-install
- Four architectural finishes: stainless (304 standard, 316 special order) and brass (alloy 260)
- Interior slip-fit horizontal corner for 1/2" (12 mm) or 5/8" (16 mm) glass
- Requires two connector sleeves per corner (not included)
- SKU: GR15HBS
Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass create hairline joint assemblies with straight lengths of CRL Cap Rail. For a secure, permanent bond use CRL Cat. No. 32629 Metal Contact Cement. Two connector sleeves are required for each corner.
Each GR15 Series horizontal corner is fabricated, finished, welded, and individually packed. All stainless and brass corners are made from CRL Premium Cap Rail and finished to match. Standard stainless alloy is 304; 316 is available on special order. Brass standard is alloy 260.
Installation Note: Except for GR15 Series Cap Rail Corners, when using 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl plus 95CBL Silicone to secure the glass. When using GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, secure the glass with shims and 95CBL Silicone only.
Product Warning: For 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone. For 5/8" (16 mm) glass secure with shims and 95CBL Silicone.
Please contact CRL Technical Sales for technical assistance, lead times, or a quote. Short on time? Request a quote with SKU GR15HBS.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Specifications
Cleaning & Maintenance
