CRL Brushed Stainless 1/2in Glass Low-Profile Square Door Rail w/Lock

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

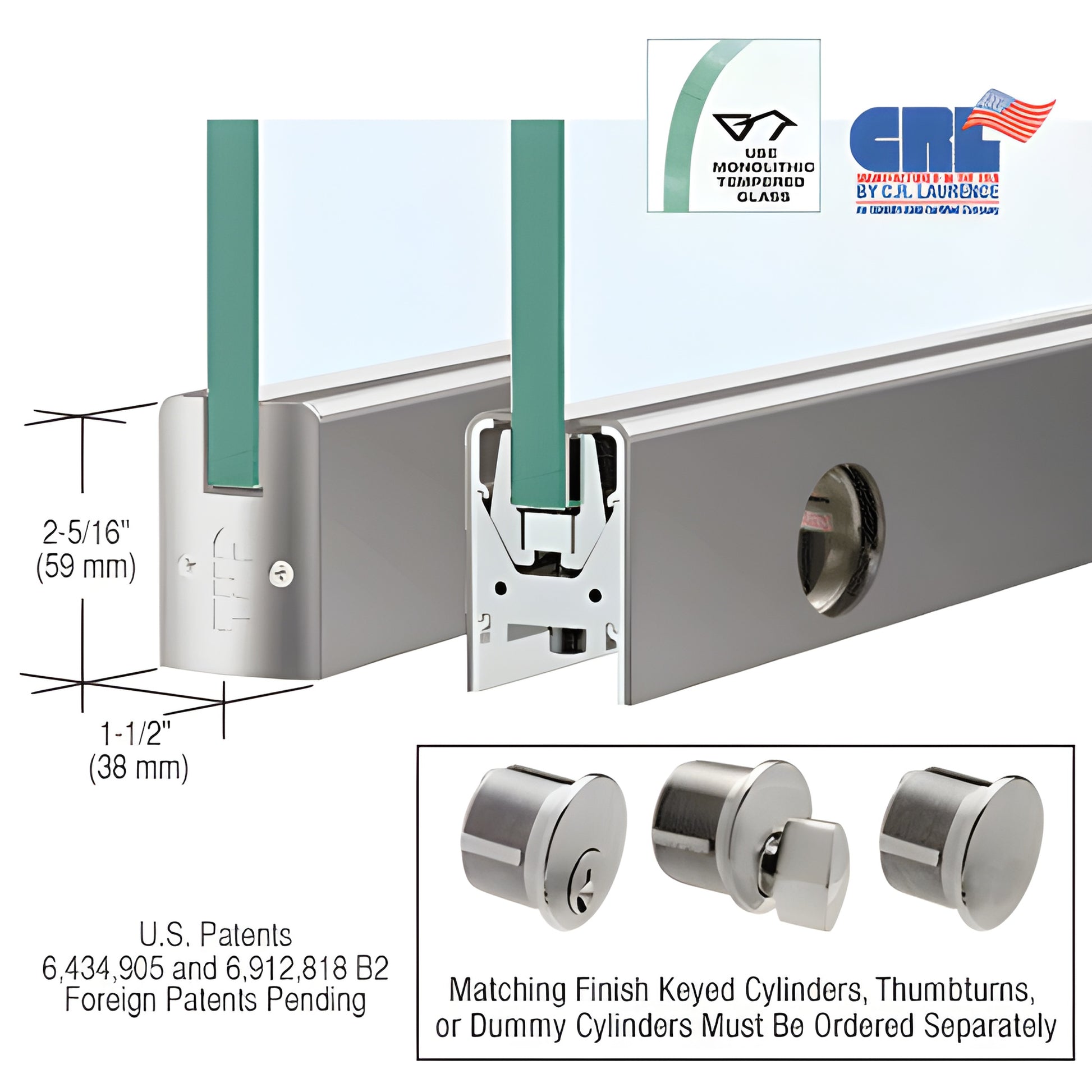

Our CRL Low Profile Door Rail (SKU: DR2SBS12CL) is designed for 1/2" (12 mm) monolithic tempered glass and measures only 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide. It features CRL’s patented Wedge-Lock® Glass Securing System (U.S. and international patents) for fast, secure installation and long-term glass retention. Rails ship complete with End Caps, installation instructions, and adjustment wrenches.

Key Differentiators:

• Fast installation: Wedge-Lock® enables experienced installers to prepare a door in less than ten minutes.
• Built-in Adjustable Door Alignment System: ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door — standard on top and bottom rails.
• Rigid single-component housing: prevents shift or loss of adjustment over time.
• Durable internal components and long-life glass securing pads for extreme environments.
• Flexible fabrication: accommodates vertically out-of-square openings and alternative setback positions.

Product Details:
• Actual Product Height: 2-5/16” (59 mm).
• Rails come pre-fabricated and ready-to-install; attach door arm or pivot (not included) to the adjustable alignment slide already assembled in the rail.
• After installation, remove End Cap to access three socket head cap bolts: center bolt secures the slide; outer bolts adjust ±1/8" (3 mm).
• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass (select models).
• All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms and pivots must be ordered separately.

Finishes & Ordering:
CRL Wedge-Lock® Door Rails are available in several standard architectural finishes; custom finishes and widths can be quoted on request. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.

Ordering Information:
• All Door Rails are supplied with the standard Kwik-Adjust™ Pivot
