CRL Brushed Stainless 1/2" Glass Tapered Door Rail with Lock - Custom

• Custom Length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (fastest installation times)
• Low profile rails: 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

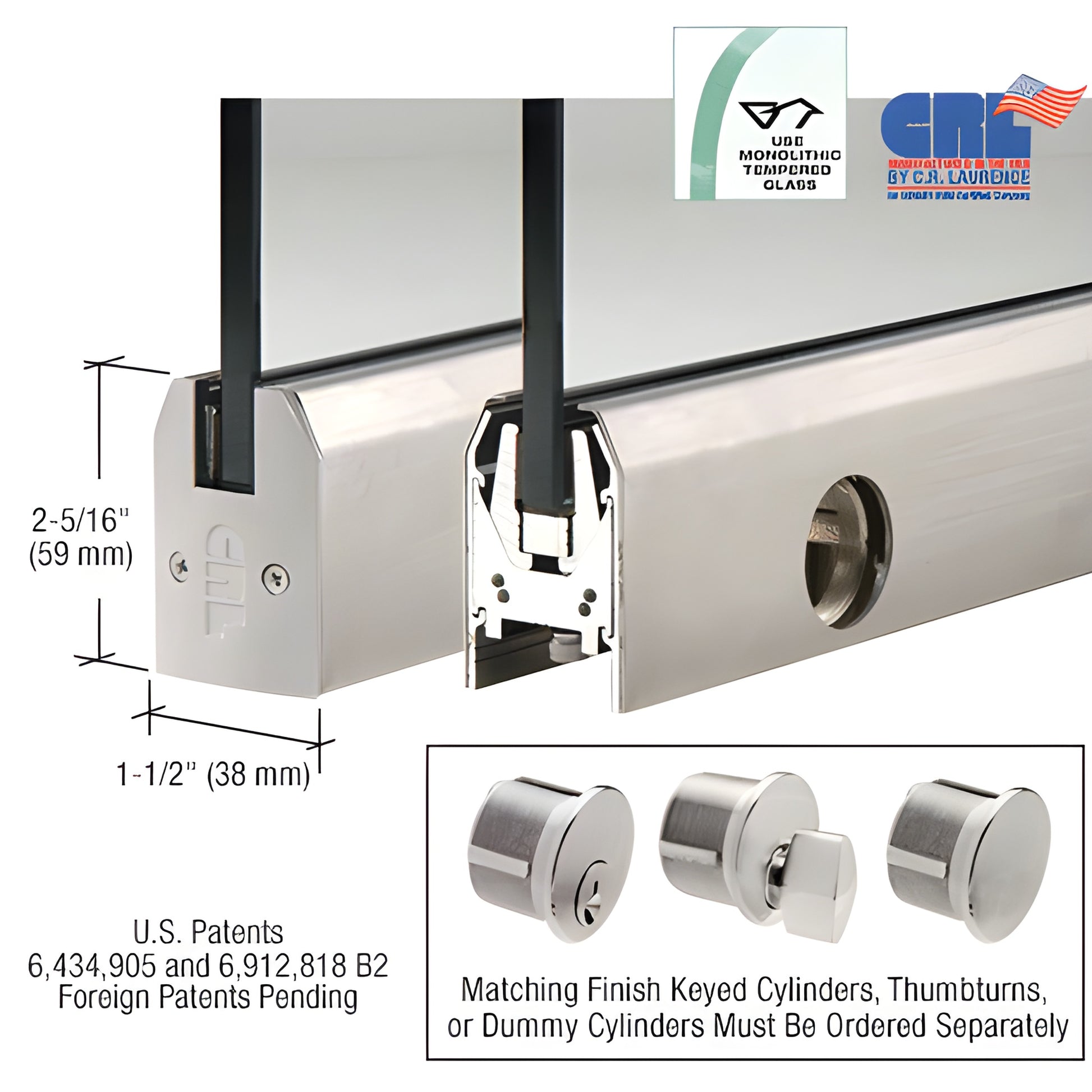

Our CRL Low Profile Door Rail (SKU: DR2TBS12CL) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails include End Caps, installation instructions, and adjustment wrenches for quick, job-ready installation.

NOTE: Actual product height: 2-5/16” (59 mm)

The Wedge-Lock® system secures 1/2" (12 mm) glass while delivering the fastest installation of any door rail system—experienced installers can prepare a door in less than ten minutes. Rails ship fully fabricated and ready-to-install. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System lets you fine-tune the door 1/8" (3 mm) toward or away from the jamb without removing the door. This adjustability is standard on both top and bottom rails. To access adjustments, remove the End Cap to reveal three socket head cap bolts: the center bolt locks the slide; the outer bolts adjust the slide in or out by 1/8" (3 mm). The low-profile slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Other benefits of Wedge-Lock® Door Rails:

• Available models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing resists shifting and maintains alignment over time
• Internal components remain in place during installation
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All door rails are supplied with the standard Kwik-Adjust™ Pivot Alignment System. Closer arms
