Product Details
- Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
- Provides Even Sightline With Our Door Rails
- Ready-to-Ship Models From CRL Inventory
- Use Monolithic Tempered Glass
- Matching Door Rails Available for an Even Sightline

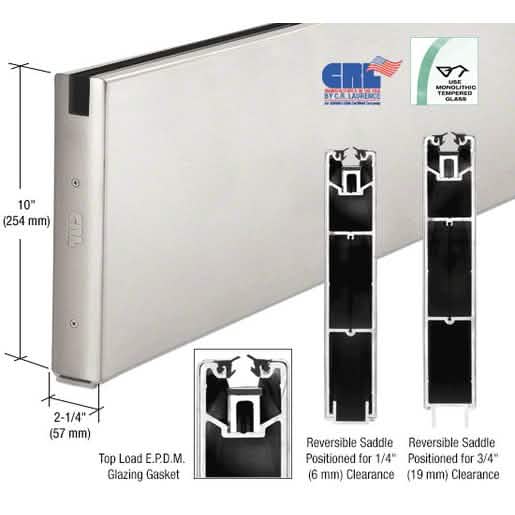

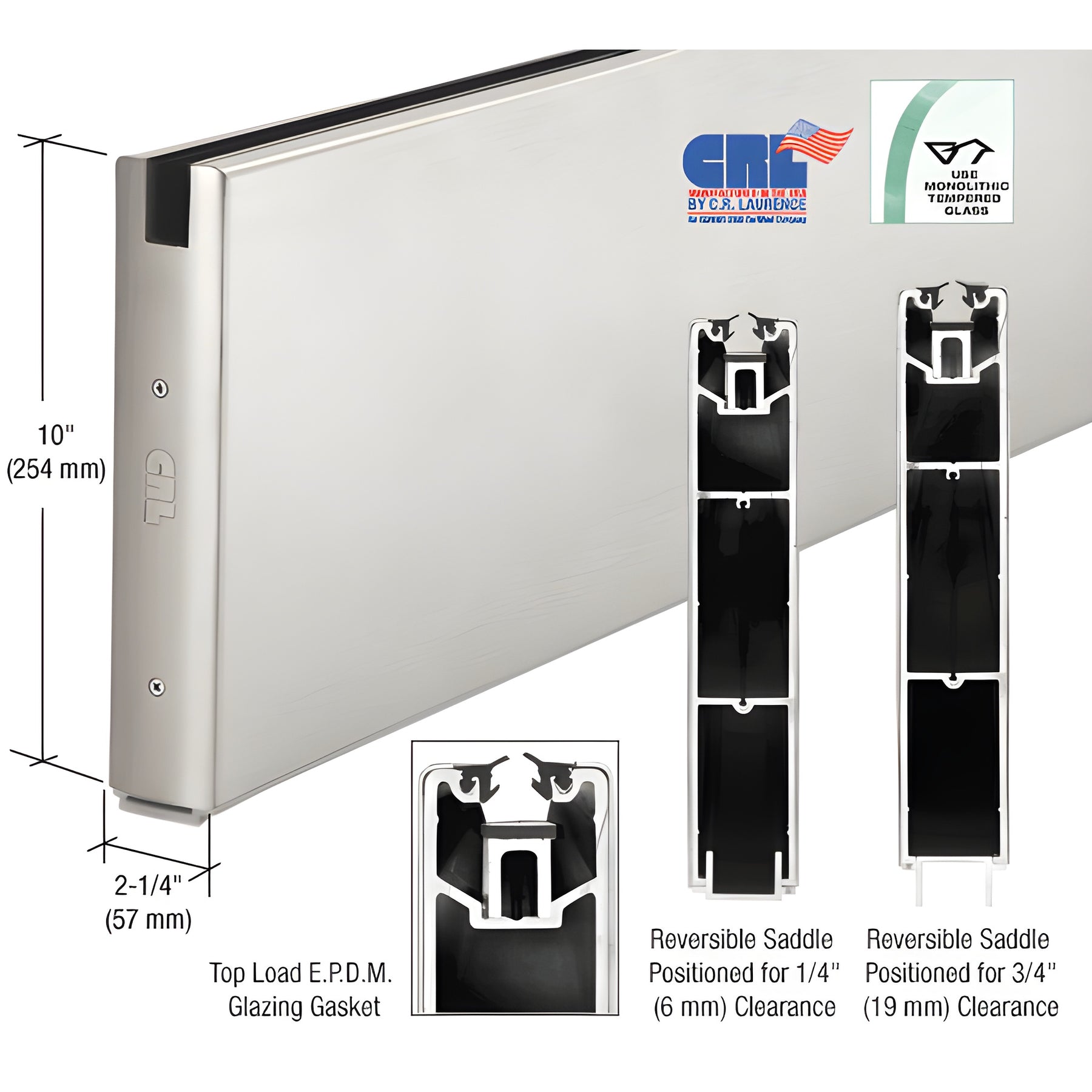

The CRL 10" (254 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant.
NOTE: Actual Product Height : 10” (254 mm)
ORDERING INFORMATION:
• Sidelite Rails on this page come with vinyl to glaze 3/4" (19 mm) glass. If using 5/8" (16 mm) glass, GG38 Series Vinyl must be ordered separately.
• All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.10 m) lengths.
• Custom lengths and finishes are available.
• SREC10S Series End Caps (for 3/4" Glass) and Cat. No. UCSB4 Setting Blocks must be ordered separately.
Product Warning:
Shown with End Caps which must be ordered separately. Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
