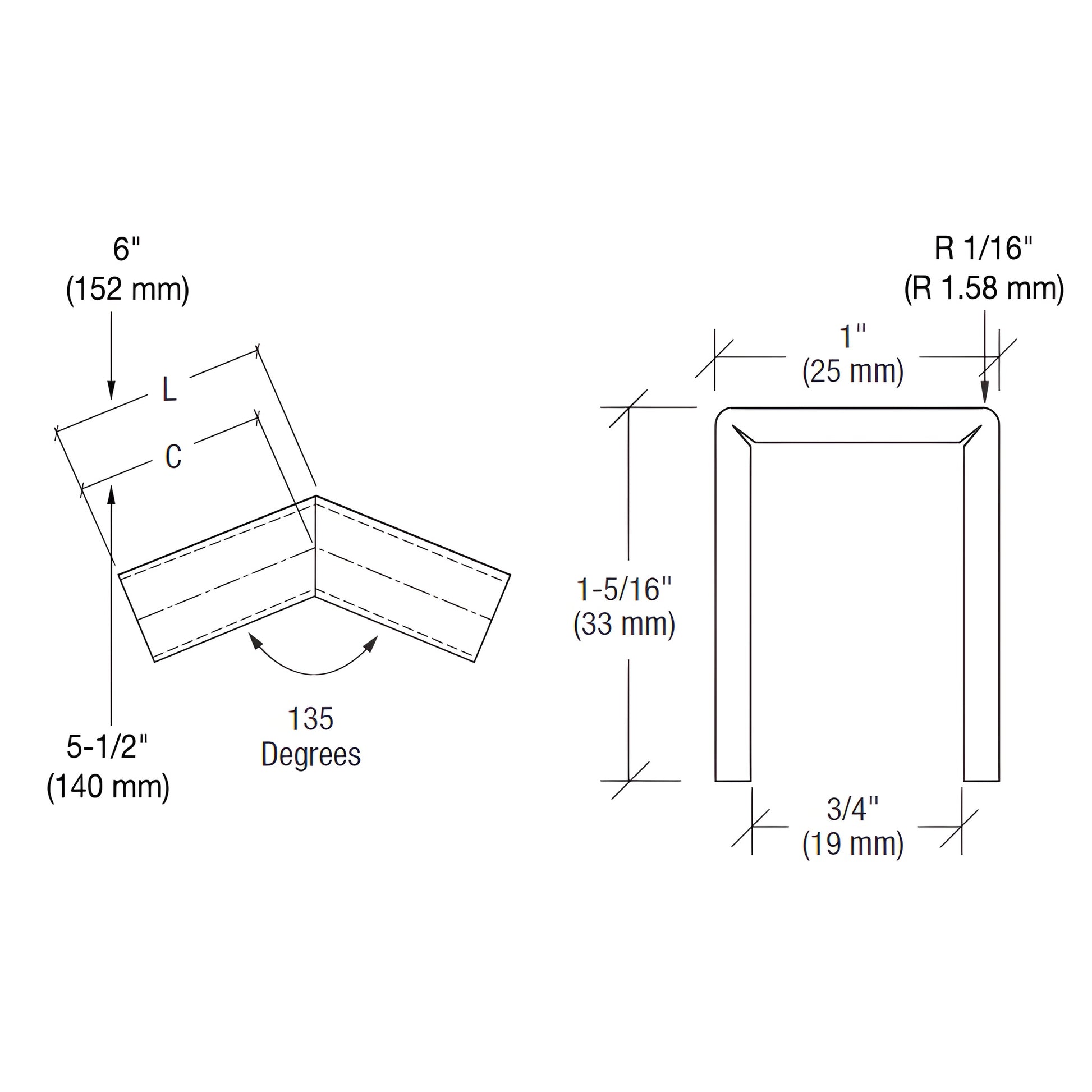

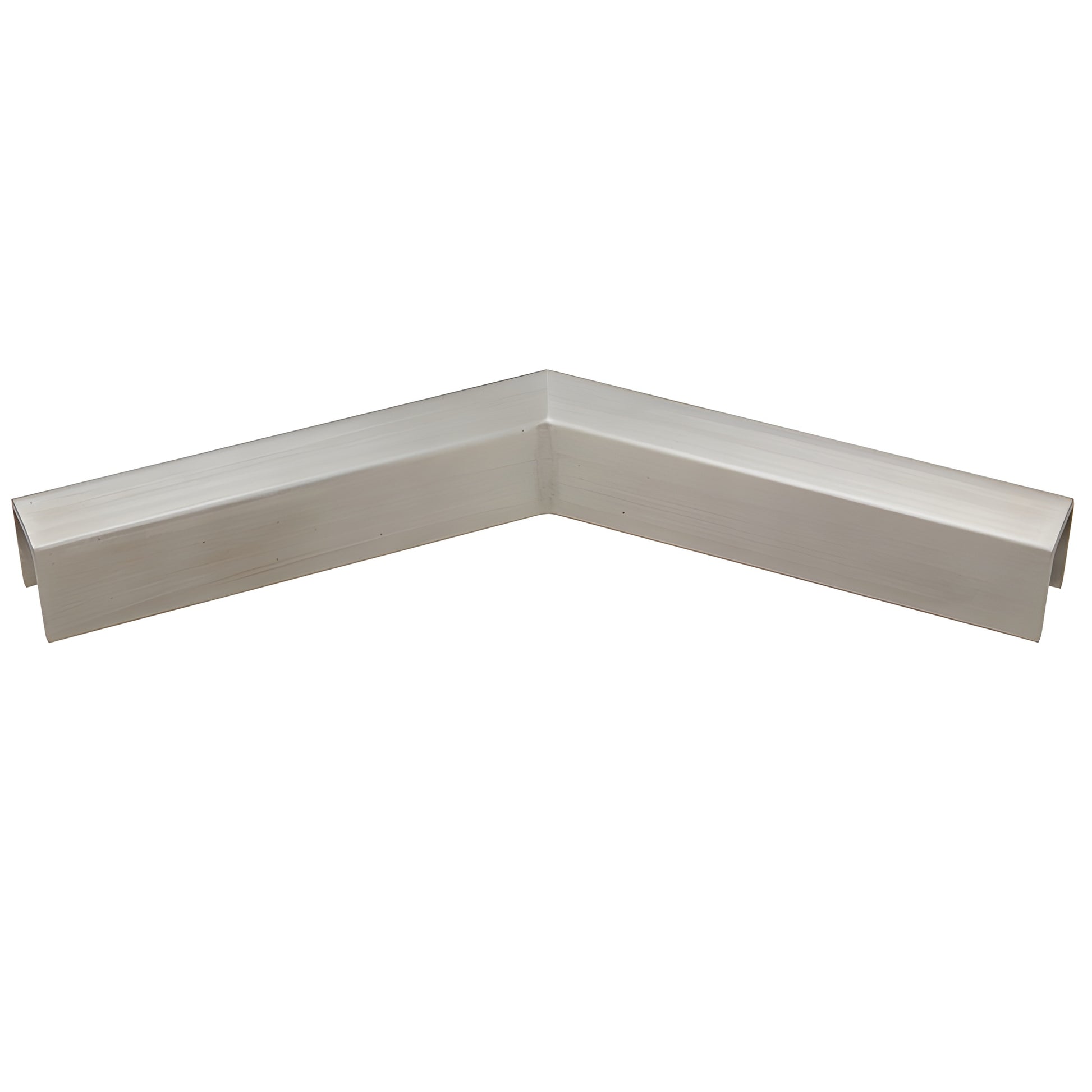

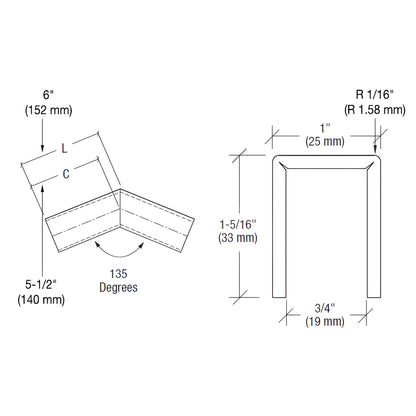

• Brushed stainless steel 135 slip-fit corner connector for 1/2 in (12mm) or 5/8 in (16mm) glass railing, SKU GRLC10H3BS
  • Brushed stainless steel 135 slip-fit corner connector for 1/2 in (12mm) or 5/8 in (16mm) glass railing, SKU GRLC10H3BS
1 2

CRL

CRL Brushed Stainless 11ga 135° Low-Profile Cap Rail for 1/2" Glass

CRL Brushed Stainless 11ga 135° Low-Profile Cap Rail for 1/2" Glass

$345.98 CAD
$345.98 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# GRLC10H3BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Alloy
304
Angle
135
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Material
Stainless Steel

Overview

  • Two Profiles for 1/2" (12 mm) or 5/8" (16 mm) Glass
  • Two Finishes Available
  • Welded and Finished
  • Ready-to-Install

CRL Slip-Fit 135 Degree Horizontal Corners (SKU: GRLC10H3BS) are designed for 1/2" (12 mm) or 5/8" (16 mm) thick glass and provide hairline joint assemblies with straight lengths of CRL 11 Gauge Cap Railing. These 135 degree horizontal corner connectors for glass railing systems yield clean, low-profile joints ideal for commercial and residential glass guardrail and balustrade applications. Use Cat. No. 32629 Metal Contact Cement for a secure, permanent bond. Two connector sleeves are required with each corner. Standard stainless alloy is 304; stainless 316 is available by special order.

Installation notes: When used with 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl plus 95CBL Silicone to secure the glass. For 5/8" (16 mm) glass, secure with 95CBL Silicone and shims only. These recommendations help ensure correct fit and long-term performance of the GRLC10H3BS corner connectors.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, and shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to help maintain the factory finish. For more information, view the Stainless Steel Disclaimer

Specifications

Cleaning & Maintenance
CRL Stainless Steel Disclaimer
