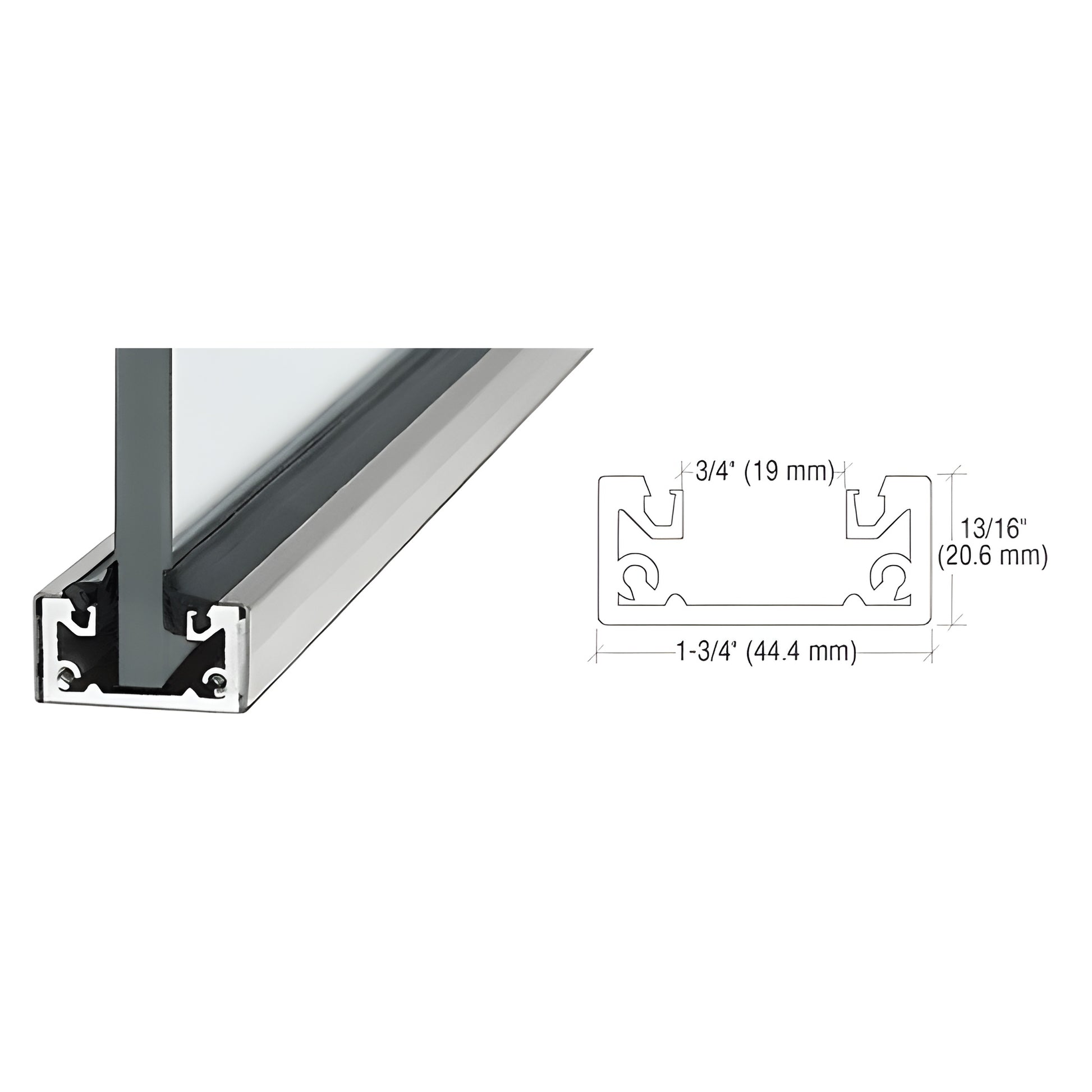

CRL 10 ft Brushed Stainless Steel Shallow U-Channel for Glass

• Uses top-loading roll-in glazing gasket for 3/8" and 1/2" (10 and 12 mm) glass
• Ideal for recessed "all-glass" frameless glass installations
• For use with monolithic tempered glass
• Nine standard architectural finishes; custom finishes and powder painting available
• Custom lengths available; stock lengths: 120" (3.05 m) and 240" (6.10 m)

CRL Shallow U-Channel can be used as a sash channel above a header or installed in walls or floors where drywall or finished flooring conceal the channel to create a true "all-glass" look. Stock lengths are 120" (3.05 m) and 240" (6.10 m).

SKU: SCBS3812SL

NOTE: The roll-in glazing gasket is included when using 1/2" (12 mm) glass. For 3/8" (10 mm) glass, order the roll-in glazing gasket separately.


Product Warning:

This material is stainless steel cladded aluminum and cannot be cut with a standard chop saw or abrasive blade—these methods will overheat and damage the cladding finish. Cut with a cold saw to protect the finish. For guidance, contact Technical Sales.

Stainless Steel Advisory:

Durable stainless steel-cladded aluminum, available finishes, and custom lengths make this shallow U-channel ideal for frameless glass storefronts and recessed glass partitions. Order SKU SCBS3812SL or contact us for custom options and technical assistance.
