CRL 1202 Brushed Stainless Frameless Glass Gate w/ In-Rail Closer
CRL 1202 Brushed Stainless Frameless Glass Gate w/ In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202G1BSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)

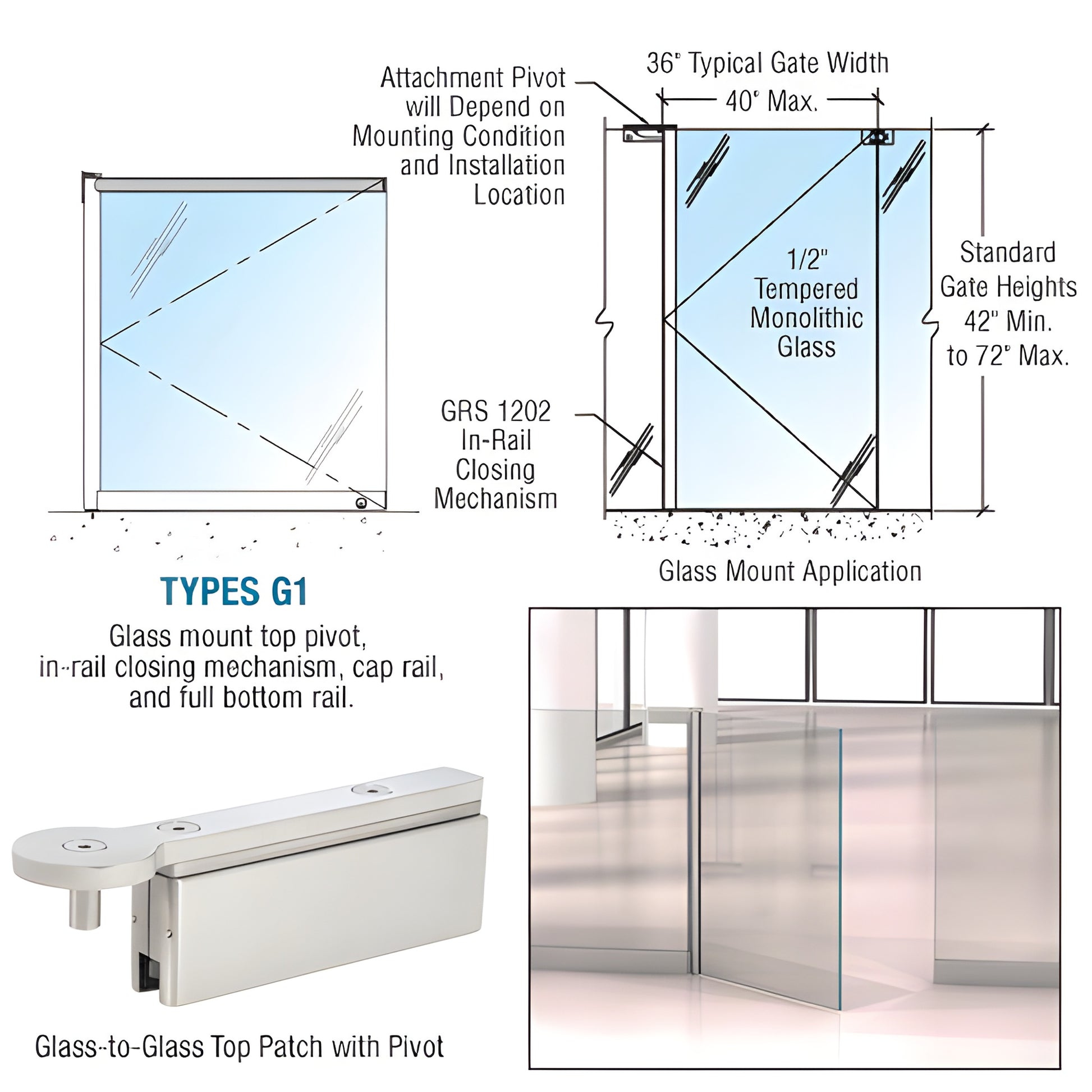

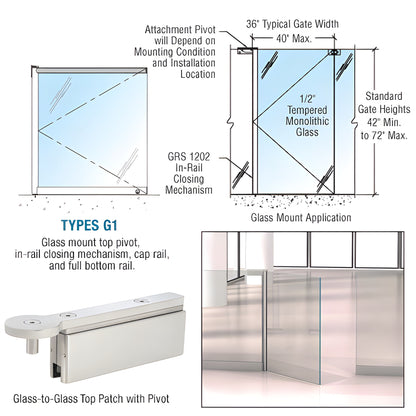

Overview
- Heavy-duty glass gate with optional cap rail (SKU: 1202G1BSC)
- Elegant design and smooth, functional operation
- Unique in-rail closing device concealed in the vertical post
- Round vertical edge gate pivot post prevents finger pinch
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Double-acting (no hold open) swing design
- Optional locks available
Designed for commercial and residential installations, these swinging glass gates integrate with the GRS Glass Rail System or function as a standalone solution. An offshoot of our Wedge-Lock® Door Rail System, the gate accepts optional GRS cap rails and swings on heavy-duty ball bearing pivots.
Minimum required height: 40". Maximum gate size: 40" x 70".
Our engineers developed a concealed in-rail closing mechanism inside the vertical post, removing the need for bulky floor enclosures. The closer always returns the gate to the closed position and features adjustable closing speed. Note: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department for assistance.
Product Warning:
All swinging gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Choose this durable, tempered-glass swinging gate for secure, code-aware installations—custom fabricated to your project specs. Contact us now to start your order.
Specifications
CAD Drawings - pdf
