CRL 1202 Brushed SS Glass-to-Glass Gate, Self-Closing, Cap Rail
CRL 1202 Brushed SS Glass-to-Glass Gate, Self-Closing, Cap Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202G2BSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview
- Heavy-duty glass gate with optional cap rail — ideal for commercial and residential use
- Attractive design with smooth, reliable operation
- Unique in-rail closing device concealed in the vertical post for a clean look
- Round vertical edge pivot post prevents finger pinch
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass panels
- Double-acting (no hold open) self-closing design — adjustable closing speed
- Optional locks available

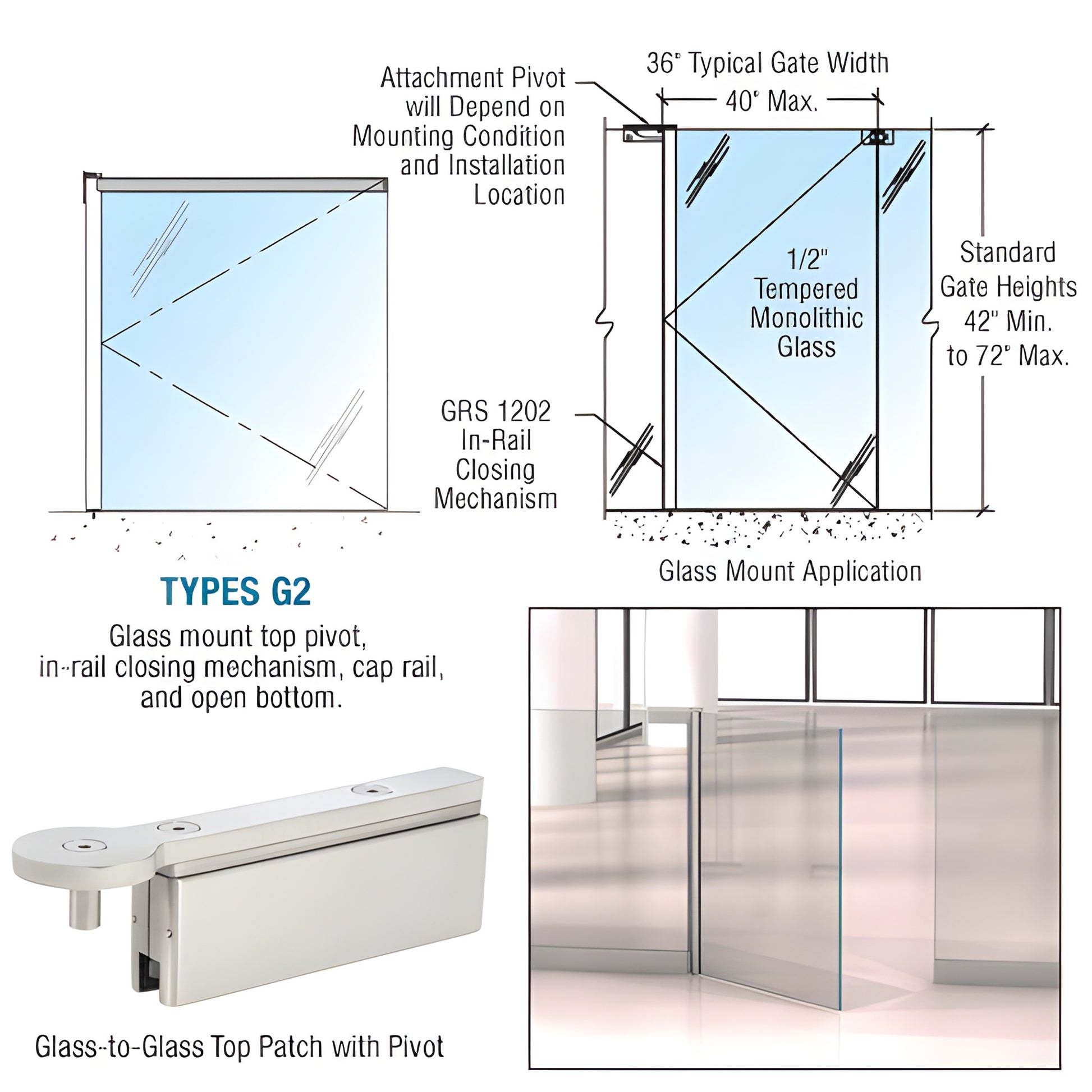

We offer Swinging Gates (SKU: 1202G2BSC) engineered for integration with the GRS Glass Rail System or as stand-alone gates. Derived from our Wedge-Lock® Door Rail System, these gates can be combined with GRS cap rails. Top and bottom swing on heavy-duty ball-bearing pivots for durable, low-friction performance.
Minimum required height: 40". Maximum gate size: 40" x 70".
Our engineers designed a concealed in-rail closing mechanism located inside the vertical post, eliminating large floor enclosures. The closer always returns the gate to the closed position and includes an adjustable closing speed. NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department for assistance.
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section below.
Highlights: heavy-duty tempered glass gate, concealed in-rail closer, double-acting self-closing mechanism, optional cap rail and locks — engineered and fabricated in Los Angeles. Contact Technical Sales to customize your gate or request a quote.
Specifications
CAD Drawings - pdf
