CRL 1202 Series Brushed Stainless Post-Mounted Gate w/In-Rail Closer
CRL 1202 Series Brushed Stainless Post-Mounted Gate w/In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202P1BSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview
- Heavy-duty glass gate with optional cap rail
- Elegant design with smooth, functional operation

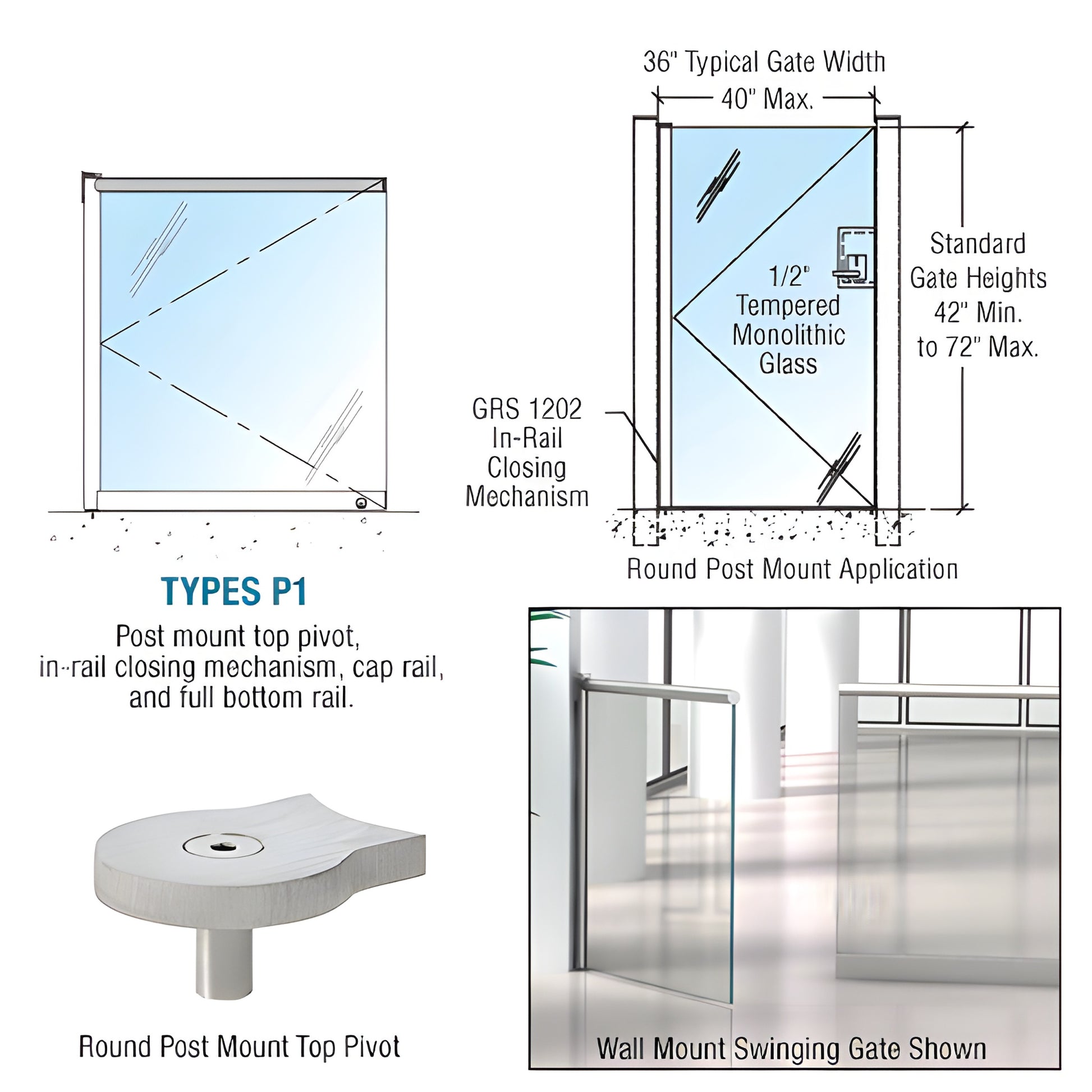

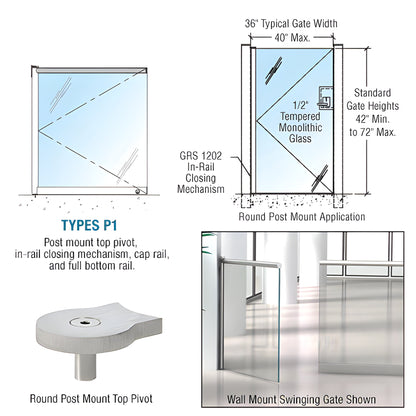

- Unique in-rail closing device concealed in the vertical post
- Round vertical edge gate pivot post prevents finger pinch
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Double-acting (no hold-open) swinging gate design
- Optional locks available
Our Swinging Gates are designed for commercial and residential applications and integrate seamlessly with the GRS Glass Rail System and Wedge-Lock® Door Rail System. Top and bottom gate swing on heavy-duty ball-bearing pivots for reliable, long-lasting performance.
Minimum height required: 40". Maximum gate size: 40" x 70".
Engineered with a concealed in-rail closing mechanism inside the vertical post, this tempered glass swinging gate eliminates bulky floor enclosures. The closer returns the gate to the closed position with adjustable closing speed—ideal for commercial glass safety gates and residential glass entry solutions.
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department for assistance.
SKU: 1202P1BSC
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section.
For pricing, customization options, or technical support on this heavy-duty tempered glass gate, contact CRL Technical Sales or place a custom order today.
Specifications
CAD Drawings - pdf
