CRL 1202 Brushed SS Post Gate w/ In-Rail Closer, Cap & Open Bottom
CRL 1202 Brushed SS Post Gate w/ In-Rail Closer, Cap & Open Bottom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202P2BSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

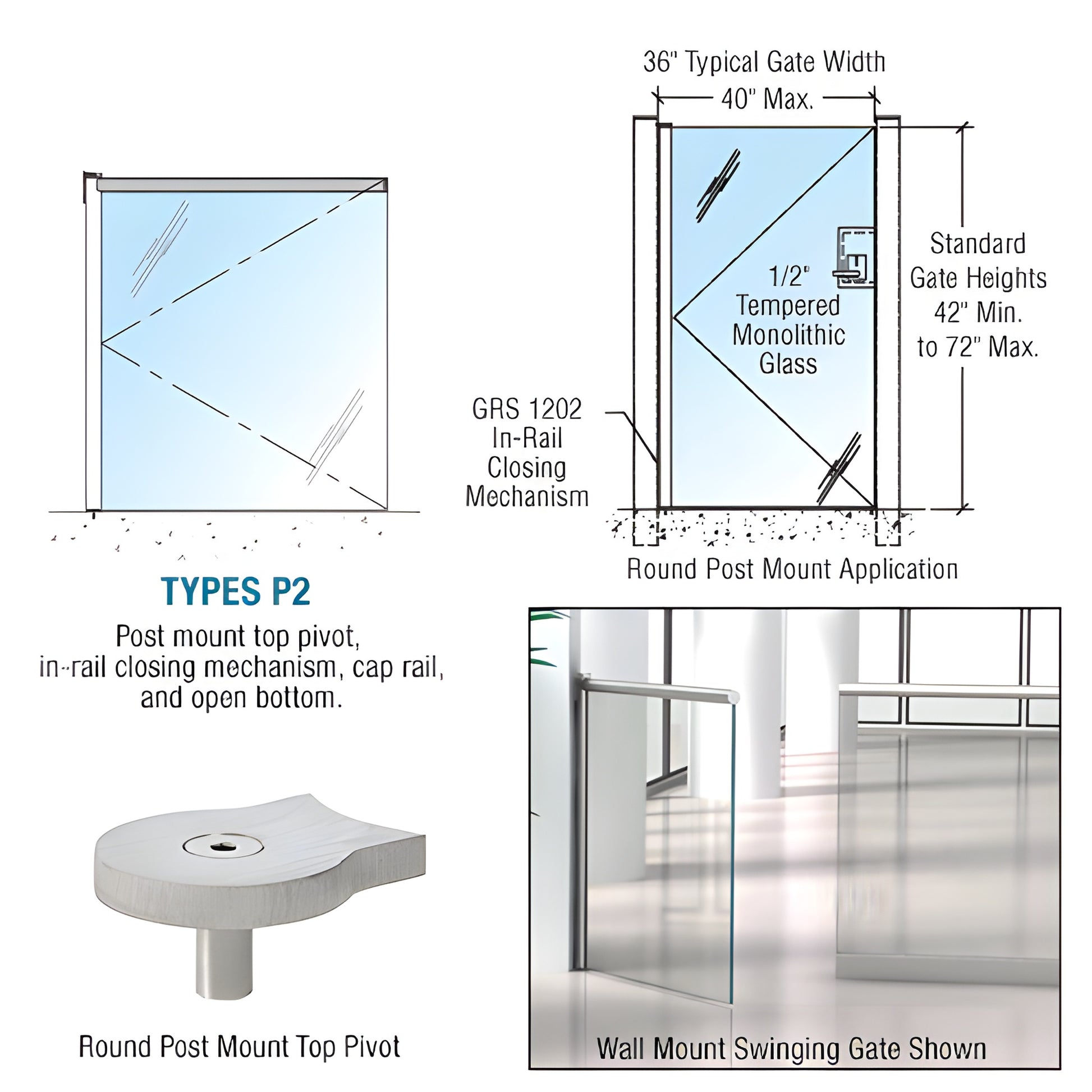

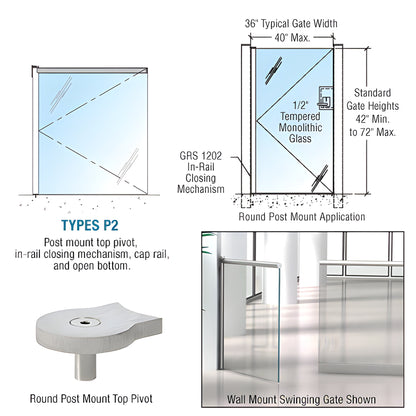

Description
Finish/Color
Brushed Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview
- Heavy-duty glass gate with optional cap rail
- Attractive design engineered for reliable operation
- Unique in-rail closing device concealed inside the vertical post
- Round vertical edge pivot post prevents finger pinch
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Double-acting (no hold-open) swinging gate
- Optional locks available
SKU: 1202P2BSC. Our Swinging Gates are engineered for commercial and residential glass railing projects and integrate seamlessly with the GRS Glass Rail System or Wedge-Lock® Door Rail System. Top and bottom swing on heavy-duty ball-bearing pivots for smooth, durable operation.
Minimum required height: 40". Maximum gate size: 40" x 70".
The patented in-rail closing mechanism is concealed in the vertical post—eliminating large floor enclosures—returns the gate to closed position, and includes adjustable closing speed. Available by custom order; most orders fabricated within five business days at our Los Angeles, CA facility. Contact our Technical Sales Department for assistance.
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for more information.
Highlights: concealed closing mechanism, tempered glass compatibility, ball-bearing pivots, finger-pinch prevention, and custom sizing. For pricing, lead times, or to place a custom order for SKU 1202P2BSC, contact CRL Technical Sales or request a quote today.
Specifications
CAD Drawings - pdf
