CRL 1202 Brushed Stainless Post-Mounted Gate w/In-Rail Closer
CRL 1202 Brushed Stainless Post-Mounted Gate w/In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202P4BSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview

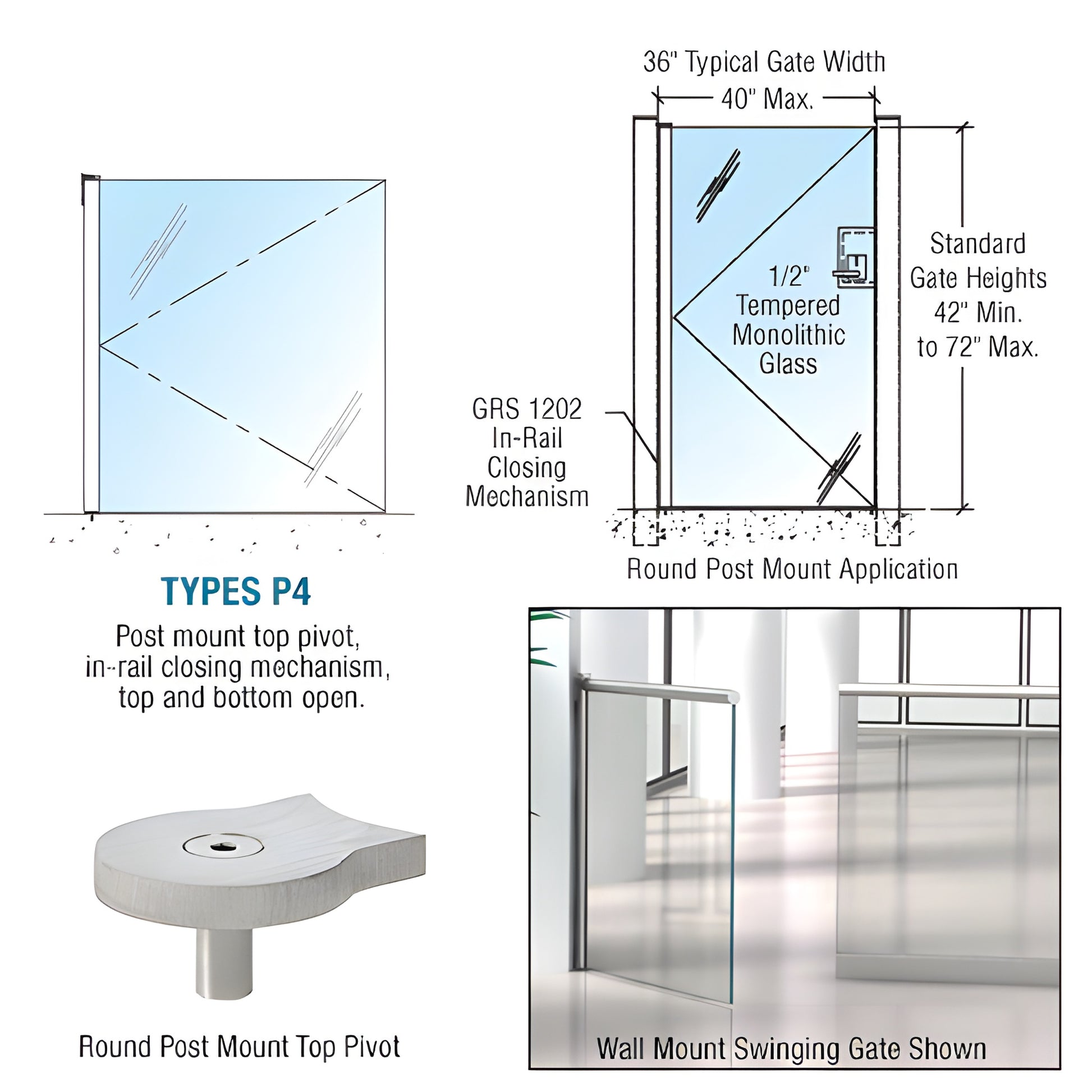

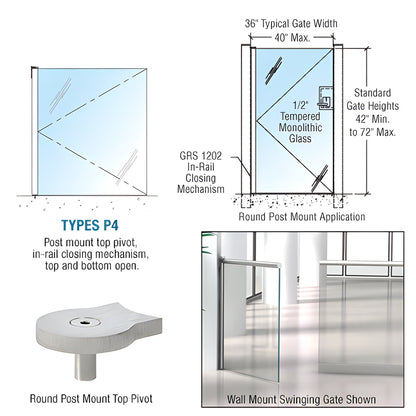

- Heavy-Duty Glass Gate with Optional Cap Rail (SKU: 1202P4BSC)
- Beautifully Designed and Functional in Operation
- Concealed In-Rail Closing Device Located in Vertical Post (adjustable closing speed)
- Round Vertical Edge Gate Pivot Post Prevents Finger Pinch
- For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
- Double-Acting (No Hold Open) Design for Smooth Two-Way Swing
- Optional Locks Available
These swinging glass gates are engineered for commercial and residential applications and integrate seamlessly with our GRS Glass Rail System and Wedge-Lock® Door Rail System. The gate top and bottom swing on heavy-duty ball bearing pivots for durable, low-friction operation. Compatible with GRS Cap Rails for a finished look.
Minimum height required 40". Maximum gate size 40" x 70".
Our unique In-Rail Closing Mechanism is concealed inside the vertical post, eliminating bulky floor enclosures. The closer reliably returns the gate to the closed position; closing speed is adjustable for site-specific tuning. NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department for assistance.
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.
Key differentiators: concealed in-rail closer, heavy-duty ball bearing pivots, round-edge pinch protection, and compatibility with 3/8" or 1/2" tempered glass—ideal for specifying a durable tempered glass swing gate for commercial or residential projects. Contact us to request a quote or place a custom order today.
Specifications
CAD Drawings - pdf
