Product Details
- For Use With 1900 Model Rim Panic and All Glass Gates With Mounting Pads
- Concealed Fastening for Added Security
- Non-Handed and Reversible
- UL Listed
1600 Series Lever Trim for 1900 Rim Panic Devices have a 2-1/4" (57 mm) escutcheon and mounts to our Glass Mounting Pads, allowing them to be mounted to 1/2" (12 mm) thick all glass gates. Available in both keyed and non-keyed models. The keyed models require CRL Small Format Interchangeable Cores and Mortise Cylinder Housings, which are sold separately.

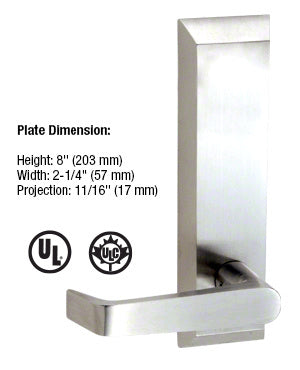

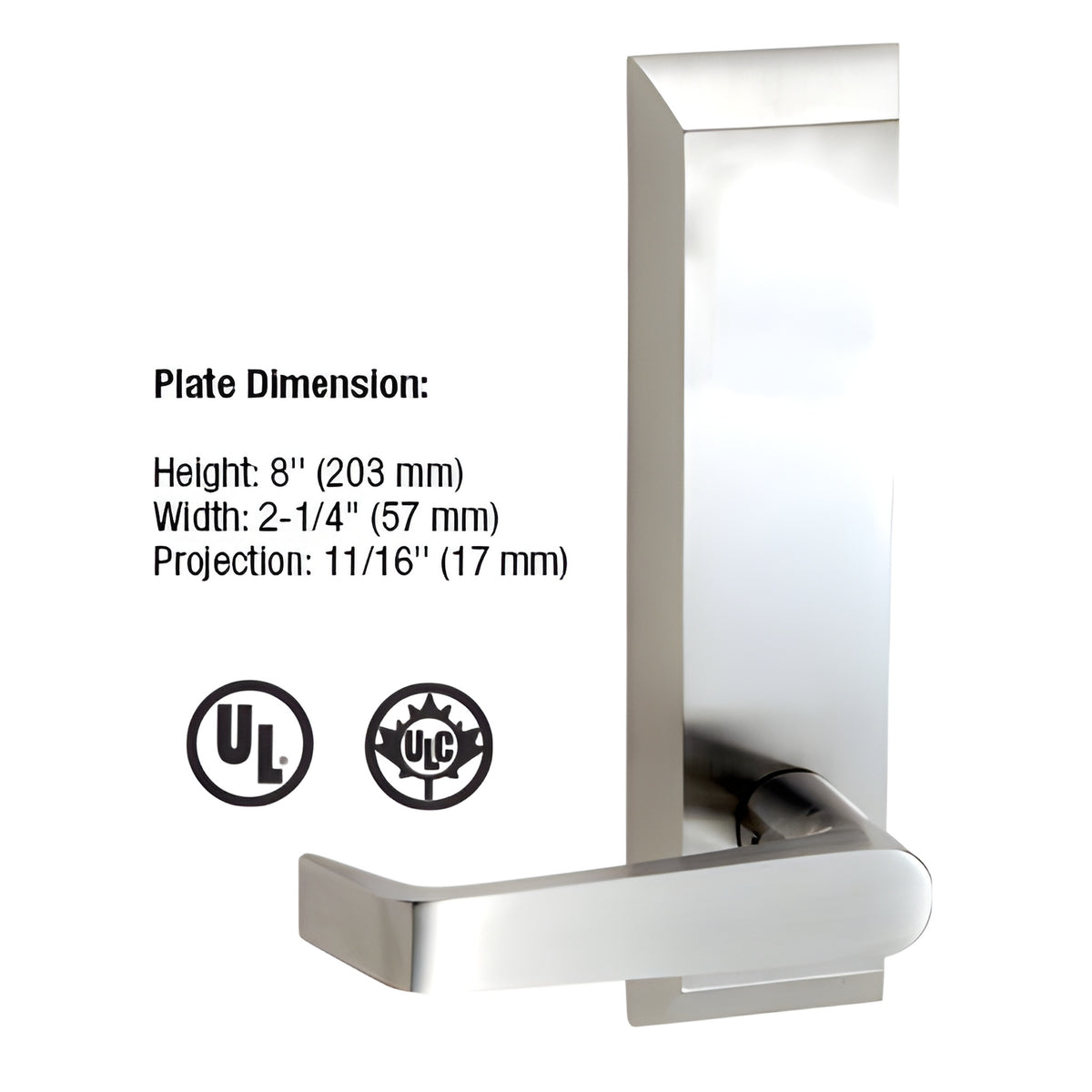

Plate Dimension
Height: 8" (203 mm)
Width: 2-1/4" (57 mm)
Projection: 11/16" (17 mm)
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
