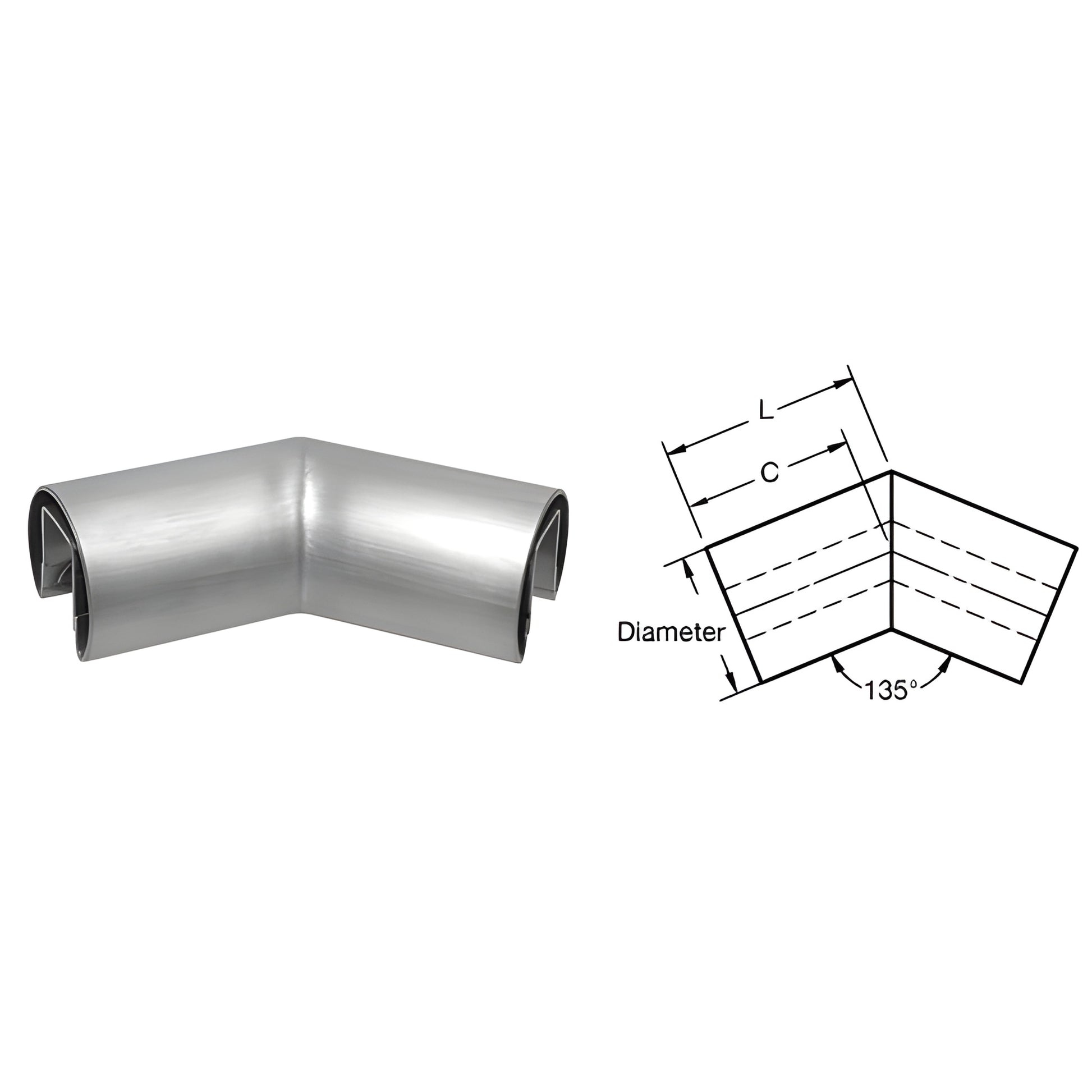

CRL Brushed Stainless 2.5" 135° Glass Railing Corner - Fits 1/2"/5/8"
Item# GR25H3BS
Shipping Weight: 1.005 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.005 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Angle
135
Diameter
2-1/2 in. (64 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
- Welded and Finished
- Ready-to-Install
- Four Architectural Finishes
- Requires Two Connector Sleeves (Not Included)
Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) glass, designed for hairline joint assemblies with straight lengths of CRL Cap Rail. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required for each corner. SKU: GR25H3BS.
Each horizontal corner is fabricated, finished, and individually packed. Stainless and brass corners are made from CRL Premium Cap Rail, welded and finished to match. Standard stainless alloy is 304; 316 is available by special order. Brass uses alloy 260 as standard. Contact CRL Technical Sales for special-order alloys or a quote.
Installation notes: Except for the GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. For GR15 Series or 5/8" (16 mm) glass use 95CBL Silicone and shims only.
Most shipping weights are approximate. If you need exact weight for shipping cost calculations, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For pricing, availability, or technical assistance, please contact CRL Technical Sales or request a quote for SKU GR25H3BS.
Cleaning & Maintenance
