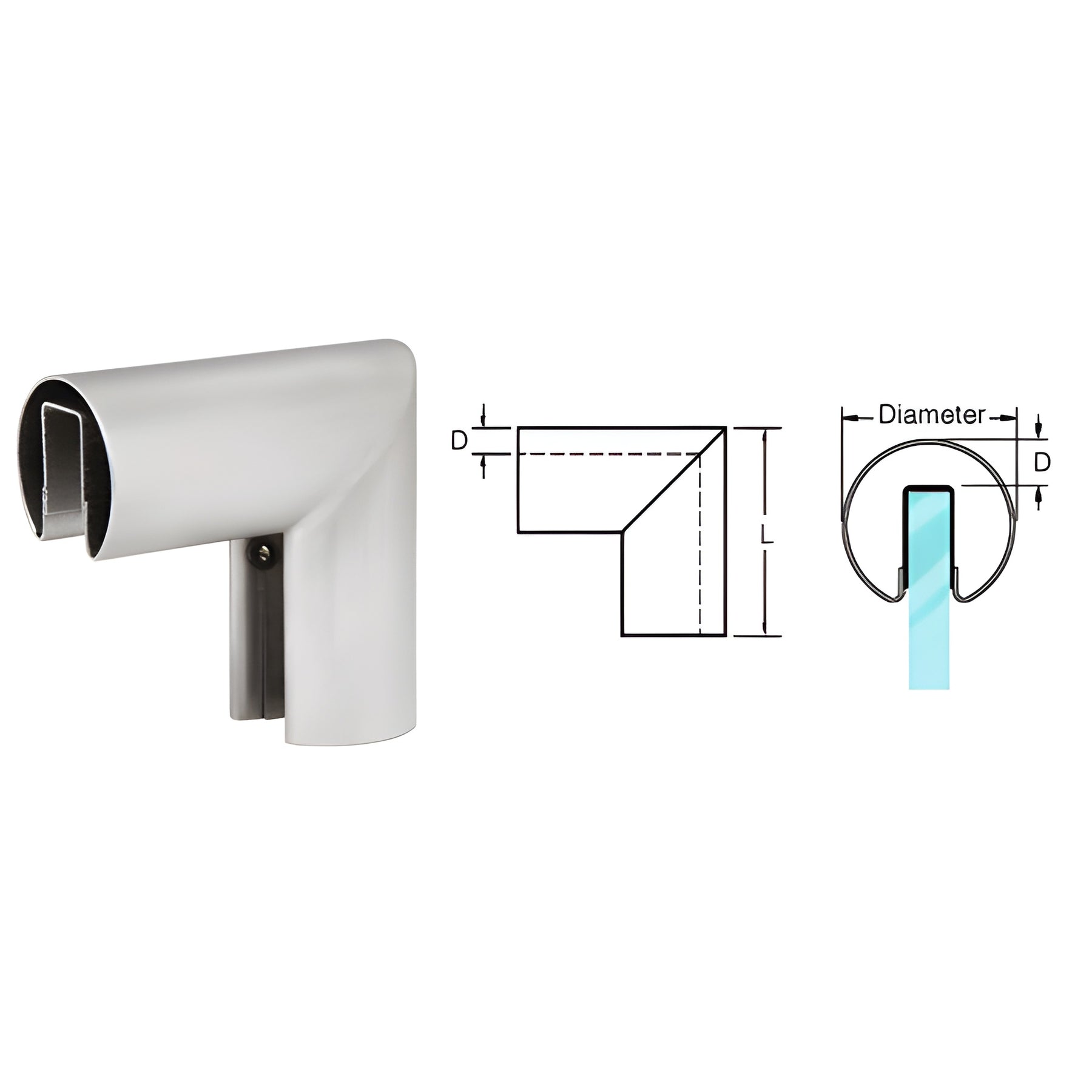

CRL Brushed Stainless 2" 90° Corner Bracket for 1/2–5/8" Glass
Item# GR20VBS
Shipping Weight: 7.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Angle
90
Diameter
2 in. (51 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
- Ready-to-Install
- Four architectural finishes
- Requires two connector sleeves (not included)
SKU: GR20VBS
Interior slip-fit vertical corners for 1/2" (12 mm) or 5/8" (16 mm) glass — designed for hairline joint assemblies with straight lengths of CRL Cap Rail. These corners provide a clean, finished connection for glass railing and shower panel installations. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required for each corner (not included).
Each vertical corner is individually fabricated, finished, and packed. Stainless and brass corners are made from CRL Premium Cap Rail and are welded and finished to match the cap rail. Standard stainless alloy: 304 (316 available by special order). Standard brass alloy: 260. These welded, matched finishes are a differentiator for consistent appearance across installations.
Please contact CRL Technical Sales for product options, pricing, or a quote.
Installation note: Except for GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. For GR15 Series corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only.
Product warning: This dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
Need help specifying GR20VBS for your project? Contact CRL Technical Sales for assistance or to request a quote.
