- Bumped-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Three Diameters and Four Architectural Finishes
- Connect to Fabricated Corners and End Caps
- For Stainless, Alloy 304 is Standard; 316 Alloy Available on Special Order
- For Brass, Alloy 260 is Standard
- Use Sleeve No. GR20CSS
All

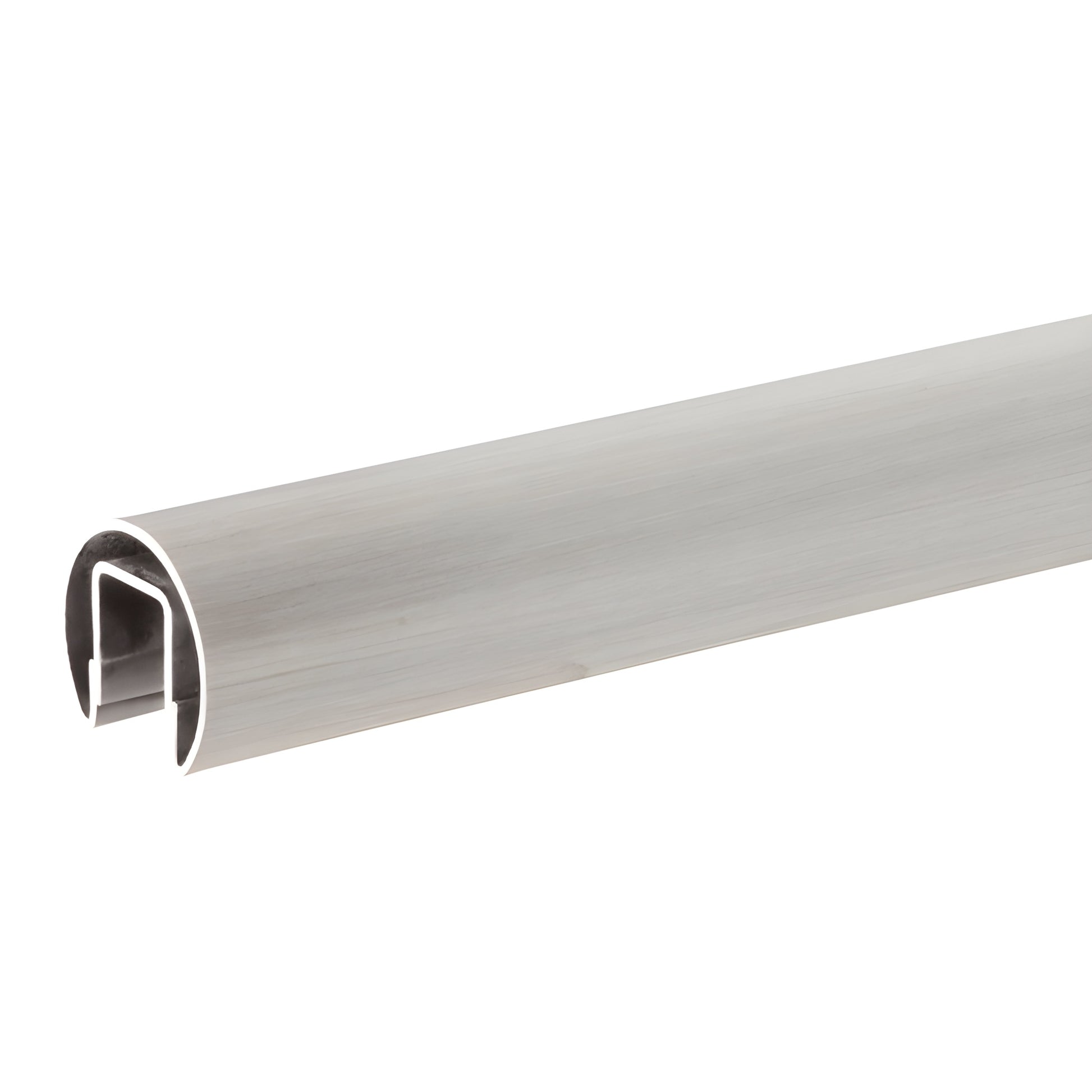

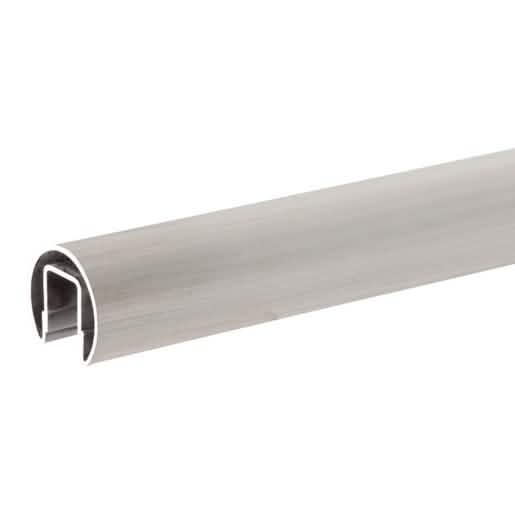

CRL Premium Cap Railings
are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use our Cat. No. 32629 Metal Contact Cement to achieve a secure and permanent bond at all connections.
Use Connector Sleeves to connect Cap Rails. Stainless alloy 304 is standard; Stainless alloy 316 is available on special order. For Brass, alloy 260 is standard. Please contact CRL Railing Technical Sales for more information or for a quote.
NOTE
When using GR207, GR257, and GR307 Series Cap Rails, Cat. No. GR7PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass.

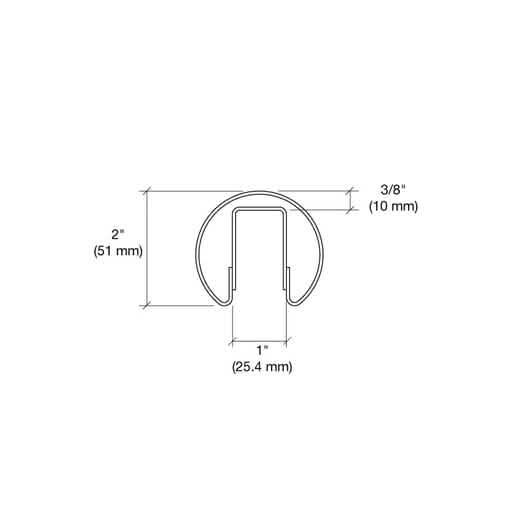

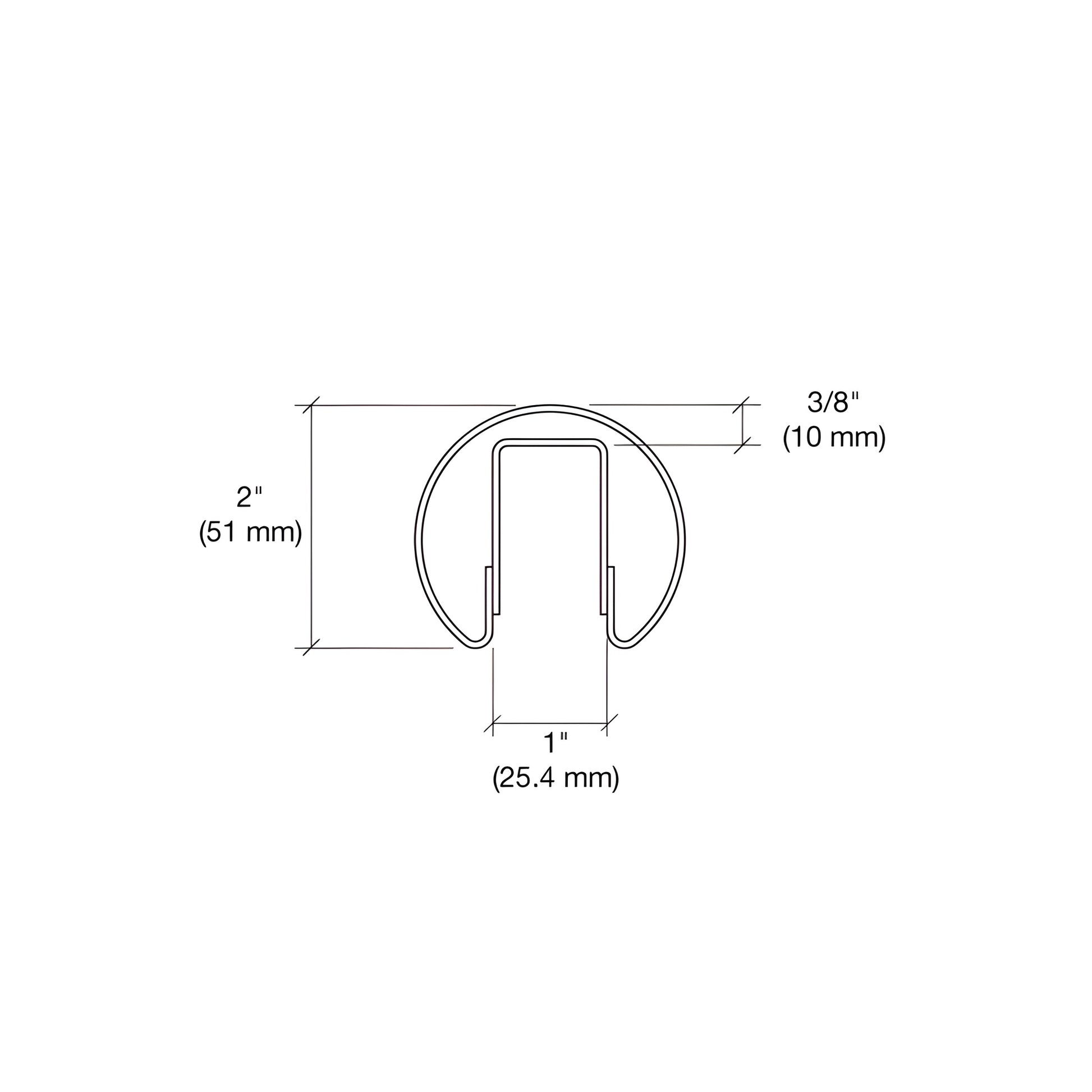

*This dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
